Yamaha Scorpio - Transmission Removal; Shift Fork Shift Cam Inspection

4 - 64
ENG
TRANSMISSION

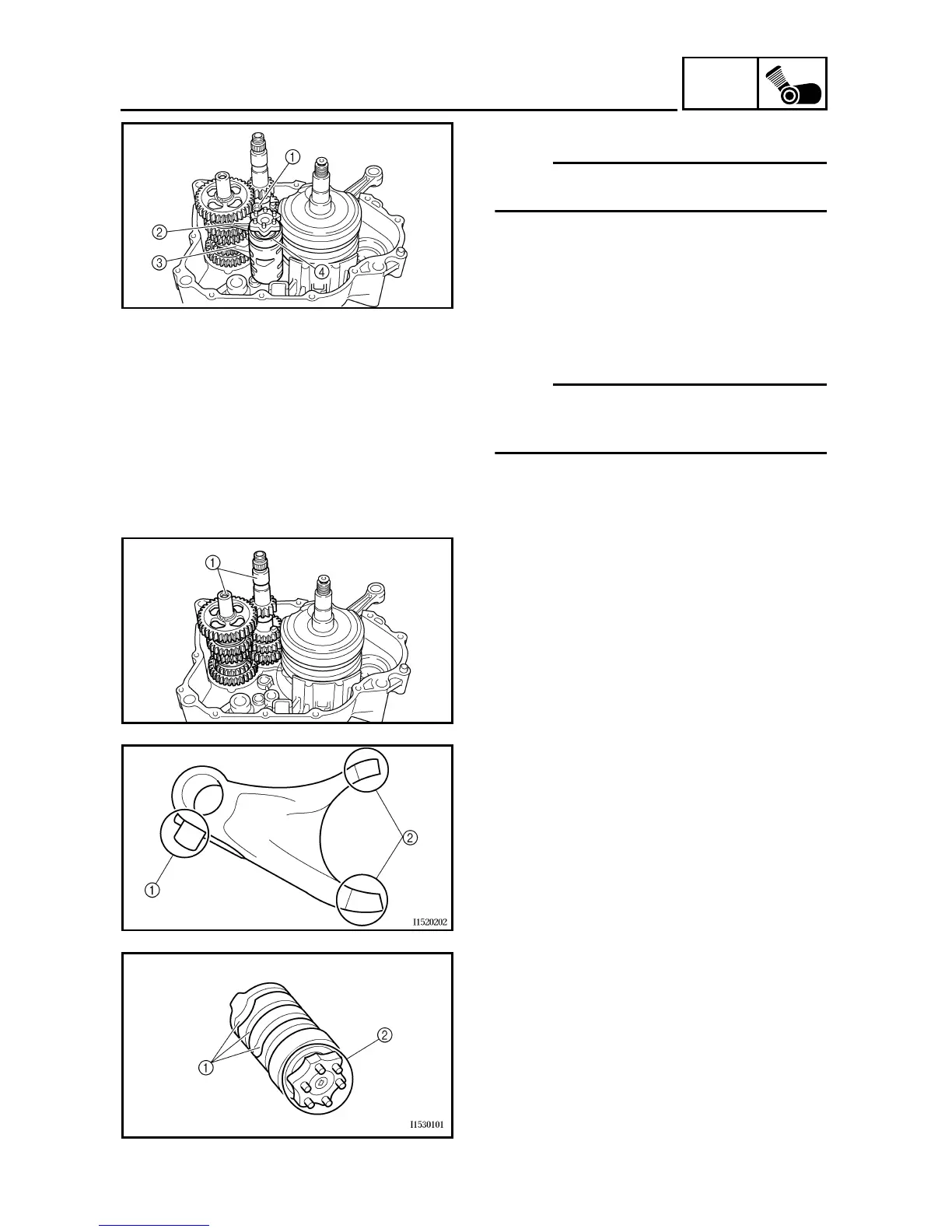

TRANSMISSION REMOVAL
NOTE:
Prior to remove the transmission, separate the
crankcase.
1.Remove:
●
Dowel pin
●
Guide bar
1
●
Shift fork “R”
2
●
Shift fork “C”
●
Shift fork “L”
3
●
Shift drum assembly
4
NOTE:
Note the position of each part. Pay particular
attention to the location and direction of shift
forks.
2.Remove:
●
Transmission gear assembly
1
T402190
SHIFT FORK SHIFT CAM INSPECTION
1.Inspect:
●
Shift fork cam follower
1
●
Shift fork pawl
2
Scoring/bends/wear/damage
→
Replace.
2.Inspect:
●
Shift drum grooves
1
Wear/damage/scratches
→
Replace.
●
Shift drum segment
2
Damage/wear
→
Replace.
