Yamaha Scorpio - Left Footrest Bracket; Drive Chain

4 - 2
ENG

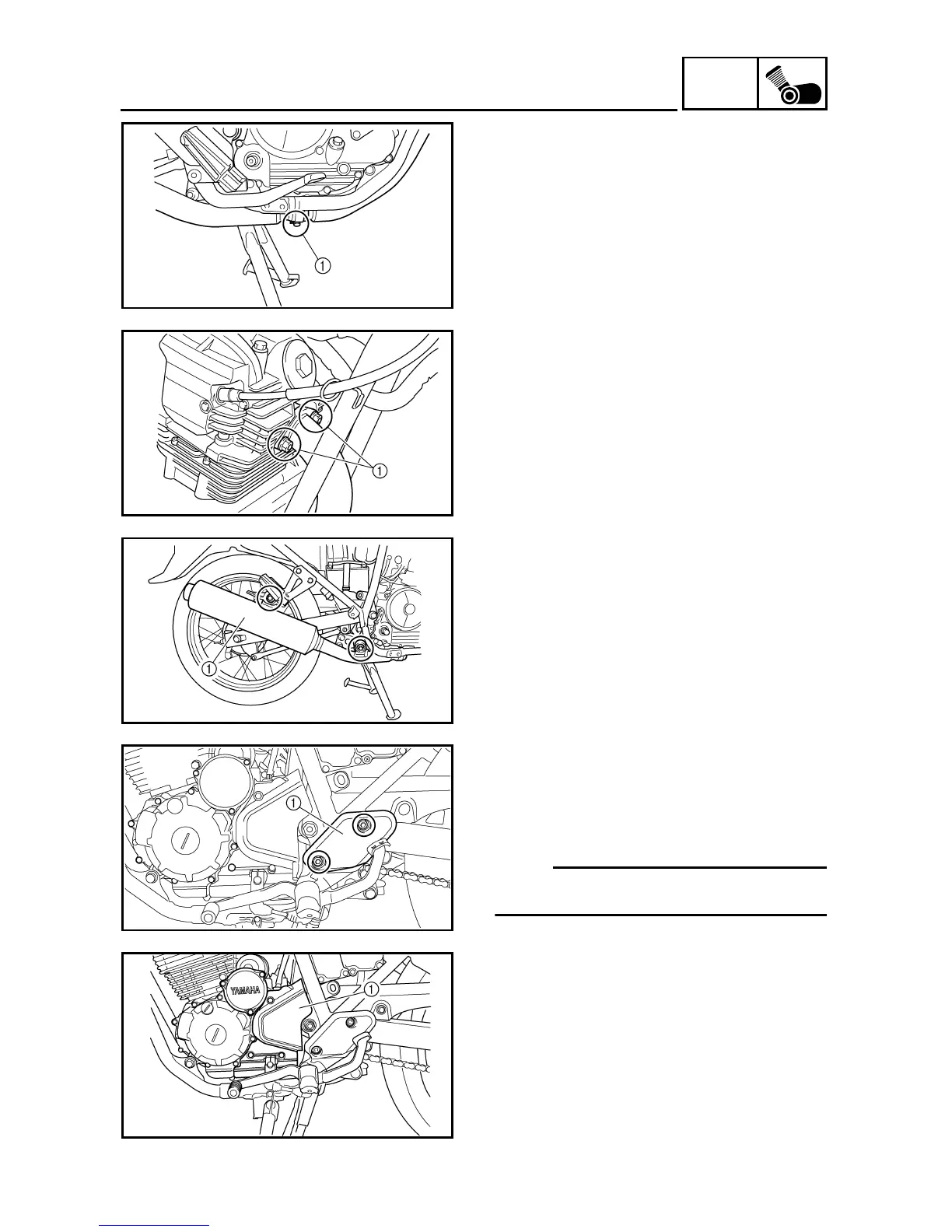

ENGINE REMOVAL
2.Loosen:
●
Bolt
1
(exhaust pipe joint)
3.Remove:
●
Nuts
1
(exhaust pipe)
4.Remove:
●
Exhaust pipe assembly
5.Remove:
●
Bolts (muffler)
●
Nut (muffler)
●
Muffler
1
LEFT FOOTREST BRACKET
1.Remove:
●
Bolt (shift pedal)
●
Bolts (left footrest bracket)
●
Left footrest bracket
1
NOTE:
When removing shift pedal, shift the transmis-
sion into 1st gear.
DRIVE CHAIN
1.Remove:
●
Drive chain case
1
