6 - 32
CHAS
STEERING HEAD AND HANDLEBAR
STEERING HEAD AND HANDLEBAR

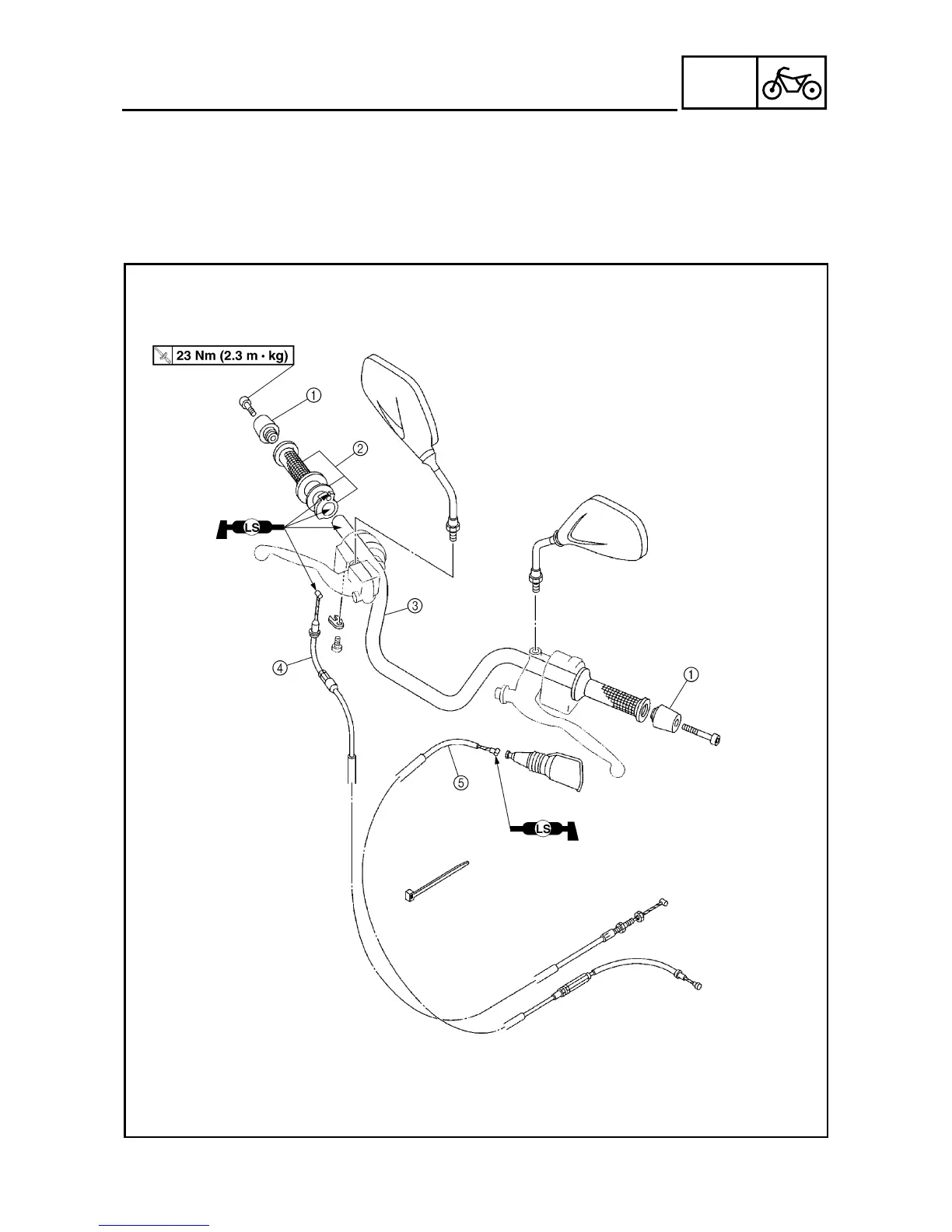

HANDLEBAR
1
Grip end
2
Throttle grip
3
Handlebar
4
Throttle cable
5
Clutch cable
