Yamaha Scorpio - Handlebar Removal

6 - 34
CHAS
STEERING HEAD AND HANDLEBAR

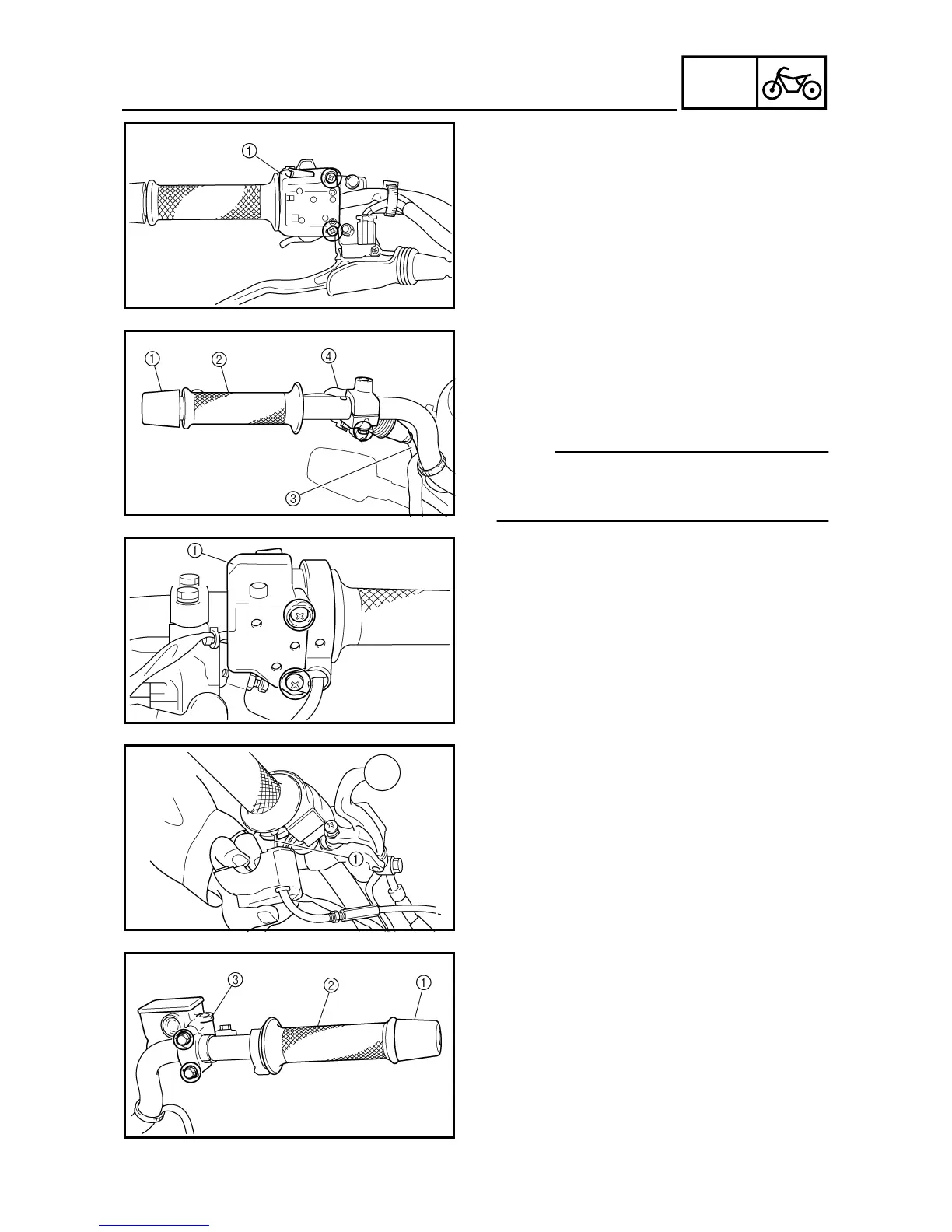

HANDLEBAR REMOVAL
1.Remove:
●
Handlebar switch
1
(left)
2.Remove:
●
Grip end
1
(left)
●
Handlebar grip
2
(left)
●
Clutch cable
3
●
Clutch lever holder
4
NOTE:
Before removing the clutch lever holder
4
,
remove the clutch switch leads and clutch
cable.
3.Remove:
●
Handlebar switch
1
(right)
4.Remove:
●
Throttle cable
1
5.Remove:
●
Grip end
1
(right)
●
Throttle grip
2
●
Brake lever holder
3
