Yamaha Scorpio - Chapter 5. Carburetion; Carburetor

5 - 1
CARB

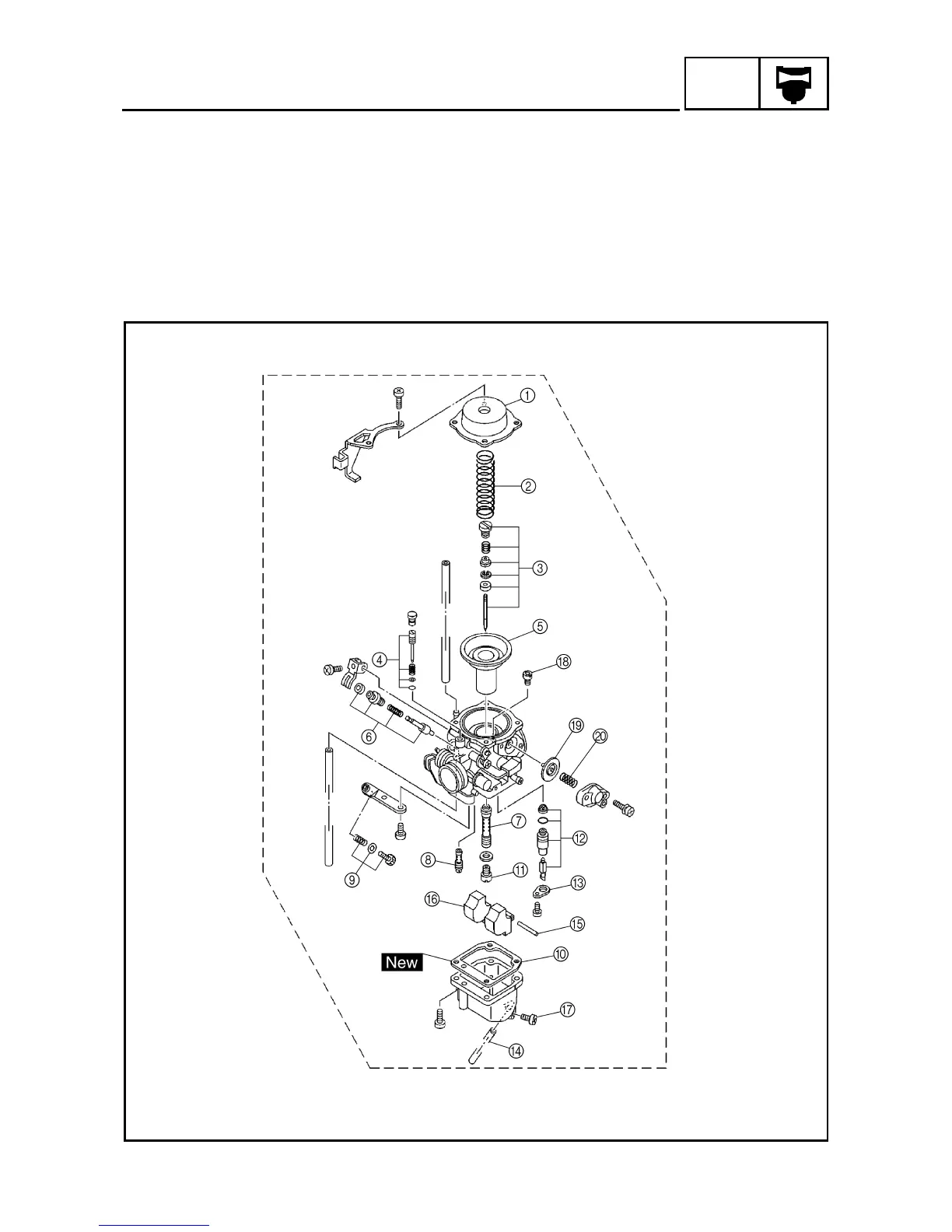

CARBURETOR
CARBURETION
CARBURETOR
1
Vacuum chamber cover
2
Piston valve spring
3
Jet needle set
4
Pilot screw set
5
Piston valve
6
Starter plunger assembly
7
Needle jet
8
Pilot jet
9
Throttle stop screw set
0
Gasket
A
Main jet
B
Needle valve assembly
C
Needle valve holder
D
Drain hose
E
Float pivot pin
F
Float
G
Drain screw
H
Pilot air jet
I
Coasting enricher
J
Coasting enricher spring
