Yamaha Scorpio - Engine; Engine Installation; Engine Assembly; Starter Motor

4 - 5
ENG
ENGINE INSTALLATION
ENGINE INSTALLATION
ENGINE ASSEMBLY
WARNING
Securely support the motorcycle so there
is no danger of it falling over when install-
ing engine.
1.Install:
●
Engine assembly
●
Rear lower mounting bolt
●
Rear upper mounting bolt
2.Install:
●
Front mounting bolt
3.Install:
●
Engine mounting bracket
●
Bolt (engine mounting bracket-frame)
●
Bolt (engine mounting bracket-engine)
STARTER MOTOR
1.Install:
●
Starter motor
Refer to the “ELECTRIC STARTING SYS-
TEM” in CHAPTER 7.
T
R
.
.
Rear lower mounting bolt:
79 Nm (7.9 m
•
kg)
Rear upper mounting bolt:
58 Nm (5.8 m
•
kg)
T
R
.
.
Front mounting bolt:
58 Nm (5.8 m
•
kg)
T
R
.
.
Bolt (engine mounting bracket-
frame):
30 Nm (3.0 m
•
kg)
Bolt (engine mounting bracket-
engine):
58 Nm (5.8 m
•
kg)

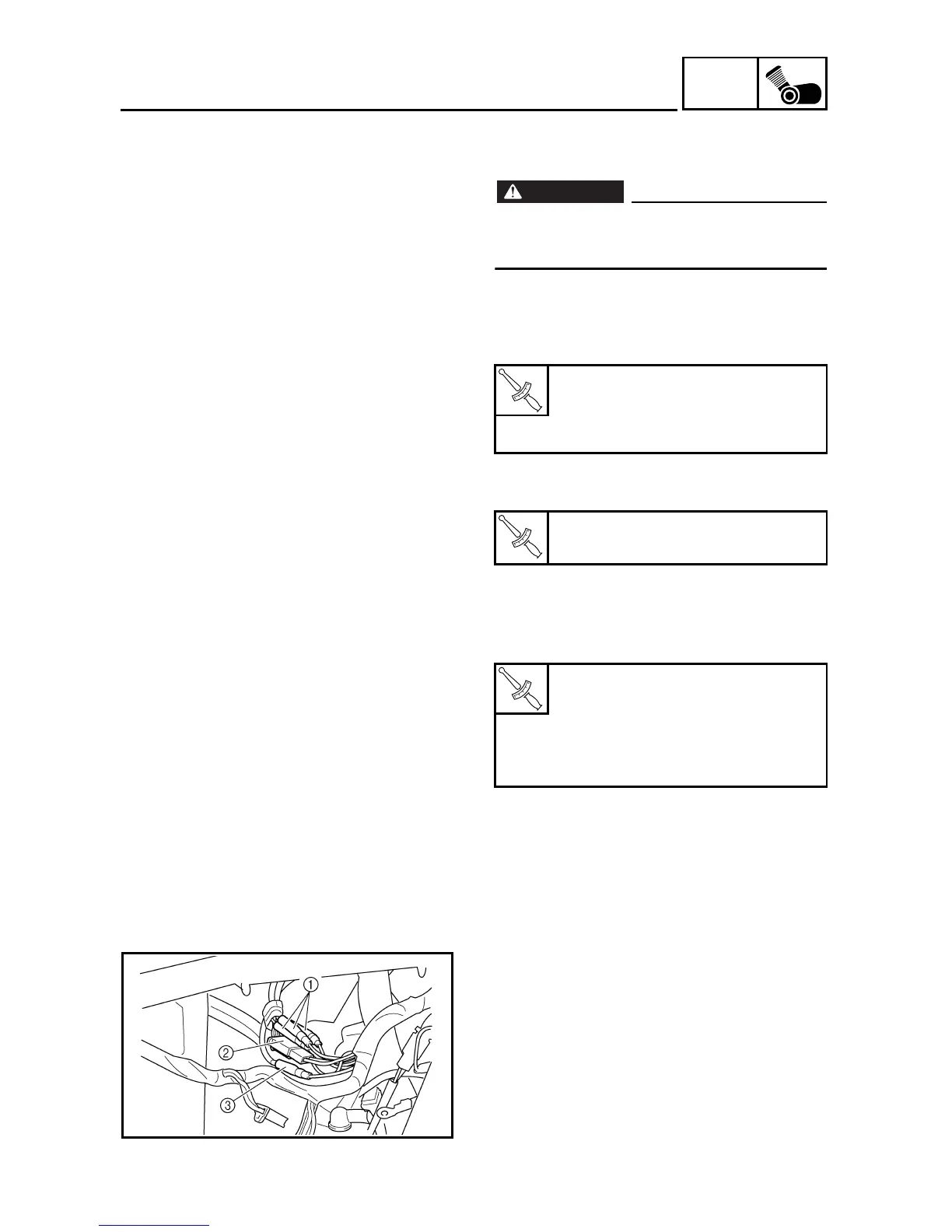

WIRE AND CABLES
1.Install:
●
Generator leads
1
●
Generator lead coupler
2
●
Neutral switch lead
3
