Yamaha Scorpio - Wire, Cable and Tube

4 - 3
ENG

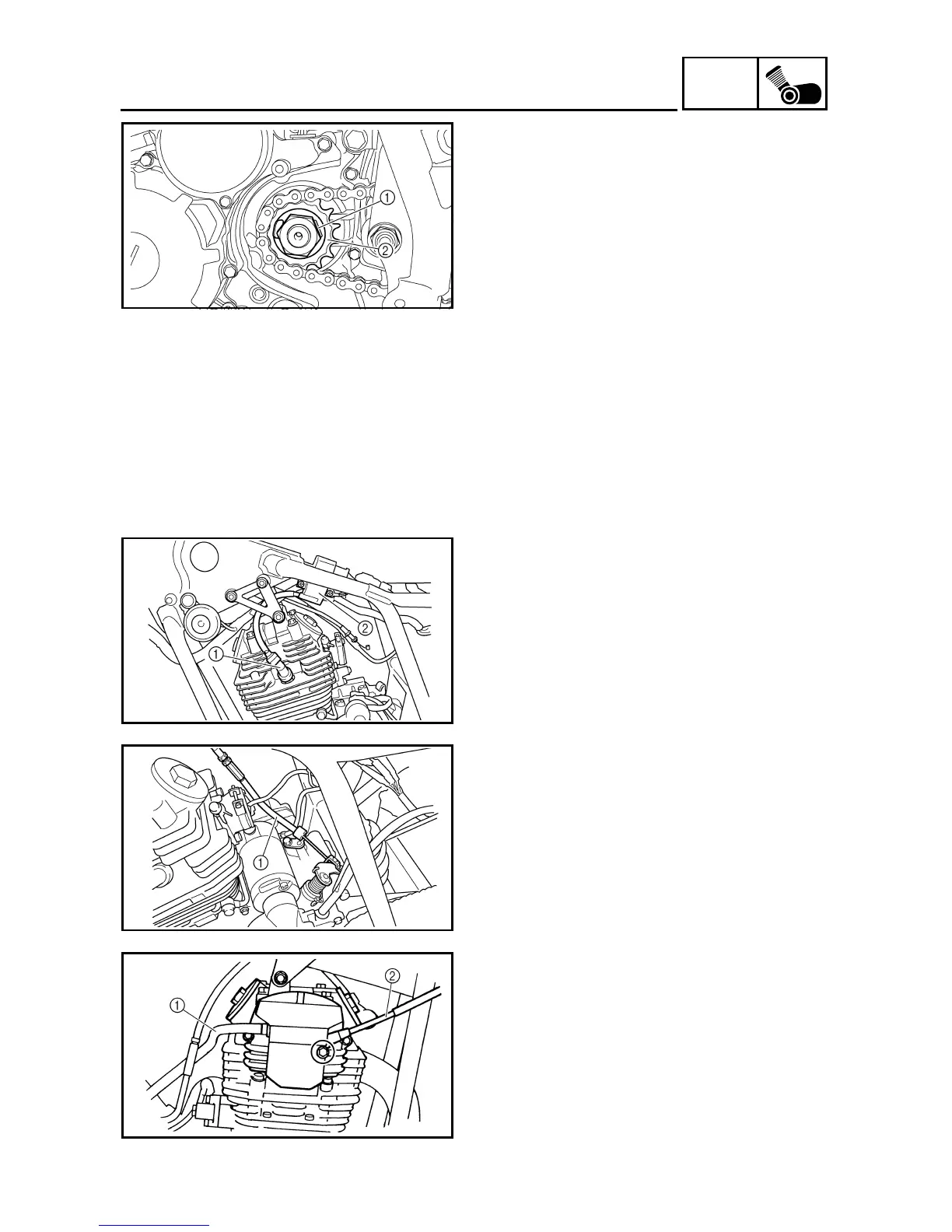

ENGINE REMOVAL
2.Remove:
●
Lock washer
1
●
Drive sprocket
2
3.Loosen:
●
Rear wheel axle nut
●
Locknuts
●
Drive chain adjuster nuts
CARBURETOR
1.Remove:
●
Carburetor
Refer to the “CARBURETOR” section in
CHAPTER 5.
WIRE, CABLE AND TUBE
1.Remove:
●
Spark plug lead cap
1
●
Ignition coil
2
2.Straighten:
●
Stopper
3.Remove:
●
Clutch cable
1
4.Remove:
●
Breather hose
1
●
Tachometer cable
2
