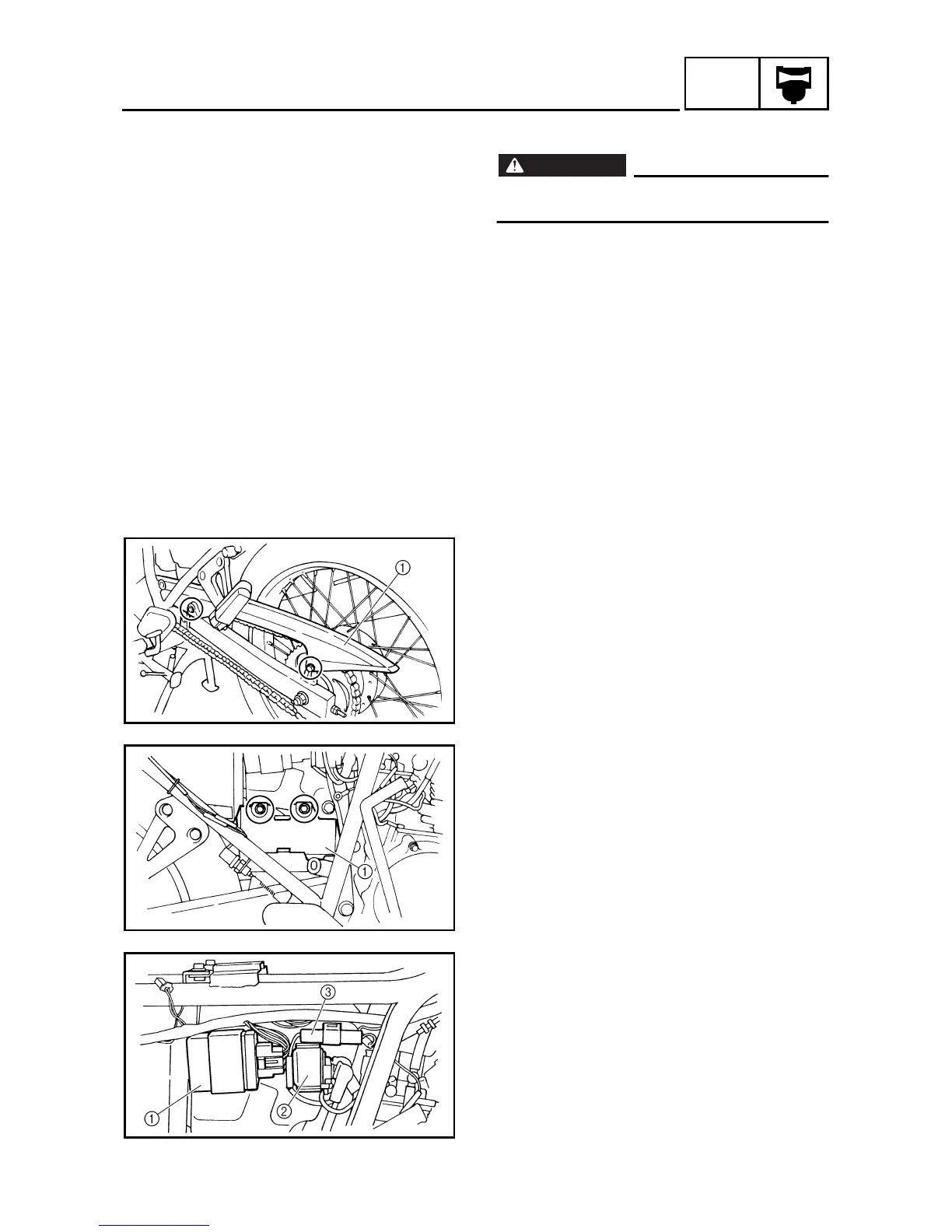

Yamaha Scorpio - CARBURETOR REMOVAL

5 - 2
CARB
CARBURETOR
REMOVAL
WARNING
Gasoline is highly flammable.
Avoid spilling fuel on the hot engine.
1.Remove:
●
Fuel tank
Refer to the “FUEL TANK” section in
CHAPTER 3.
2.Remove:
●
Battery
Refer to the “BATTERY INSPECTION” sec-
tion in CHAPTER 3.
3.Remove:
●
Drive chain guard
1
4.Remove:
●
Battery case
1
5.Remove:
●
CDI unit
1
●
Starter relay
2
●
Fuse
3
