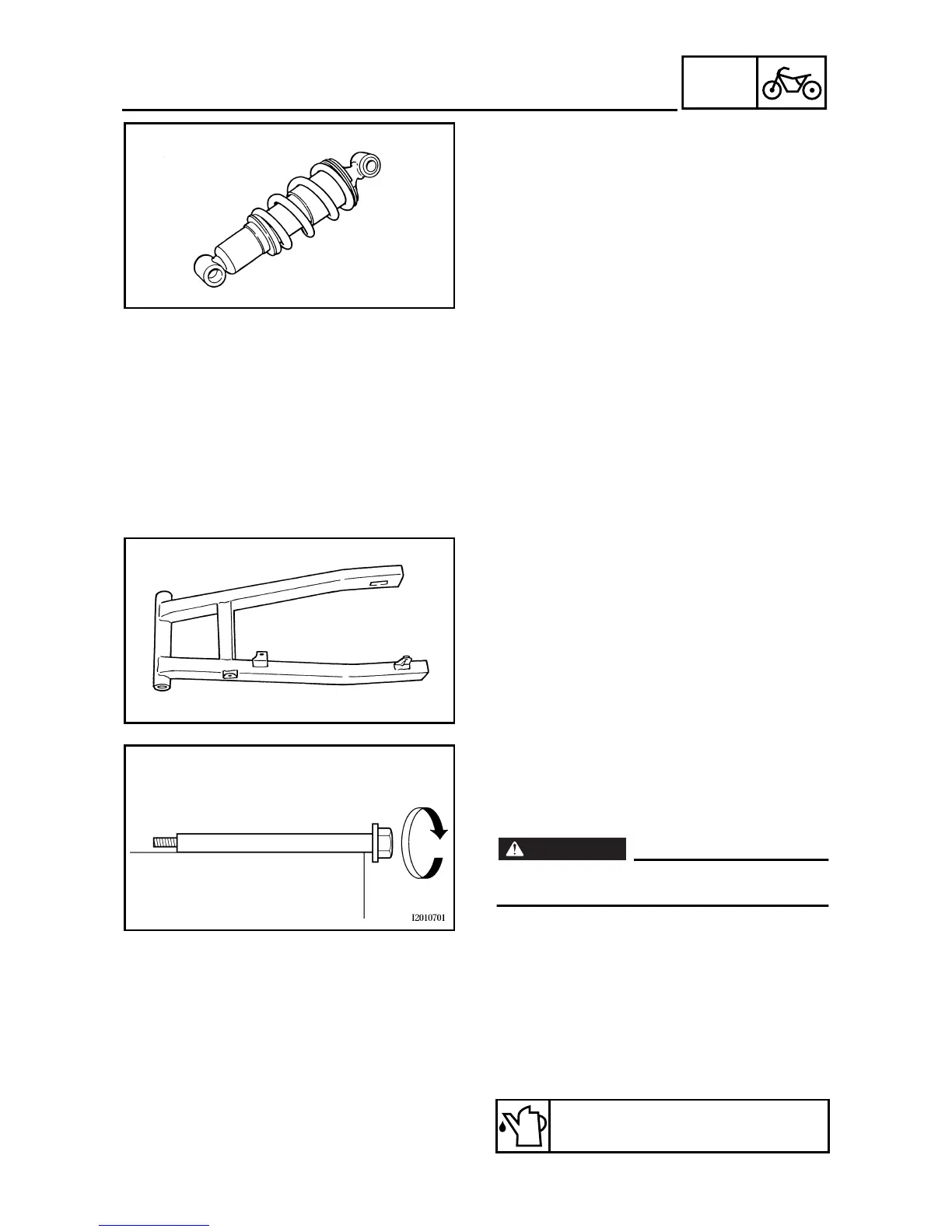

Yamaha Scorpio - Rear Shock Absorber Inspection; Swingarm Inspection

6 - 43
CHAS
REAR SHOCK ABSORBER AND SWINGARM
EAS00696
REAR SHOCK ABSORBER INSPECTION
1.Inspect:
●
Rear shock absorber rod
Bends/damage
→
Replace the rear shock
absorber assembly.
●
Rear shock absorber
Gas leaks/oil leaks
→
replace the rear shock
absorber assembly.
●
Spring
Damage/wear
→
Replace the rear shock
absorber assembly.
●
Bushings
Damage/wear
→
Replace.
●
Dust seals
Damage/wear
→
Replace.
●
Bolts
Bends/damage/wear
→
Replace.
EAS00707
SWINGARM INSPECTION
1.Inspect:
●
Swingarm
Bends/cracks/damage
→
Replace.
2.Inspect:
●
Pivot shaft
Roll the pivot shaft on a flat surface.
Bends
→
Replace.
WARNING
Do not attempt to straighten a bent pivot
shaft.
3.Wash:
●
Pivot shaft
●
Dust covers
●
Collars
●
Washers
●
Bearings
●
Bushes
Recommended cleaning solvent
Kerosine
