Yamaha Scorpio - Rear Wheel Removal; Rear Wheel Disassembly; Rear Wheel Inspection

6 - 8
CHAS
REAR WHEEL AND REAR BRAKE

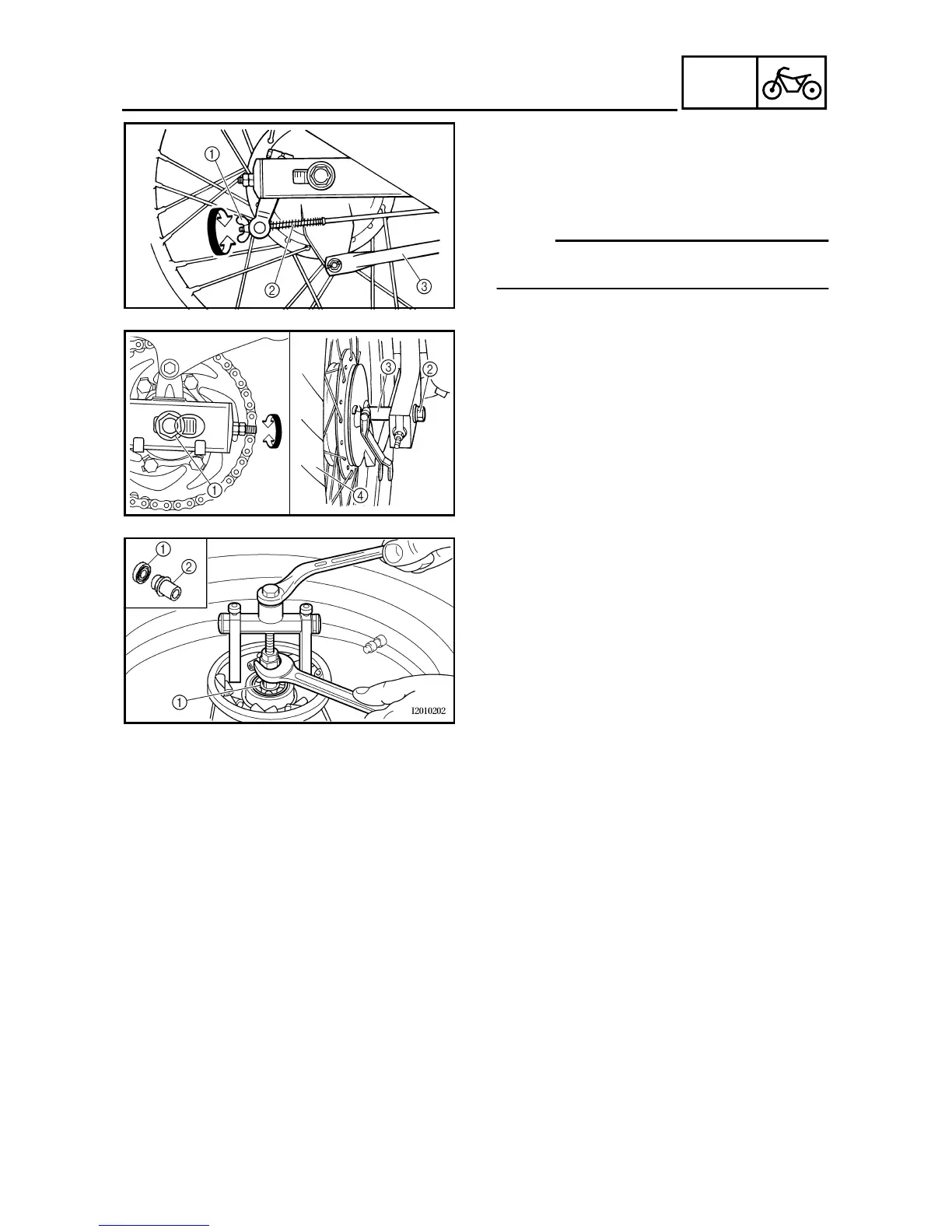

REAR WHEEL REMOVAL
1.Remove:
●
Adjuster
1
●
Brake rod
2
●
Tension bar
3
NOTE:
Depress the brake pedal to remove the brake
rod.
2.Loosen:
●
Rear wheel axle nut
1
●
Locknuts
●
Drive chain adjuster nuts
3.Remove:
●
Rear wheel axle nut
1
●
Rear wheel axle
2
●
Washers
●
Spacer
3
●
Rear wheel
4
4.Remove:
●
Brake shoe plate
T******
REAR WHEEL DISASSEMBLY
1.Remove:
●
Bearings
1
●
Spacer
2
Refer to the “FRONT WHEEL AND BRAKE
DISC” section.
T701020
REAR WHEEL INSPECTION
1.Inspect:
●
Rear wheel axle
●
Rear wheel
●
Rear wheel bearings
●
Oil seals
Refer to the “FRONT WHEEL AND BRAKE
DISC” section.
2.Check:
●
Spokes
Refer to the “FRONT WHEEL AND BRAKE
DISC” section.
3.Measure:
●
Rear wheel runout
Refer to the “FRONT WHEEL AND BRAKE
DISC” section.
