Yamaha Scorpio - CARBURETOR DISASSEMBLY

5 - 3
CARB

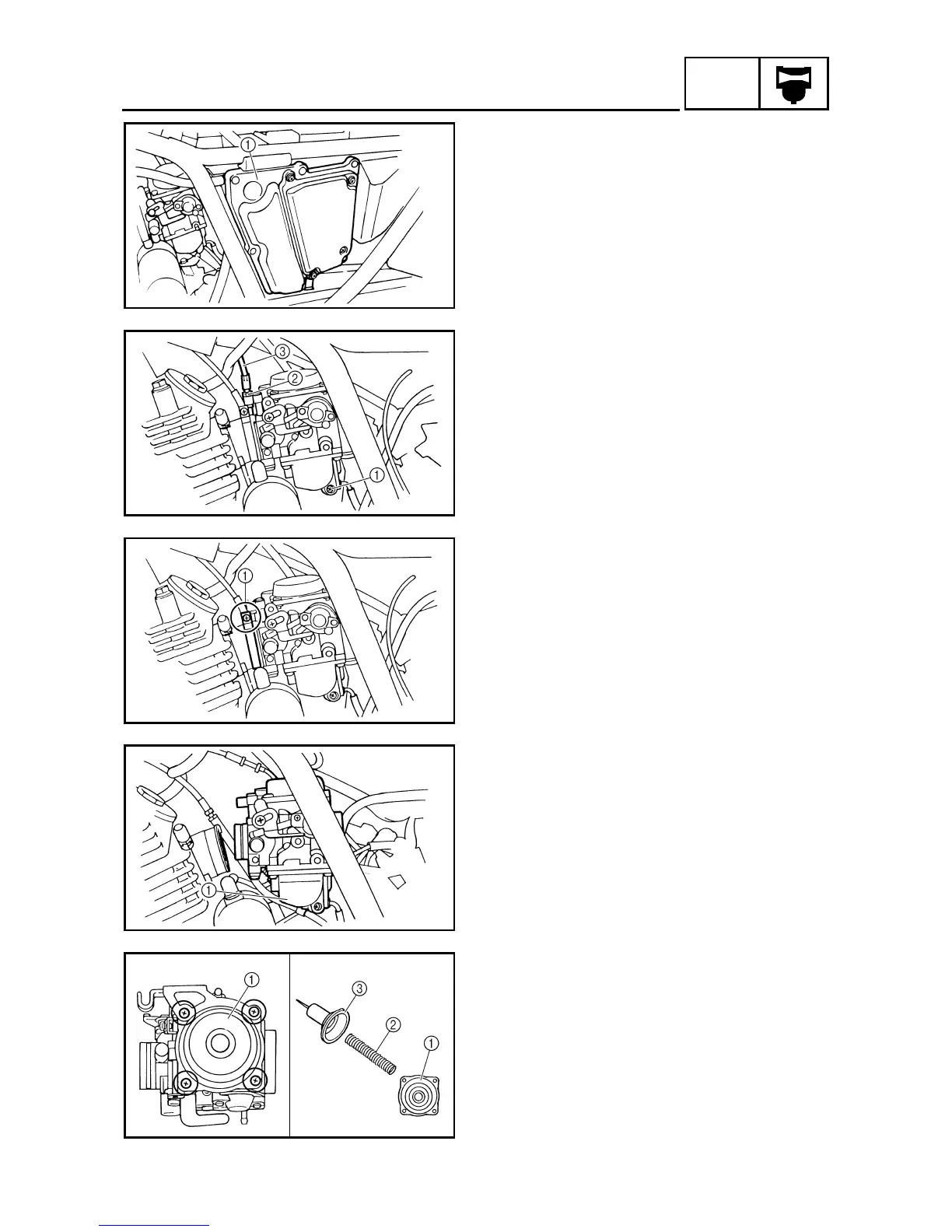

6.Remove:
●
Air filter case
1
7.Drain:
●
Loosen the drain screw
1
and drain the gas-
oline
8.Loosen:
●
Lock nut
2
(throttle cable)
9.Remove:
●
Throttle cable
3
10.Loosen:
●
Screw
1
(carburetor joint)
11.Remove:
●
Carburetor
1
DISASSEMBLY
1.Remove:
●
Vacuum chamber cover
1
2.Remove:
●
Piston valve spring
2
●
Piston valve
3
CARBURETOR
