5 - 4
CARB
CARBURETOR

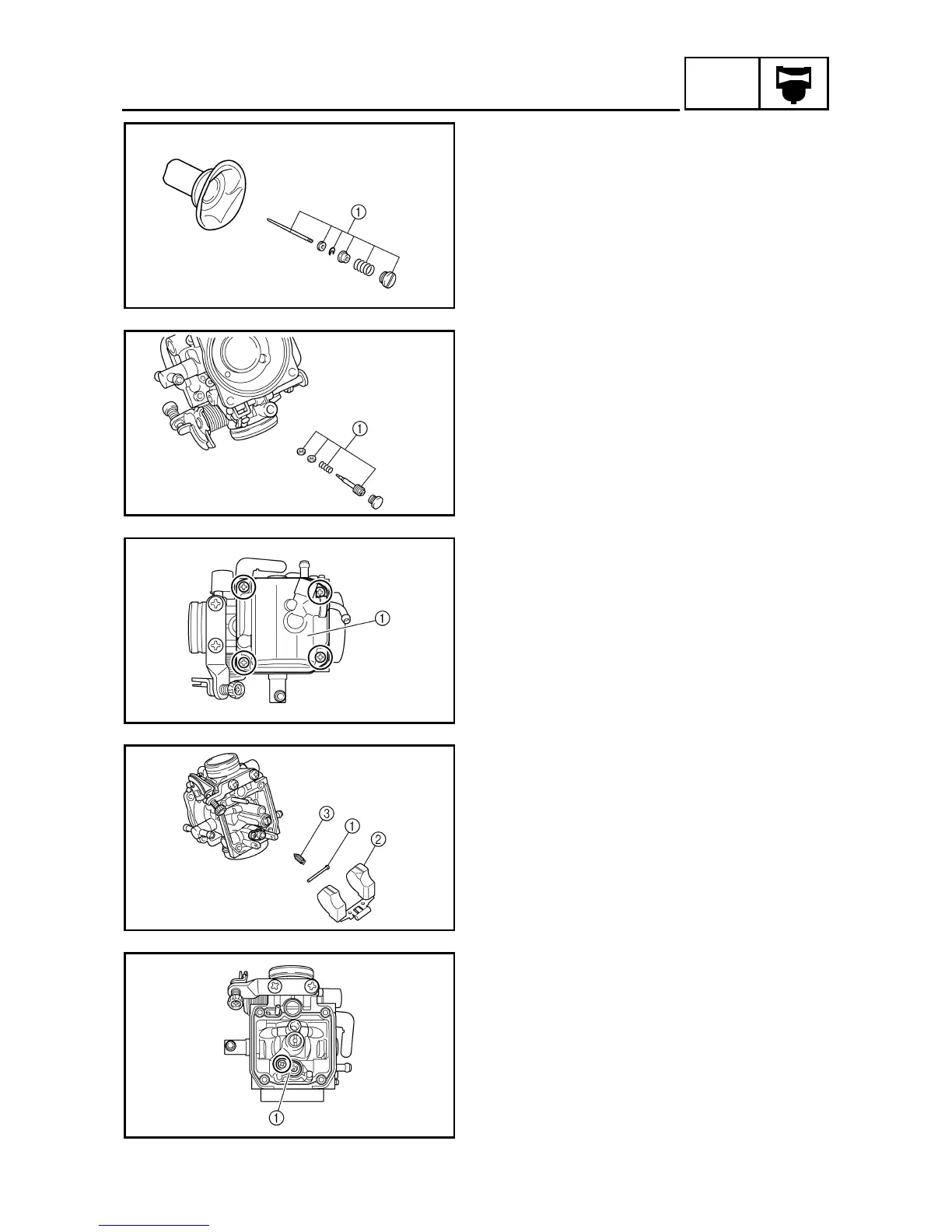

3.Remove:
●
Jet needle set
1
4.Remove:
●
Pilot screw set
1
5.Remove:
●
Float chamber cover
1
●
Gasket
6.Remove:
●
Float pivot pin
1
●
Float
2
●
Needle valve
3
7.Remove:
●
Needle valve holder
1
