Yamaha Scorpio - Front Fork Removal; Front Fork Disassembly

6 - 25
CHAS
FRONT FORK
EAS00649
FRONT FORK REMOVAL
The following procedure applies to both of the
front fork legs.
1.Stand the motorcycle on a level surface.
WARNING
Securely support the motorcycle so that
there is no danger of it falling over.
2.Remove:
●
Front wheel
Refer to the “FRONT WHEEL AND BRAKE
DISC” section.

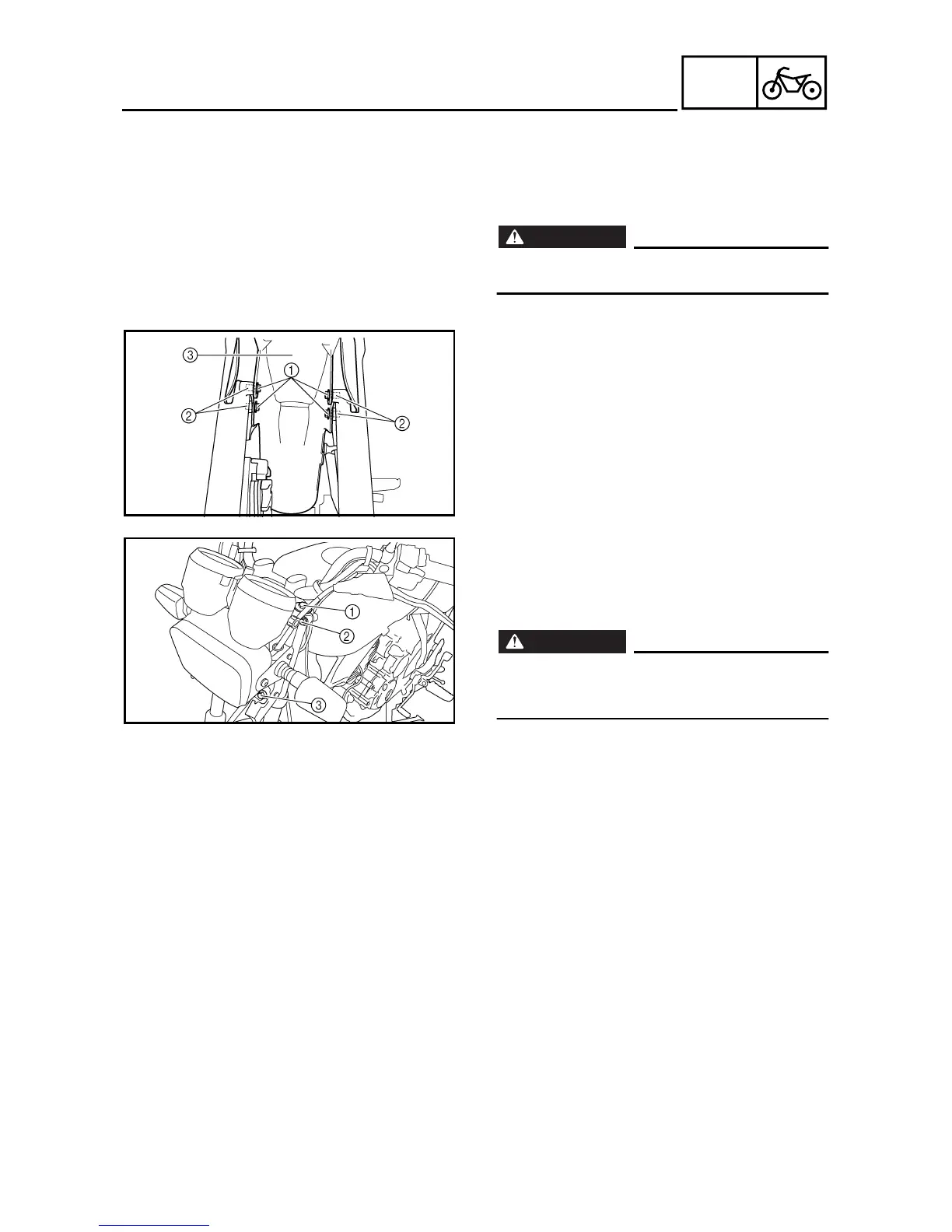

3.Remove:
●
Bolts
1
(front fender)
●
Collars
2
●
Front fender
3
4.Loosen:
●
Cap bolt
1
●
Handle crown pinch bolt
2
●
Lower bracket pinch bolt
3
WARNING
Before loosening the upper and lower
bracket pinch bolts, support the front fork
leg.
5.Remove:
●
Front fork leg
FRONT FORK DISASSEMBLY
The following procedure applies to both of the
front fork legs.
1.Remove:
●
Cap bolt
●
O-ring
●
Spacer
●
Spring seat
●
Fork spring
