Yamaha Scorpio - Fuse Inspection

3 - 31
INSP
ADJ
FUSE INSPECTION
FUSE INSPECTION

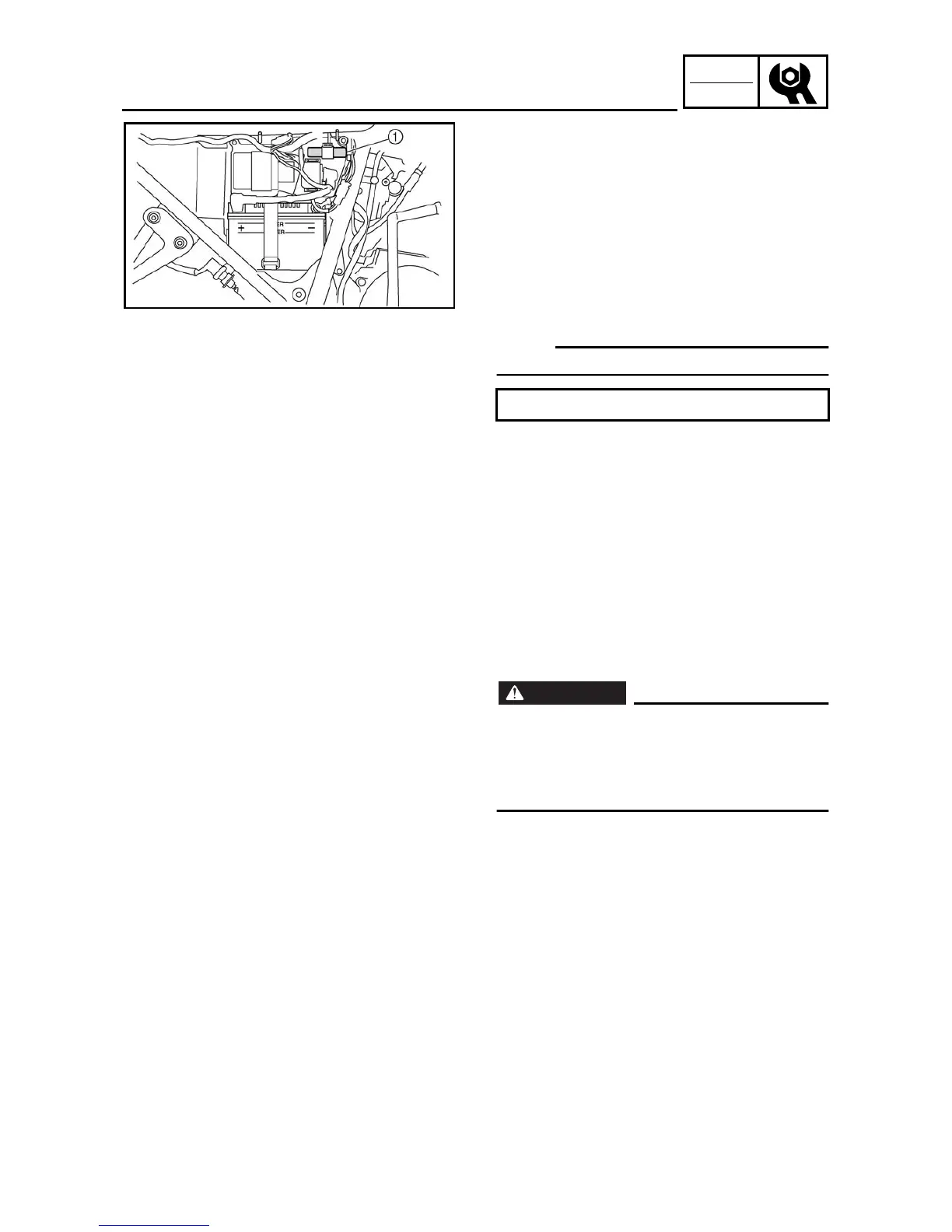

1.Remove:
●
Side cover (right)
Refer to the “SIDE COVER” section.
2.Remove:
●
Fuse
1
3.Inspect:
●
Fuse
Defective
→
Replace.
Blown fuse (new)
→
Inspect circuit.
N
OTE:
Install new fuse of proper amperage.
4.Replace:
●
Blown fuse
*****************************************************
Blown fuse replacement steps:
●
Turn off ignition and the circuit.
●
Install a new fuse of proper amperage.
●
Turn on switches to verify operation of elec-
trical device.
●
If fuse blows immediately again check circuit
in question.
*****************************************************
WARNING
Do not use fuse of higher amperage rating
than recommended. Extensive electrical
system damage and fire could result from
substitution of a fuse of improper amper-
age.
5.Install:
●
Fuse
Amperage: 10 A
