Yamaha Scorpio - Brake Shoe Inspection; Brake Light Switch Adjustment

3 - 21
INSP
ADJ

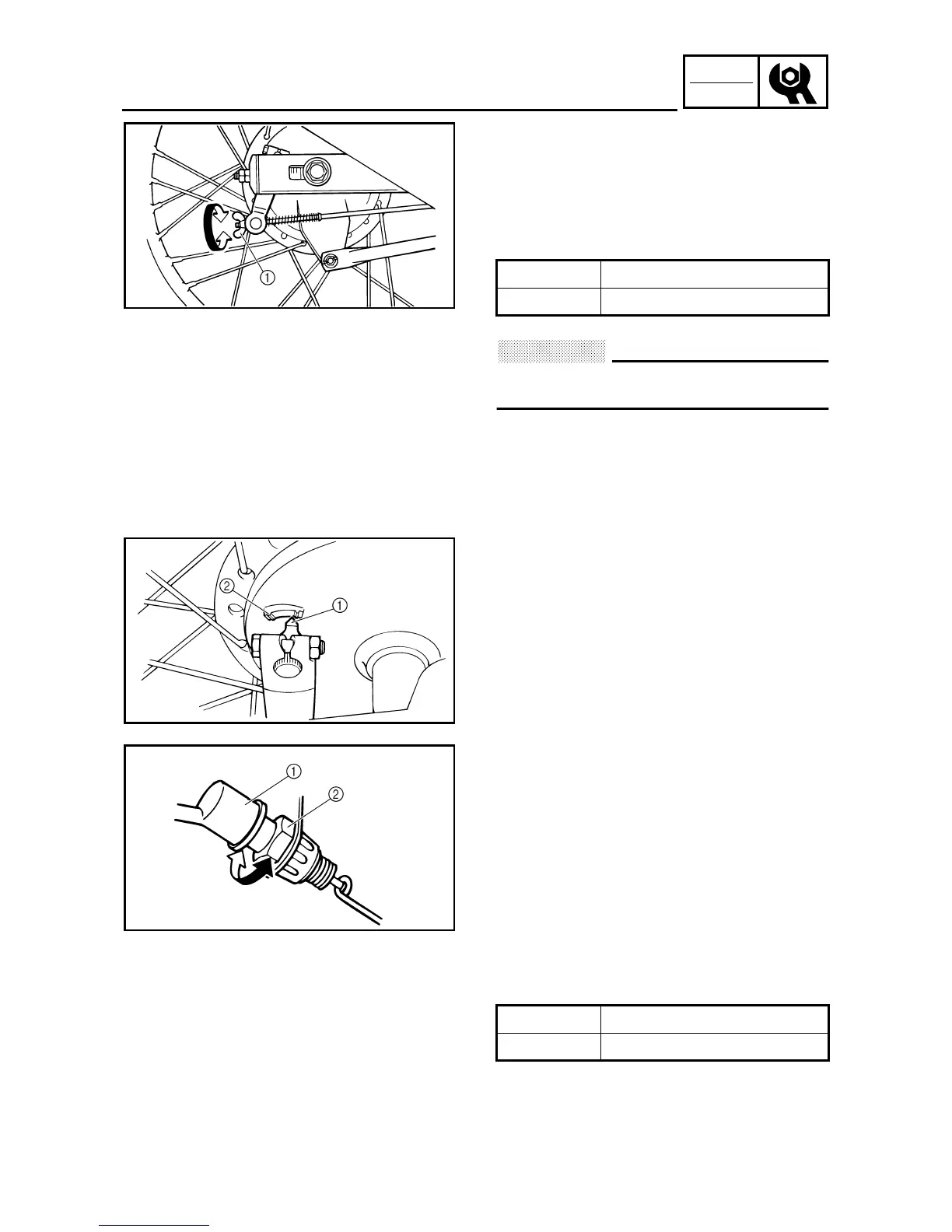

REAR BRAKE ADJUSTMENT/BRAKE SHOE
INSPECTION/BRAKE LIGHT SWITCH ADJUSTMENT
4.Adjust:
●
Brake pedal free play
*****************************************************
Adjustment steps:
●
Turn the adjuster
1
in or out until the speci-
fied free play is obtained.
CAUTION:
Make sure that the brake does not drag
after adjusting it.
*****************************************************
5.Adjust:
●
Brake light switch
Refer to the “BRAKE LIGHT SWITCH
ADJUSTMENT” section.
Turning in Free play is decreased.
Turning out Free play is increased.
BRAKE SHOE INSPECTION
1.Operate the brake pedal.
2.Inspect:
●
Brake shoes
Wear indicator
1
reaches the wear limit line
2 →
Replace the brake shoes as a set.
Refer to the “REAR WHEEL AND REAR
BRAKE” section in CHAPTER 6.
BRAKE LIGHT SWITCH ADJUSTMENT
1.Check:
●
Brake light operation timing
Incorrect
→
Adjust.
2.Adjust:
●
Brake light operation timing
*****************************************************
Adjustment steps:
●
Hold the main body
1
of the switch with your
hand so that it does not rotate, and turn the
adjuster
2
in or out until the proper opera-
tion timing is obtained.
*****************************************************
Turning in Brake light comes on first.
Turning out Brake light comes on slow.
