Yamaha Scorpio - Rocker Arm and Camshaft Removal

4 - 17
ENG
CAMSHAFT AND ROCKER ARMS

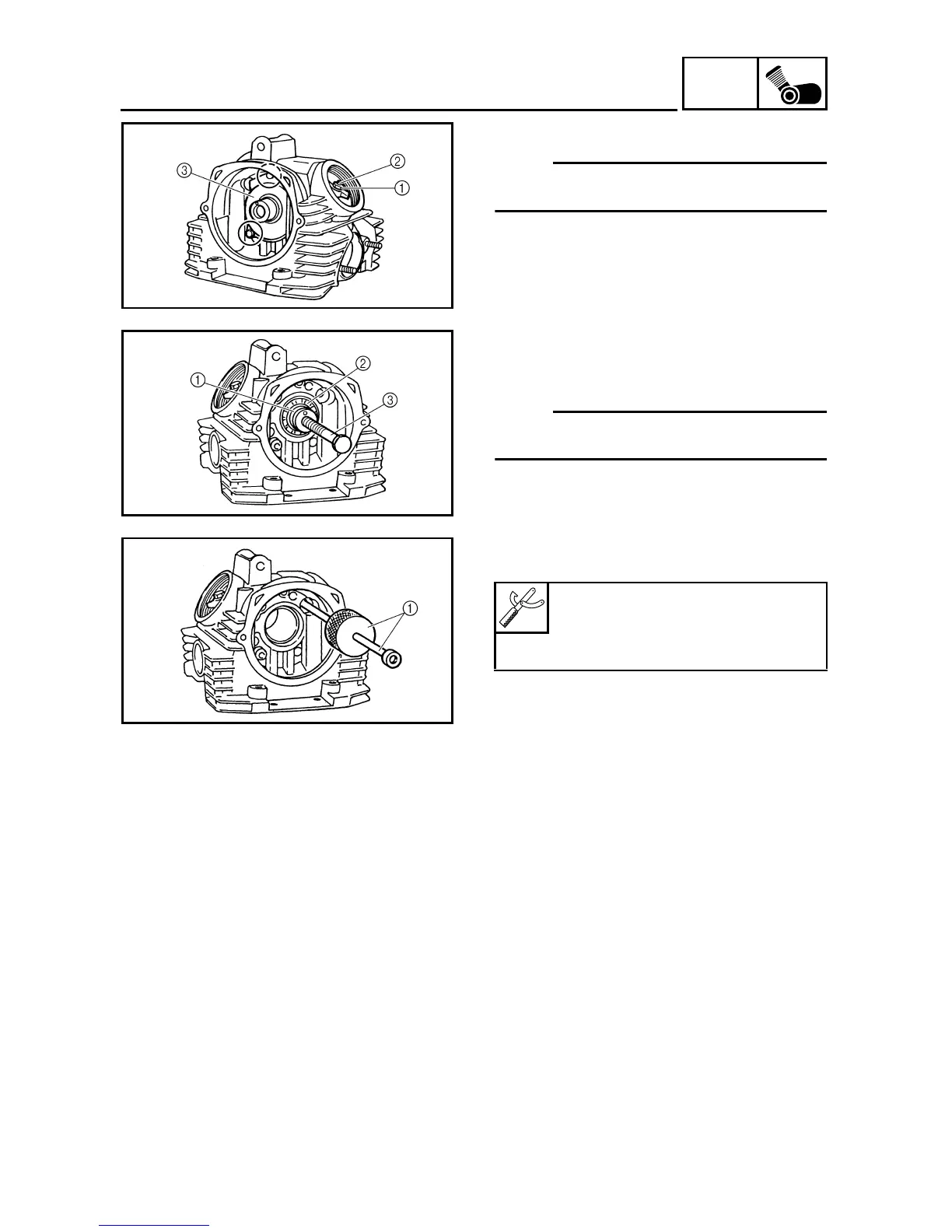

ROCKER ARM AND CAMSHAFT REMOVAL
NOTE:
Prior to remove the rocker arm and camshaft,
remove the cylinder head.
1.Loosen:
●
Locknut
1
●
Valve adjuster
2
2.Remove
●
Stopper plate
3
3.Remove:
●
Camshaft
1
●
Bearing
2
NOTE:
Remove the camshaft and collar by using 10
mm bolt
3
.
4.Attach:
●
Slide hammer set
1
5.Remove:
●
Rocker arm shaft
●
Rocker arm (intake/exhaust)
Slide hammer bolt:
90890-01085
Weight:
90890-01084
