Yamaha Scorpio - Clutch Installation

4 - 47
ENG
CLUTCH

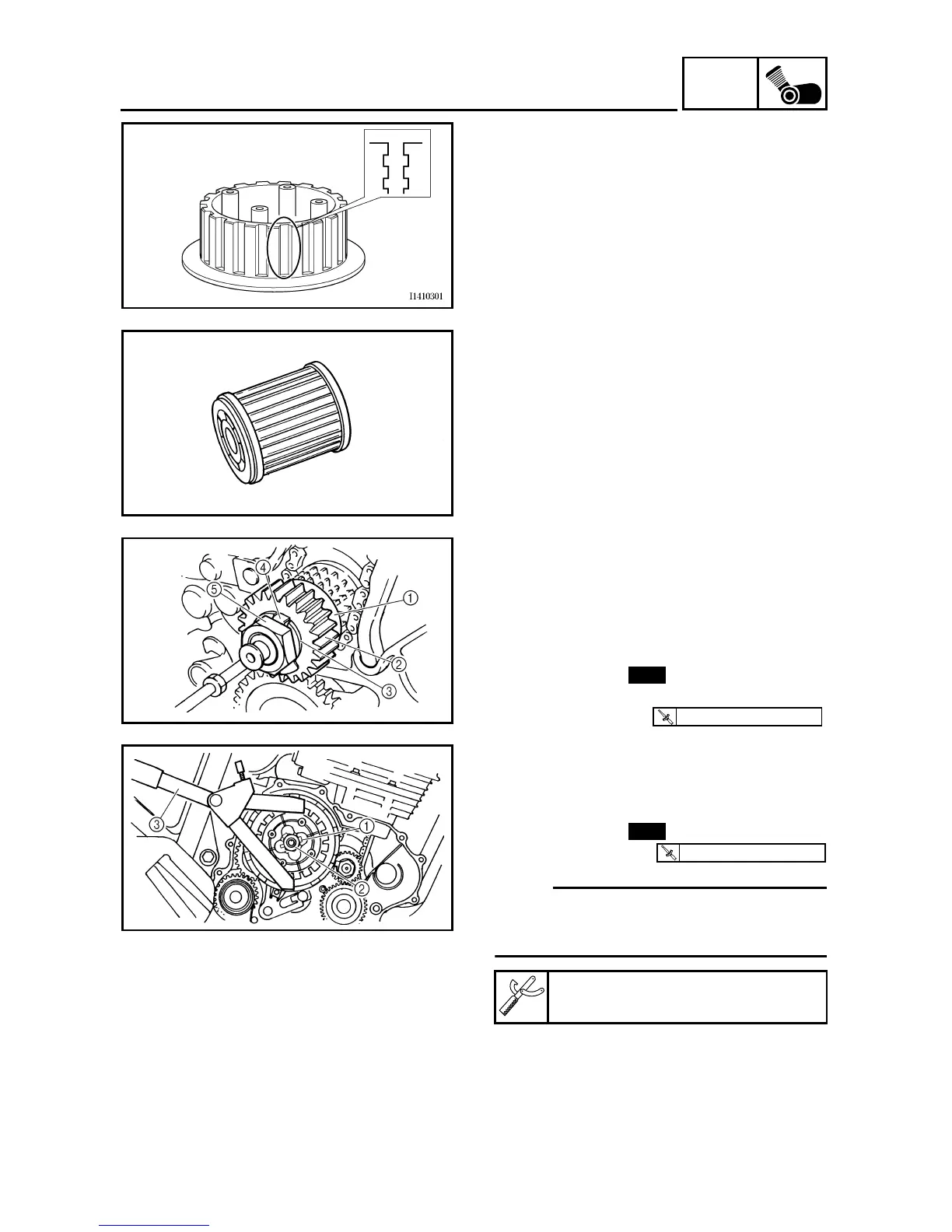

11.Inspect:
●
Clutch boss splines
Scoring/wear/damage
→
Replace clutch
boss assembly.
12.Inspect:
●
Oil filter
Cracks/damage
→
Replace.
Contamination
→
Clean the flushing oil.
T******
CLUTCH INSTALLATION
1.Install:
●
Straight key
●
Collar
1
●
Primary drive gear
2
●
Crow washer
3
●
Lock washer
4
●
Nut (primary drive gear)
5
New
T
R
.
.
80 Nm (8.0 m • kg)
2.Install:
●
Clutch housing
●
Thrust washer
●
Clutch bass
●
Lock washer
1
●
Nut
2
(clutch boss)
NOTE:
Install the primary drive gear and clutch boss
nut
2
while holding the clutch boss with a
clutch holding tool
3
.
3.Bend:
●
Lock washer tab
1
(primary drive gear and
clutch boss)
(along a flat side of the end)
Universal clutch holder:
90890-04086
New
T
R
.
.
70 Nm (7.0 m • kg)
