Yamaha Scorpio - CYLINDER HEAD

4 - 9
ENG

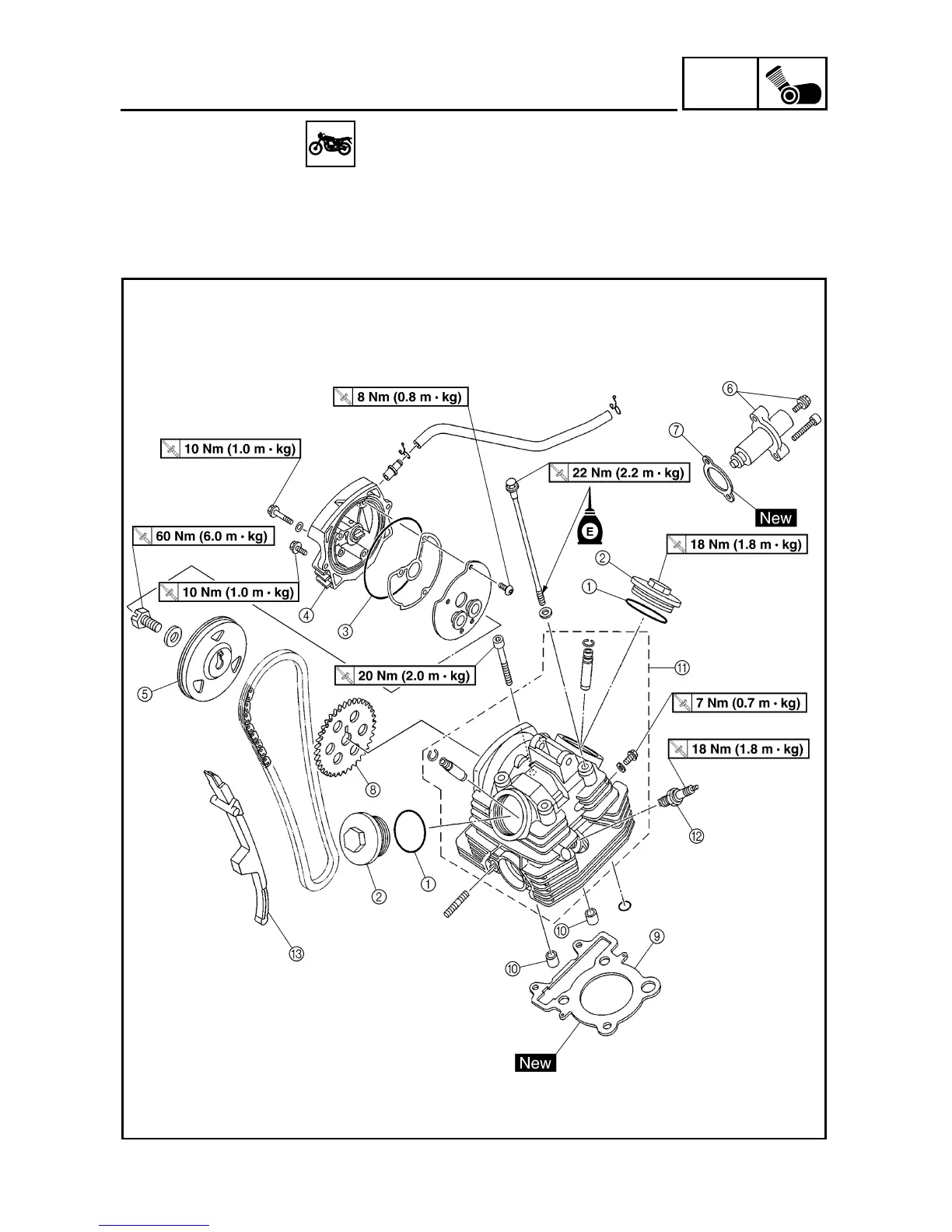

CYLINDER HEAD
CYLINDER HEAD
1
O-ring
2
Tappet cover
3
O-ring
4
Camshaft sprocket cover
5
Plate
6
Cam chain tensioner
7
Gasket
8
Camshaft sprocket
9
Gasket
0
Dowel pin
A
Cylinder head
B
Spark plug
C
Timing chain guide (exhaust side)
