3 - 13
INSP
ADJ
CLUTCH ADJUSTMENT/
AIR FILTER CLEANING
2.Adjust:
●
Clutch cable free play
*****************************************************

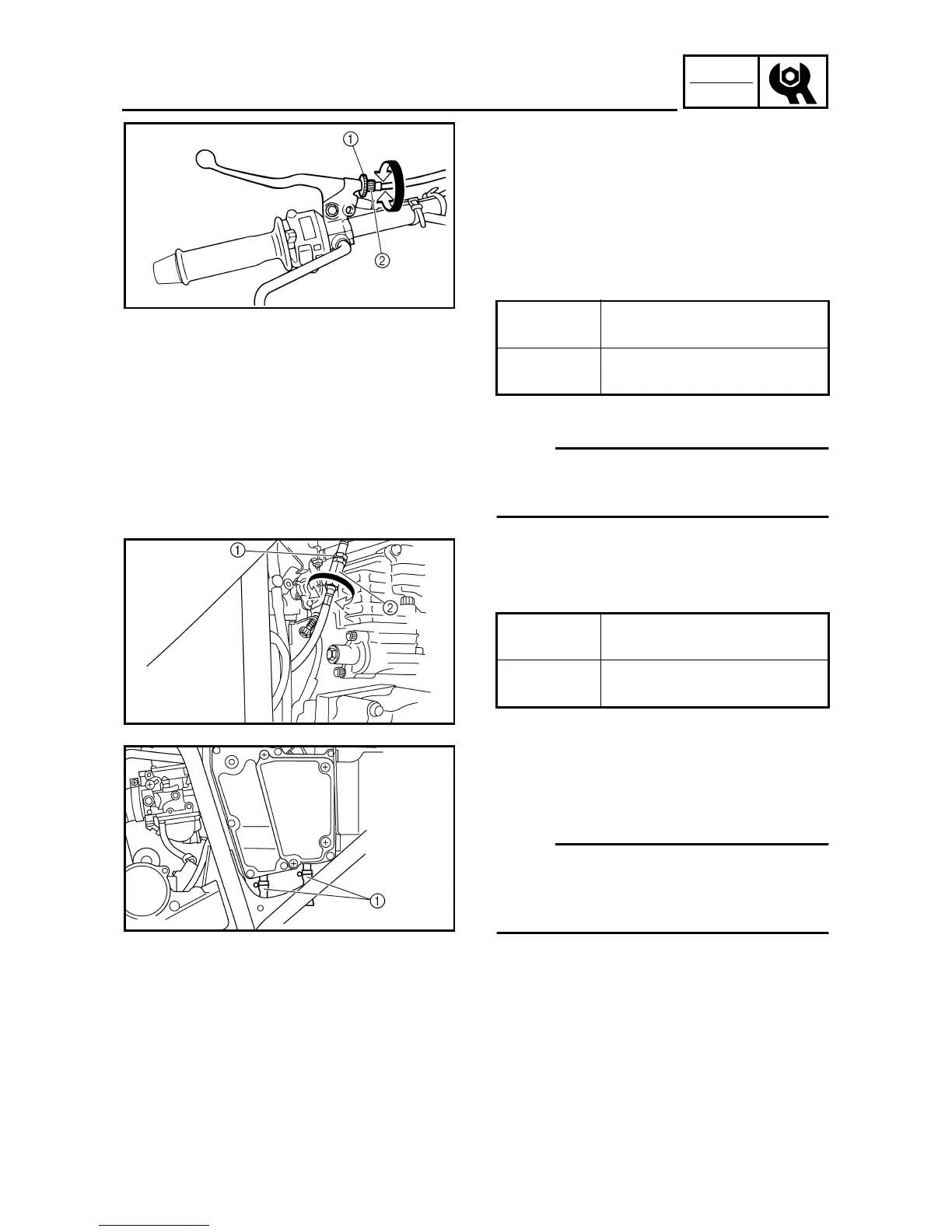

Adjustment steps:
Handlebar side
●
Loosen the locknut
1
.
●
Turn the adjusting bolt
2
in or out until the
specified clutch cable free play is obtained.
●
Tighten the locknut.
N
OTE:
If the specified clutch cable free play cannot be
obtained on the handlebar side of the cable,
use the adjusting nut on the engine side.
Engine side
●
Loosen the locknuts
1
.
●
Turn the adjusting bolt
2
in or out until the
specified clutch cable free play is obtained.
●
Tighten the locknuts.
*****************************************************
AIR FILTER CLEANING
1.Check:
●
Air filter check hoses
1
N
OTE:
On the bottom of the air filter case is a check
hoses
1
. If dust or water or both collects in
this hoses, clean the air filter element and air
filter case.
2.Remove:
●
Side cover (left)
Refer to the “SIDE COVER” section.
Turn in
Clutch cable free play is
increased.
Turn out
Clutch cable free play is
decreased.
Turn in
Clutch cable free play is
increased.
Turn out
Clutch cable free play is
decreased.
