TRANSMISSION

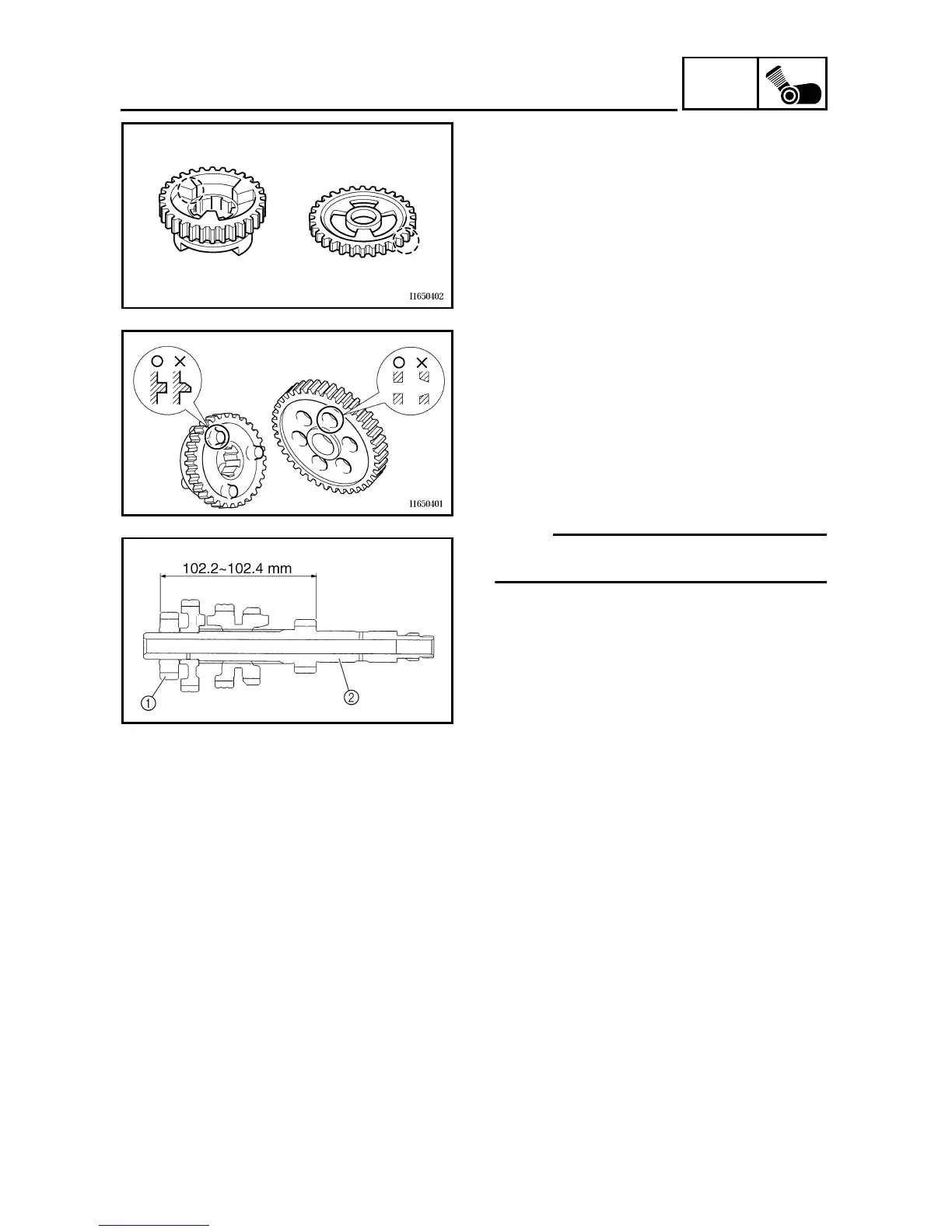

3.Check:
●
Transmission gears
Blue discoloration/pitting/wear
→
Replace
the defective gear(s).
●
Transmission gear dogs
Cracks/damage/rounded edges
→
Replace
the defective gear(s).
4.Check:
●
Transmission gear engagement
(each pinion gear to its respective wheel
gear)
Incorrect
→
Reassemble the transmission
axle assemblies.
NOTE:
When reassembling the main axle, press the
2nd pinion gear
1
onto it
2
as shown.
5.Check:
●
Transmission gear movement
Rough movement
→
Replace the defective
part(s).
6.Check:
●
Circlips
Damage/bends/looseness
→
Replace.
