7 - 23
– +
ELEC
ELECTRIC STARTING SYSTEM

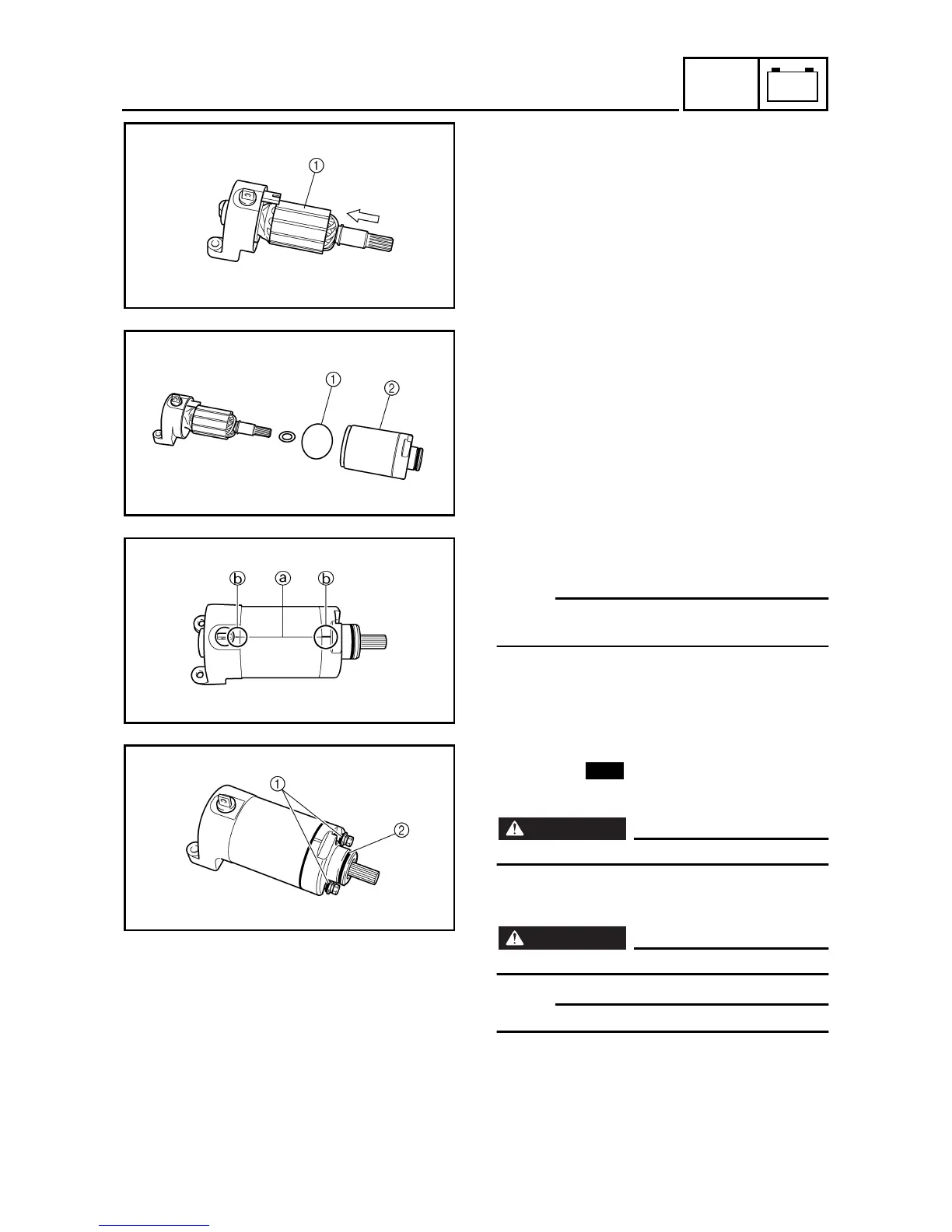

2.Install
●
Armature
1
3.Install:
●
O-ring
1
●
Starter motor yoke
2
4.Install
●
Starter motor assembly
N
OTE:
Align the groove
a
on the starter motor
assembly with the groove
b
on the housing.
5.Install:
●
O-ring
1
●
Screw
WARNING
Always use a new O-ring.
6.Install:
●
O-ring
2
WARNING
Always use a new O-ring.
N
OTE:
Apply a lightly grease to the O-ring
2
.
New
