YASKAWA FS100 Instructions

2 INFORM Explanation

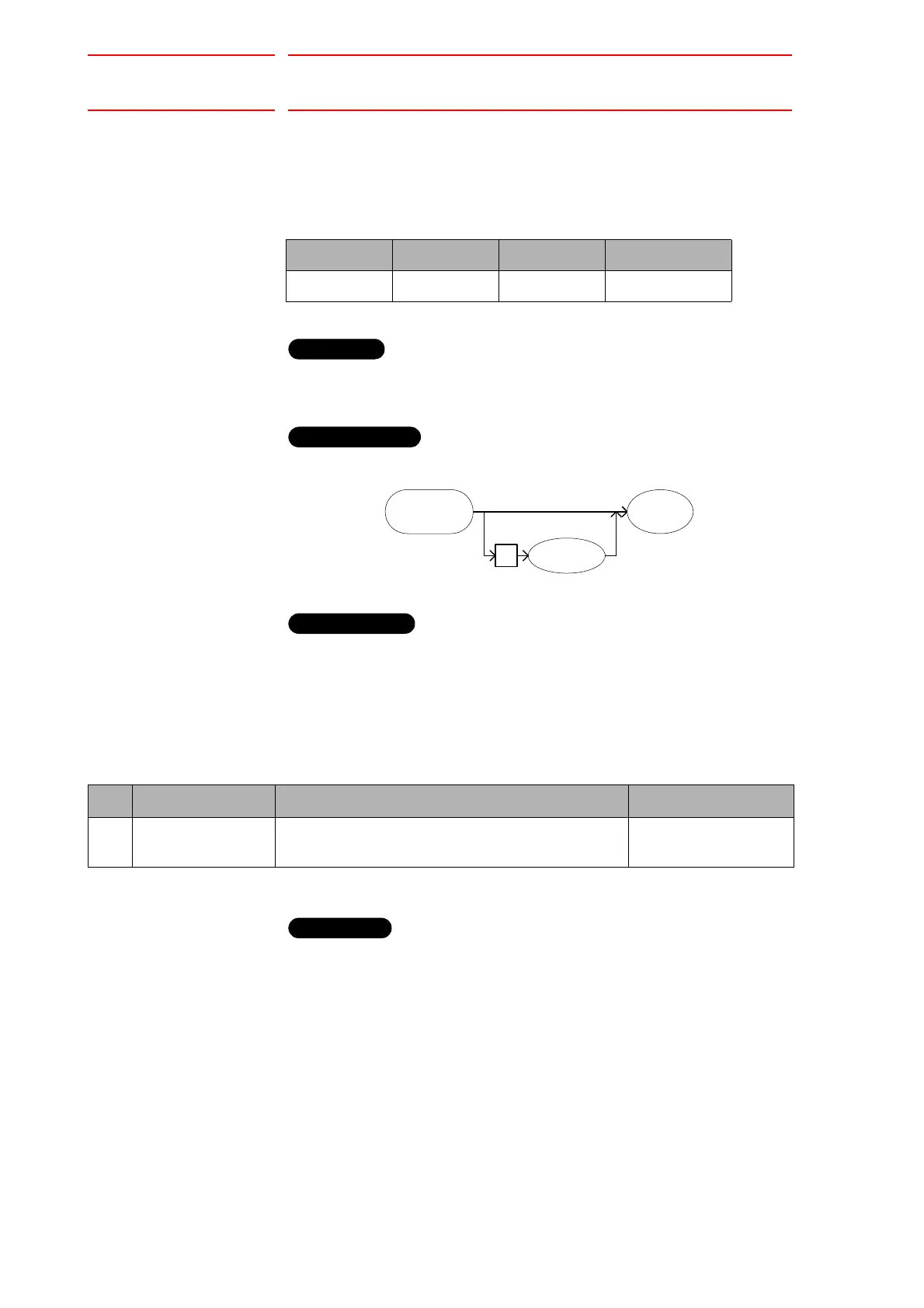

FS100 2.7 General-purpose Instruction : TOOLON
2-221
2.7 General-purpose Instruction
TOOLON
Turns ON the work instruction.
1. UNITn
Choose one of the tags from the Unit (Equipment). These tags are valid
for a system with multiple applications in which two or more general-
purpose applications are included. These tags are not displayed when
there is only one application.
(1) TOOLON
Turns ON the work instruction.
Turns ON the work start instruction (dedicated output relay
#51530) and waits for the work start response (dedicated input
relay #41130). When the work start response is turned ON, the
next instruction is carried out.
The work start response relay is designed to turn ON immediately
after the output of the work start instruction.
SUBSET STANDARD EXPANDED APPLICATIONS
Available Available Available General-purpose
Function
Construction
UNITn
ENDTOOLON
1
Explanation
No Tag Explanation Note
1 UNITn Specifies the Unit (Equipment). n: 1 to 2
UNIT1: UNIT1
Example

YASKAWA FS100 Specifications

General

Manufacturer	YASKAWA
Model	FS100
Programming Language	INFORM III
Weight	Approx. 15 kg
Protection Class	IP20
Control Method	Digital Servo Control
Communication Protocols/Interface	Ethernet, DeviceNet, Profibus
Power Supply	200-230V AC, 50/60Hz
Operating Temperature	0°C to 45°C
Ambient Humidity	20% to 80% (non-condensing)
