2 INFORM Explanation

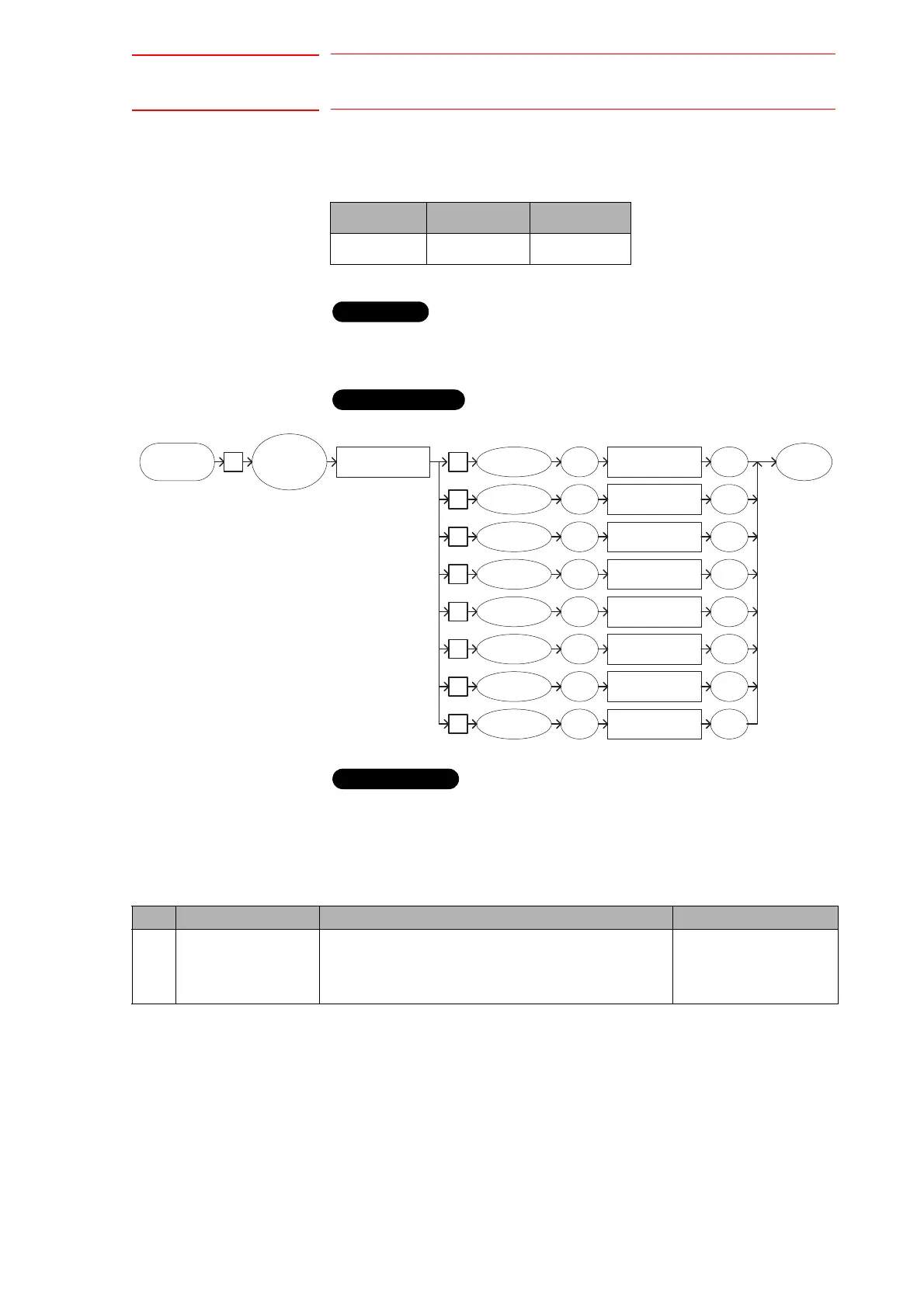

FS100 2.1 I/O Instructions : DIN
2-4
DIN
Refers to the byte type variable for the status of the signal.
1. B Variable Number / LB Variable Number / B [Array
Number] / LB [Array Number]
Add the following tag.
SUBSET STANDARD EXPANDED
Available Available Available
Function
Construction
DIN
B/LB/B[]/
LB[]
Variable No.
IN# (
Input No.
) END
IG# (
Input group No.
)
OT# (
Output No.
)
OG# (
Output group
No.
)
SIN# (
Specific
input No.
)
SOUT# (
Specific
output No.
)
IGH# (
Input group No.
)
OGH# (
Output group
No.
)
1 2
3
4
5
6
7
8
9
Explanation
No Tag Explanation Note
1 B Variable Number/
LB Variable Number/
B [Array Number]/
LB [Array Number]
Specifies the number of byte type variable for the
signal.
