YASKAWA FS100 Instructions

2 INFORM Explanation
FS100 2.3 Operating Instruction : CNVRT
2-117

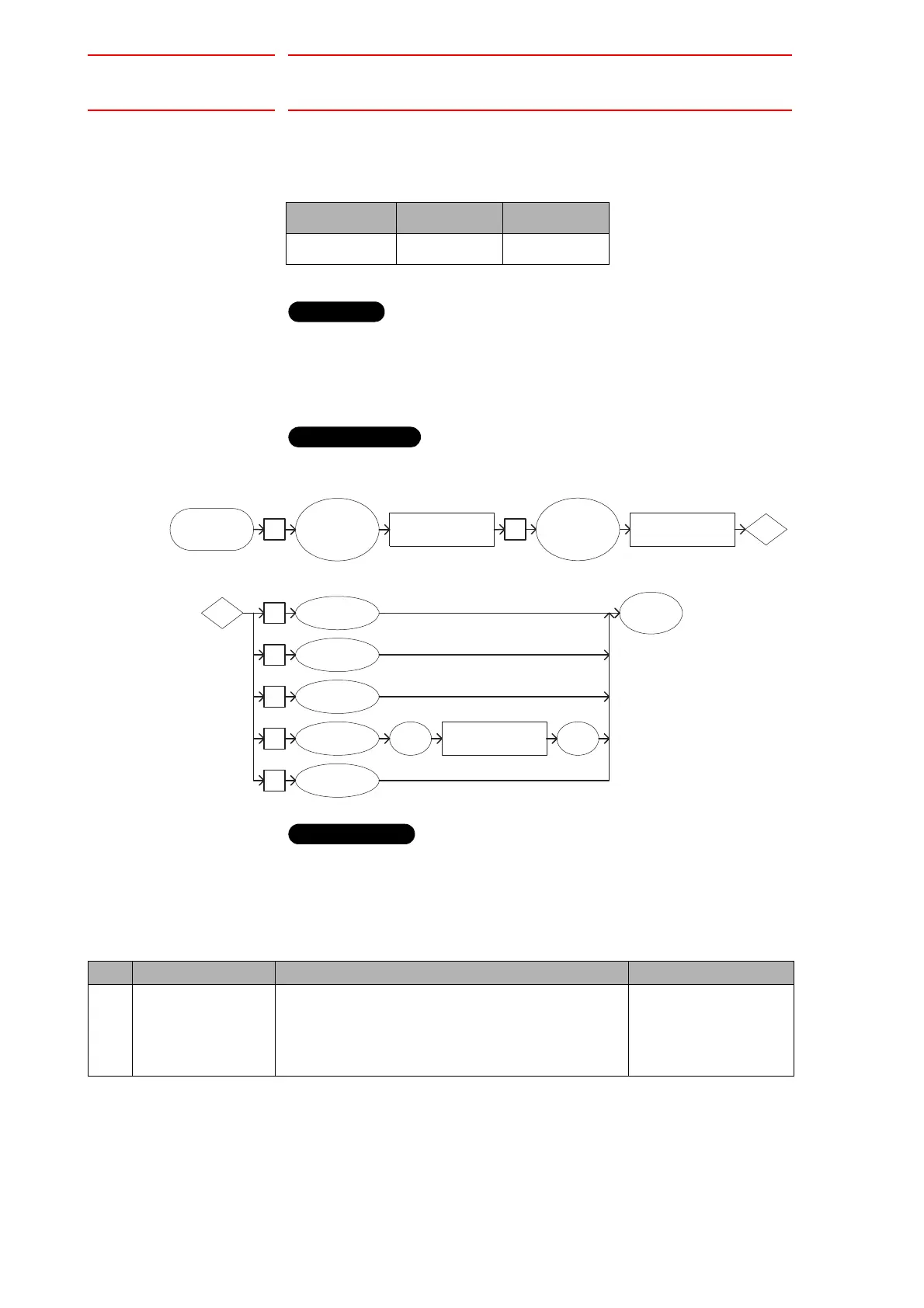

CNVRT
Converts the pulse type position type variable of Data 2 to the XYZ type
position type variable in the specified coordinate system, and stores the
result in Data 1.
CNVRT <Data 1> <Data 2> Coordinate system designation
1. PX Variable number/LPX Variable number/PX [Array
number]/LPX [Array number]
Add the following tag.
SUBSET STANDARD EXPANDED
Not available Available Available
Function
Construction
CNVRT
PX/PX[]
/LPX
/LPX[]
Variable No.
END
Variable No.
BF
RF
MTF
UF# (
User
coordinate No.
)
A
A
1 2
3
4
5
7
PX/PX[]
/LPX
/LPX[]
TF
6
Explanation
No. Tag Explanation Note
1 PX Variable number/
LPX Variable
number/
PX [Array number]/
LPX [Array number]
Specifies the number of the expanded position type
variable where the converted data is stored.
<Data 1>

YASKAWA FS100 Specifications

General

Manufacturer	YASKAWA
Model	FS100
Programming Language	INFORM III
Weight	Approx. 15 kg
Protection Class	IP20
Control Method	Digital Servo Control
Communication Protocols/Interface	Ethernet, DeviceNet, Profibus
Power Supply	200-230V AC, 50/60Hz
Operating Temperature	0°C to 45°C
Ambient Humidity	20% to 80% (non-condensing)
