YASKAWA MP2200

5.2
Motion Command Details
5-83

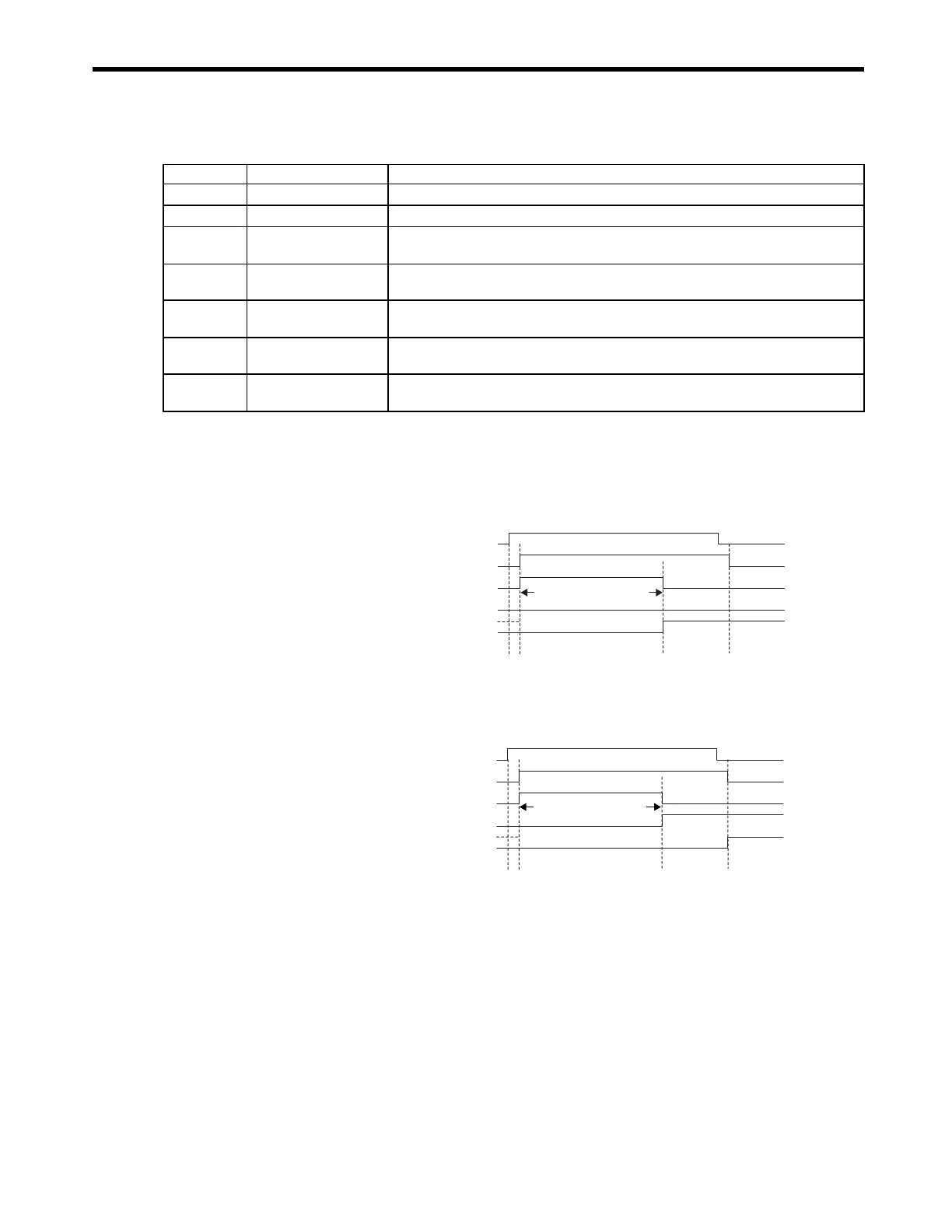

[ b ] Monitoring Parameters
( 4 ) Timing Charts
[ a ] Normal End
[ b ] Error End
Parameter Name Monitor Contents
IL

02
Warning
Stores the most current warning.
IL

04
Alarm
Stores the most current alarm.
IW

08
Servo Command
Type Response
Indicates the motion command that is being executed.
The response code will be 14 during KVS command execution.
IB

090
Command Executing
Turns ON during KVS command execution and turns OFF when execution has been
completed.
IB

091
Command Hold
Completed
Always OFF for KVS command.
IB

093
Command Error End
Turns ON if an error occurs during KVS command execution. Turns OFF when another
command is executed.
IB

098
Command Execution
Completed
Turns ON when KVS command execution has been completed.
OW08 = 14 (KVS)
IW08 = 14 (KVS)
IB090 (BUSY)
IB098 (COMPLETE)
IB093 (FAIL)
Undefined length
of time
OW08 = 14 (KVS)
IW08 = 14 (KVS)
IB090 (BUSY)
IB098 (COMPLETE)
IB093 (FAIL)
Undefined length
of time
