YASKAWA MP2200

3.1
SVB-01 Module Setup
3-3
3.1.2 Self-configuration
Self-configuration automatically recognizes all the MP2200/MP2300 Optional Modules (including
the SVB-01 Module), and automatically generates definition files.
The SVB-01 Module (master) also collects information on the slaves connected to the
MECHATROLINK Network. Self-configuration can be used to reduce setup time.

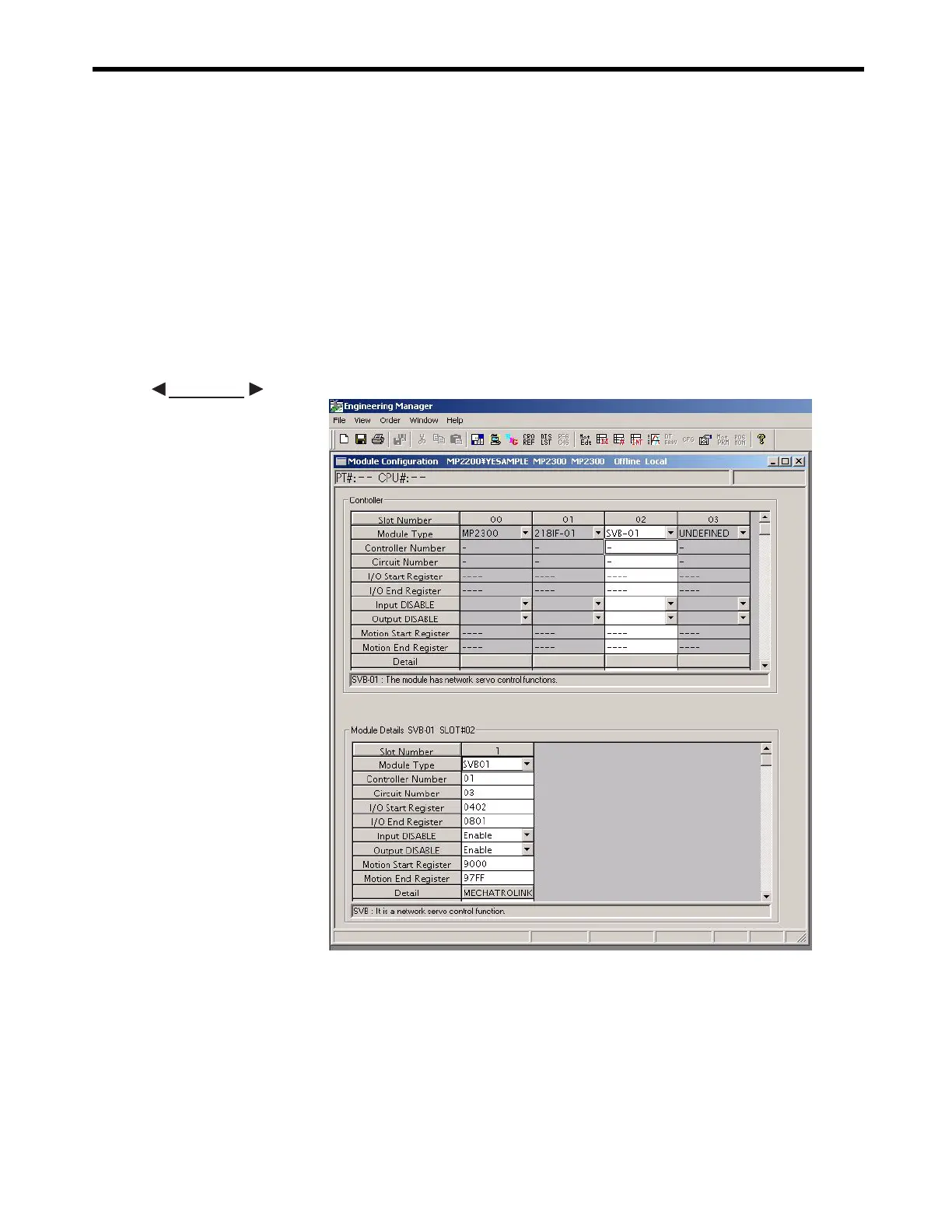

( 1 ) Module Configuration Definition
The following example shows a sample Module configuration definition achieved by installing a
218IF-01 Module and SVB-01 Module in the MP2200/MP2300 Option Slot, and executing self-
configuration.
■
Example for the MP2300
