8
SVR Virtual Motion Module
8.4.2
Checking Operation
8-40
8.4.2 Checking Operation

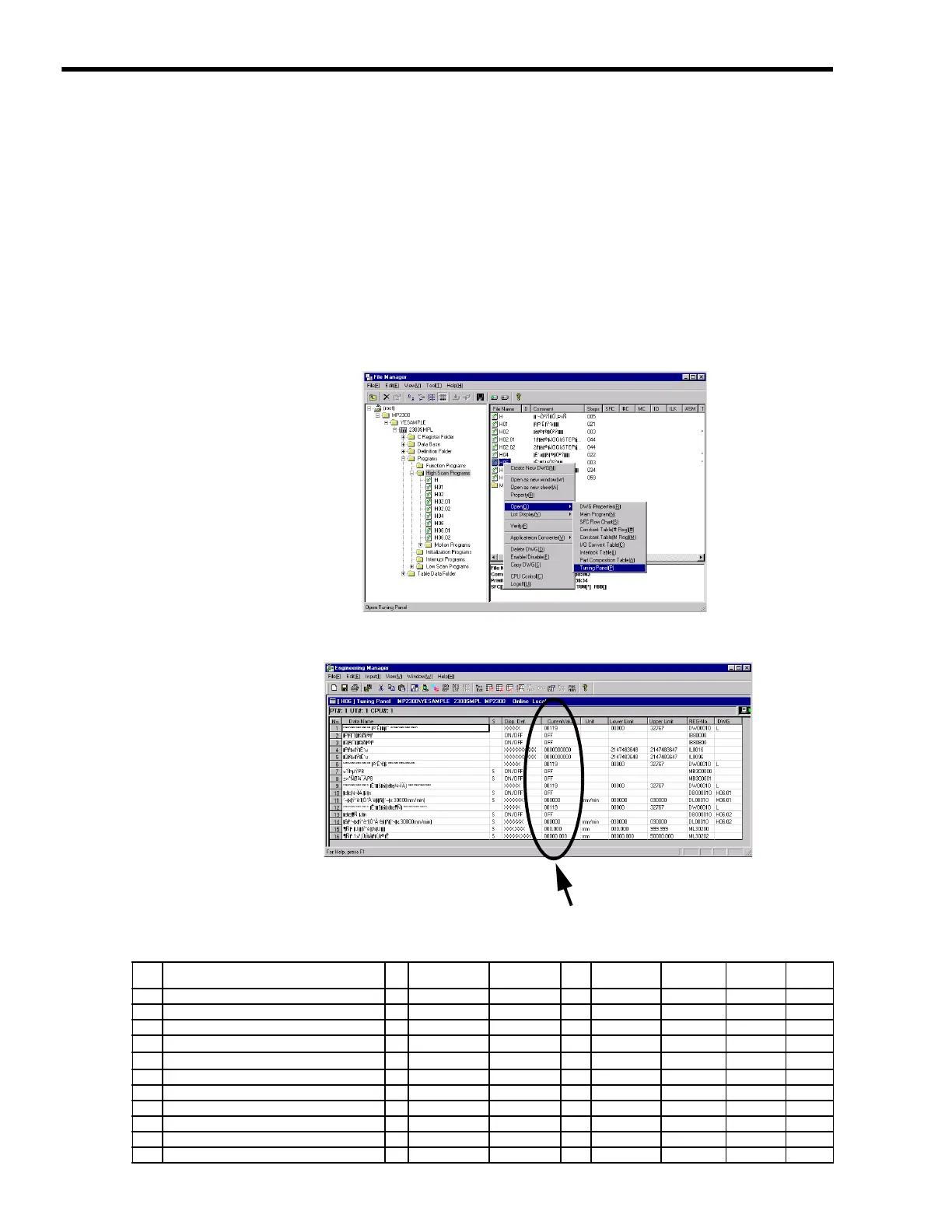

( 1 ) Checking Operation with the Tuning Panel Window
In this sample program, run, stop, and other operations can be checked from a Tuning Panel Window.
Use the following procedure to display the Tuning Panel Window.
1. Log on online, open the 2200SMPL Controller Folder in the MPE720's File Manager
Window, open the Programs folder, and then the High Scan Programs folder.
2. Right-click the H02 Drawing in the High Scan Programs Folder and select Open -
Tuning Panel.
3. The Tuning Panel Window for the H02 Drawing will be displayed.
The details on the Tuning Panel Window display are shown in the following table.
Input position and current value
No. Data Name S
Display
Definition
Current Value Unit Lower Limit Upper Limit REG-No. DWG
1 ***************Common monitor*************** XXXXX 00000 00000 32767 DW00010 L
2 Axis 1 operation ready ON/OFF OFF IB80000
3 Axis 2 operation ready ON/OFF OFF IB80000
4 Axis 1 current position XXXXXXXXXX 0000000000
−
0214783648
2147483647 IL8016
5 Axis 2 current position XXXXXXXXXX 0000000000
−
0214783648
2147483647 IL8096
6 ***************Common operation*************** XXXXX 00000 00000 32767 DW00010 L
7 Servo ON PB S ON/OFF OFF MB300000
8 Alarm reset PB S ON/OFF OFF MB300001
9 ************Manual operation and setting************* XXXXX 00000 00000 32767 DW00010 L
10 Axis 1 forward JOG S ON/OFF OFF DB000010 H02.01
11 Axis 1 reverse JOG S ON/OFF OFF DB000011 H02.01
