1.2.6 Synchronization between Modules
( 1 ) Overview
Synchronization between the CPU and the Optional Modules is provided using hardware for the
MP2200/MP2300.
This enables synchronization between the high-speed scan and MECHATROLINK communication,
resulting in synchronization between SVB Modules built into the CPU Unit and SVB-01 Modules, as
well as between different SVB-01 Modules.
Synchronization between Modules was not possible with SVB-01 Modules of the MP920 and SVB
Modules of the CP9200SH.
When synchronized mode is used, the start of the high-speed scan and the various communication
cycles are synchronized. This means that commands from the high-speed scan will be sent at
consistent points in communication cycle processing and simplifies distribution processing for
interpolation commands.
JEPMC-AN2910
D/A Module
Analog outputs, -10 to 10 V, 2 channels
Yes Yes
JAPMC-MC2310
SVB-01 Motion Module
Yes Yes
JEVSA-YV250
MYVIS YV250 Machine Vision System
Yes Yes
JEPMC-MC400
MP940 Machine Controller
Yes N o
(cont’d)
Model Number Details

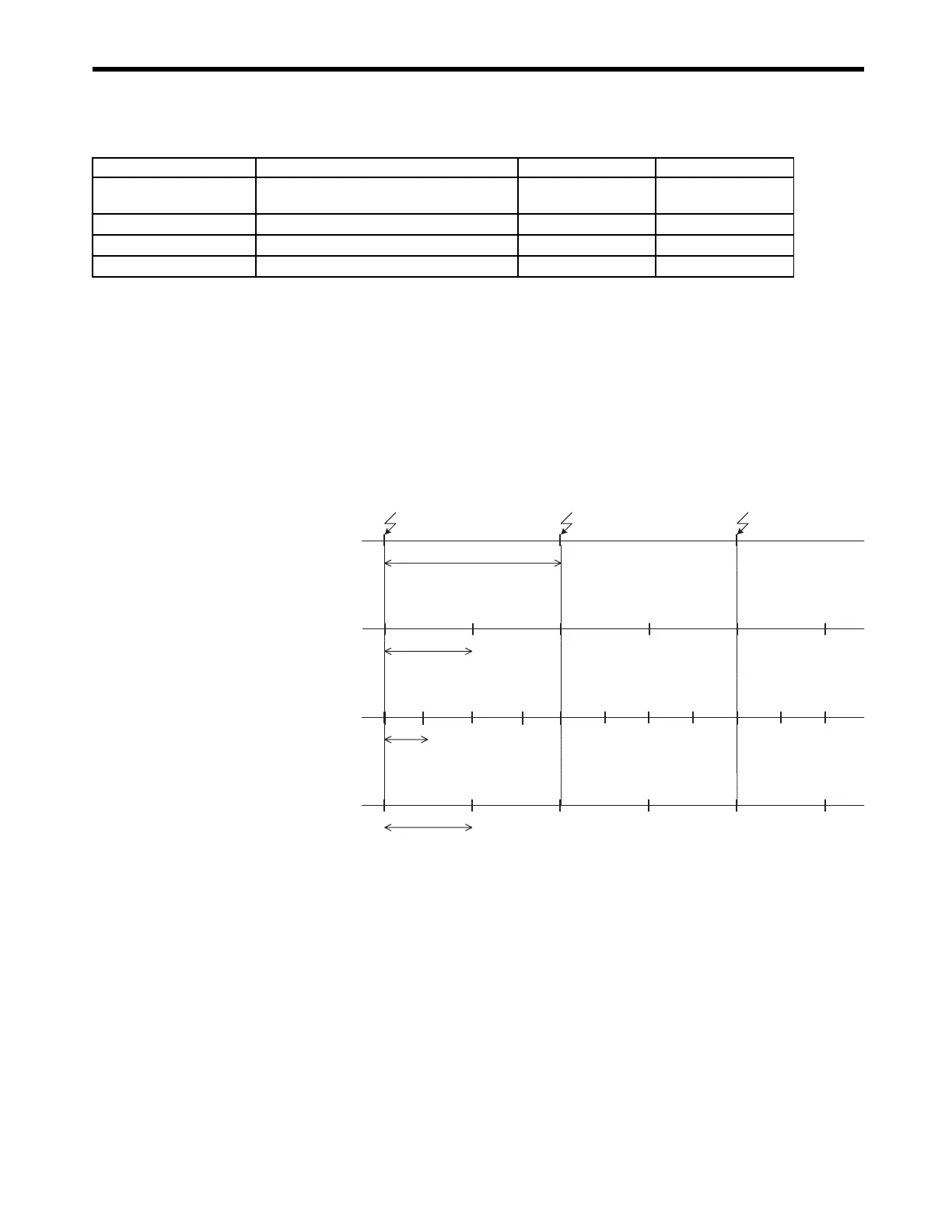

MECHATROLINK-
I
MECHATROLINK-II
g
h-speed scan
4 ms
2 ms
1 ms
2 ms
m
munication
c
le for SVB built
o
the CPU
m
munication
c
le for SVB-01
m
munication
c
le for SVB-01
