9.2
Overtravel Function
9-15

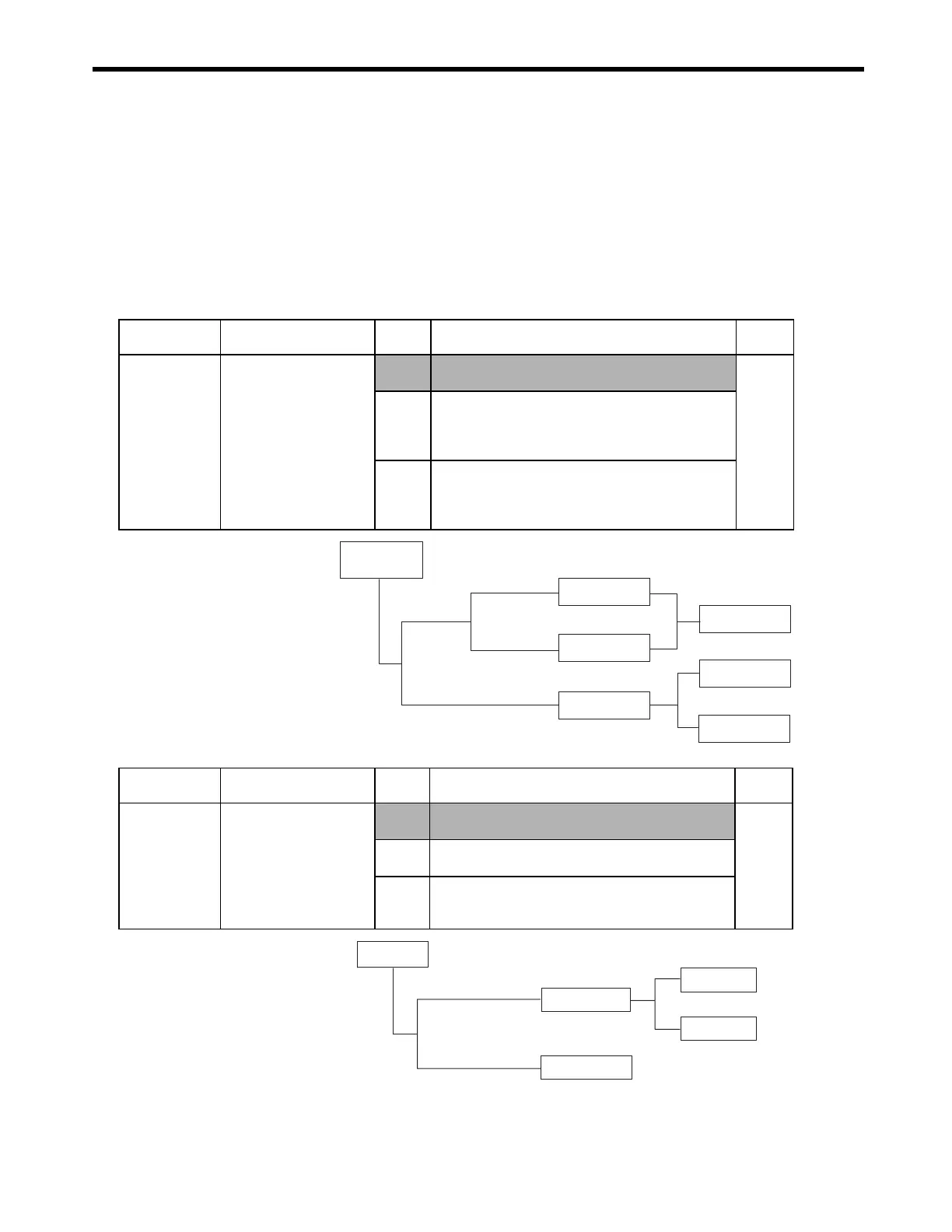

( 2 ) Selecting Motor Stopping Methods for Overtravel
When using the overtravel function has been enabled, the following parameters are used to set the
methods for stopping the motor.
Select the methods for stopping when the P-OT or N-OT is input during motor running.
[ a ]
Σ
-
II
or
Σ
-
III
SERVOPACK
Select the stopping method and processing after stopping when an overtravel signal is input during
motor running.
Select the stopping method and processing after stopping when the Servo turns OFF.
Parameter Name
Set
Value
Meaning Default
Pn001.1
Overtravel Stop Mode
0
Stops the motor according to Pn001.0 setting (dynamic
brake or coasting) when overtravel is detected.
0
1
Decelerates the motor to a stop by applying the torque
specified in Pn406 (Emergency Stop Torque) when
overtravel is detected, and then sets it to zero clamp
(servolock) mode.
2
Decelerates the motor to a stop by applying the torque
specified in Pn406 (Emergency Stop Torque) when
overtravel is detected, and then sets it to coast (servo
OFF) mode.
Pn001.0 = 0,1
Pn001.0 = 2
Pn001.1 = 0
Dynamic
brake stop
Coast to a stop
Deceleration
stop
Zero-clamp
Servo OFF
Servo OFF
Stopping method
After stopping
Pn001.1 = 1 or 2
Overtravel
Parameter Name
Set
Value
Meaning Default
Pn001.0
Servo OFF Stop Mode
0
Stops the motor by applying dynamic brake (DB) and
then holds the DB.
0
1
Stops the motor by applying dynamic brake (DB) and
then releases the DB.
2
Makes the motor coast to a stop.
Current is not supplied to the motor and the machine
stops due to friction.
0
1
Pn001.0 = 2
Stopping method After stopping
Coast to a stop
Dynamic
brake stop
Dynamic
brake held
Dynamic brake
released
Pn001.0 = 0 or 1
Servo OFF
