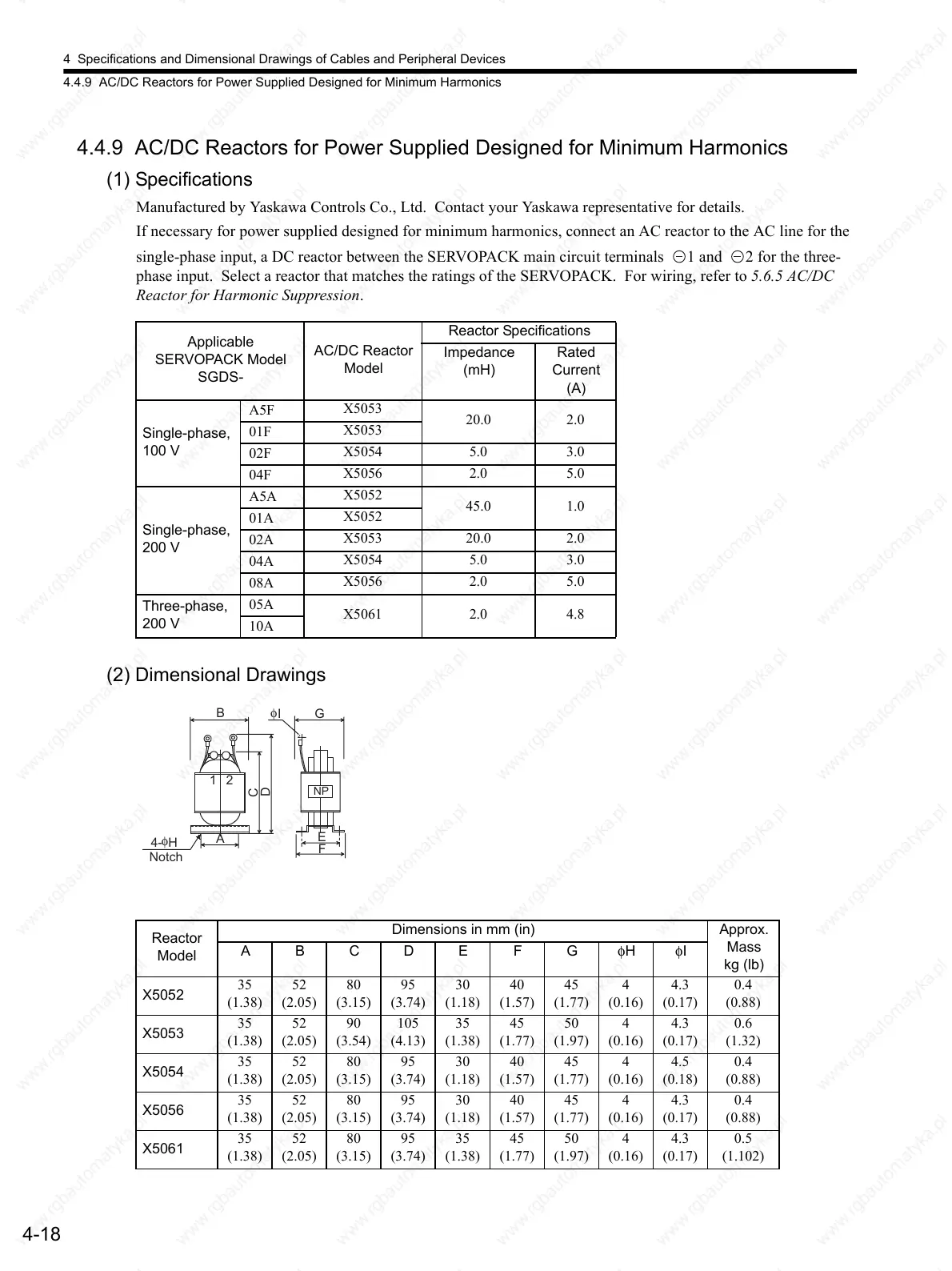

4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.4.9 AC/DC Reactors for Power Supplied Designed for Minimum Harmonics
4-18
4.4.9 AC/DC Reactors for Power Supplied Designed for Minimum Harmonics
(1) Specifications
Manufactured by Yaskawa Controls Co., Ltd. Contact your Yaskawa representative for details.
If necessary for power supplied designed for minimum harmonics, connect an AC reactor to the AC line for the
single-phase input, a DC reactor between the SERVOPACK main circuit terminals 1 and 2 for the three-
phase input. Select a reactor that matches the ratings of the SERVOPACK. For wiring, refer to 5.6.5 AC/DC
Reactor for Harmonic Suppression.
(2) Dimensional Drawings
Applicable
SERVOPACK Model
SGDS-
AC/DC Reactor
Model
Reactor Specifications
Impedance
(mH)
Rated
Current
(A)
Single-phase,
100 V
A5F
X5053
20.0 2.0
01F
X5053
02F
X5054 5.0 3.0
04F
X5056 2.0 5.0
Single-phase,
200 V
A5A
X5052
45.0 1.0
01A
X5052
02A
X5053 20.0 2.0
04A
X5054 5.0 3.0
08A
X5056 2.0 5.0
Three-phase,
200 V
05A
X5061 2.0 4.8
10A
Reactor
Model
Dimensions in mm (in) Approx.
Mass
kg (lb)
ABCDEFGφH φI
X5052
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
30
(1.18)
40
(1.57)
45
(1.77)
4
(0.16)
4.3
(0.17)
0.4
(0.88)
X5053
35
(1.38)
52
(2.05)
90
(3.54)
105
(4.13)
35
(1.38)
45
(1.77)
50
(1.97)
4
(0.16)
4.3
(0.17)
0.6
(1.32)
X5054
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
30
(1.18)
40
(1.57)
45
(1.77)
4
(0.16)
4.5
(0.18)
0.4
(0.88)
X5056
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
30
(1.18)
40
(1.57)
45
(1.77)
4
(0.16)
4.3
(0.17)
0.4
(0.88)
X5061
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
35
(1.38)
45
(1.77)
50
(1.97)
4
(0.16)
4.3
(0.17)
0.5
(1.102)
4-
φ
H
Notch
A
B
D
G
E
F
φ
I
1 2
NP
C
