YASKAWA SGDS-***12A Series User Manual

4 Specifications and Dimensional Drawings of Cables and Peripheral Devices

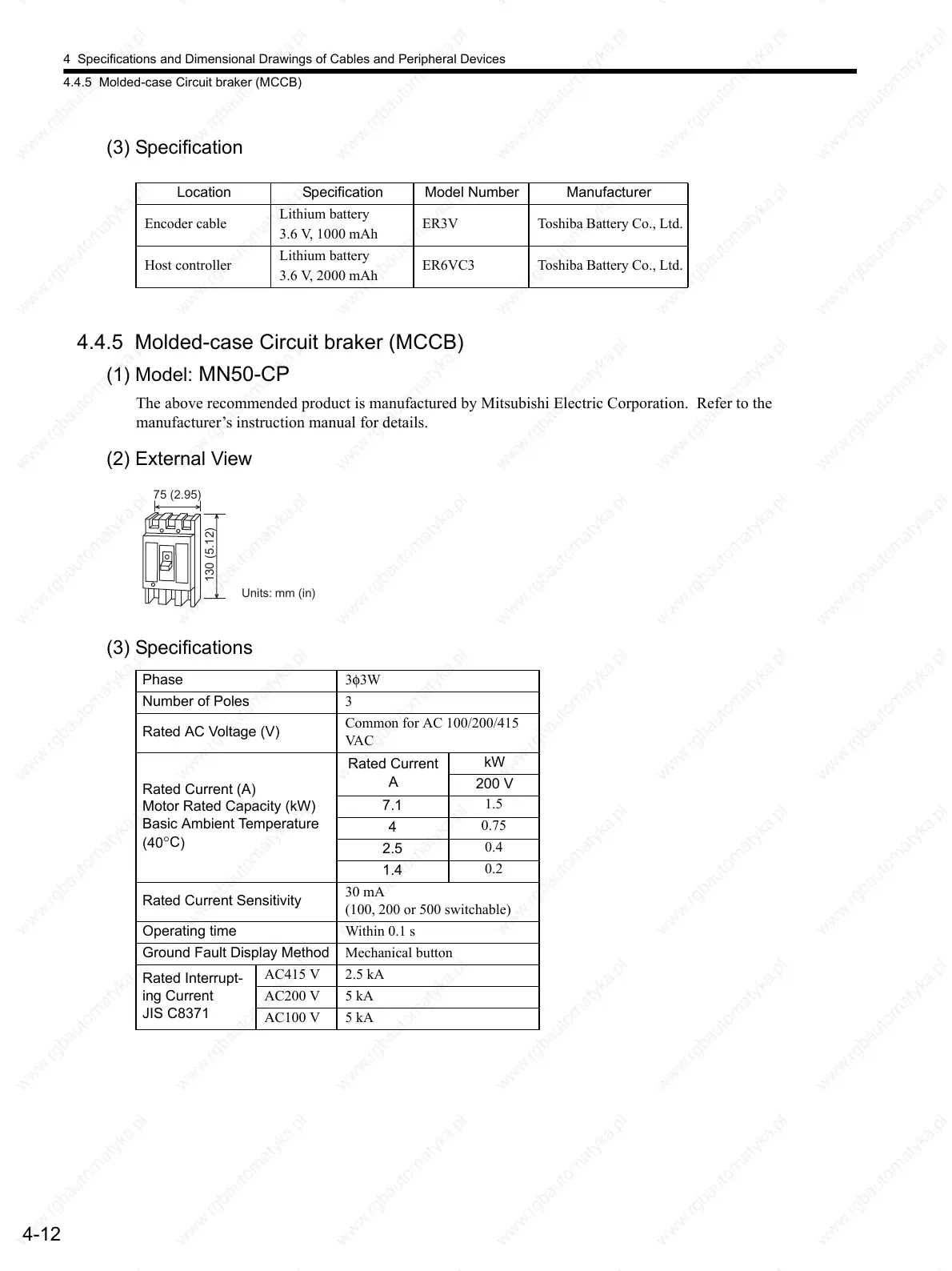

4.4.5 Molded-case Circuit braker (MCCB)
4-12
(3) Specification
4.4.5 Molded-case Circuit braker (MCCB)
(1) Model: MN50-CP
The above recommended product is manufactured by Mitsubishi Electric Corporation. Refer to the
manufacturer’s instruction manual for details.
(2) External View
(3) Specifications
Location Specification Model Number Manufacturer
Encoder cable
Lithium battery
3.6 V, 1000 mAh
ER3V Toshiba Battery Co., Ltd.
Host controller
Lithium battery
3.6 V, 2000 mAh
ER6VC3 Toshiba Battery Co., Ltd.
130 (5.12)
75 (2.95)
Units: mm (in)
Phase 3φ3W
Number of Poles 3
Rated AC Voltage (V)
Common for AC 100/200/415
VA C
Rated Current (A)
Motor Rated Capacity (kW)
Basic Ambient Temperature
(40
°
C
)
Rated Current
A
kW
200 V
7.1
1.5
4
0.75
2.5
0.4
1.4
0.2
Rated Current Sensitivity
30 mA
(100, 200 or 500 switchable)
Operating time Within 0.1 s
Ground Fault Display Method Mechanical button
Rated Interrupt-
ing Current
JIS C8371
AC415 V 2.5 kA
AC200 V 5 kA
AC100 V 5 kA
