3 SERVOPACK Specifications and Dimensional Drawings
3.5.3 Load Moment of Inertia
3-20

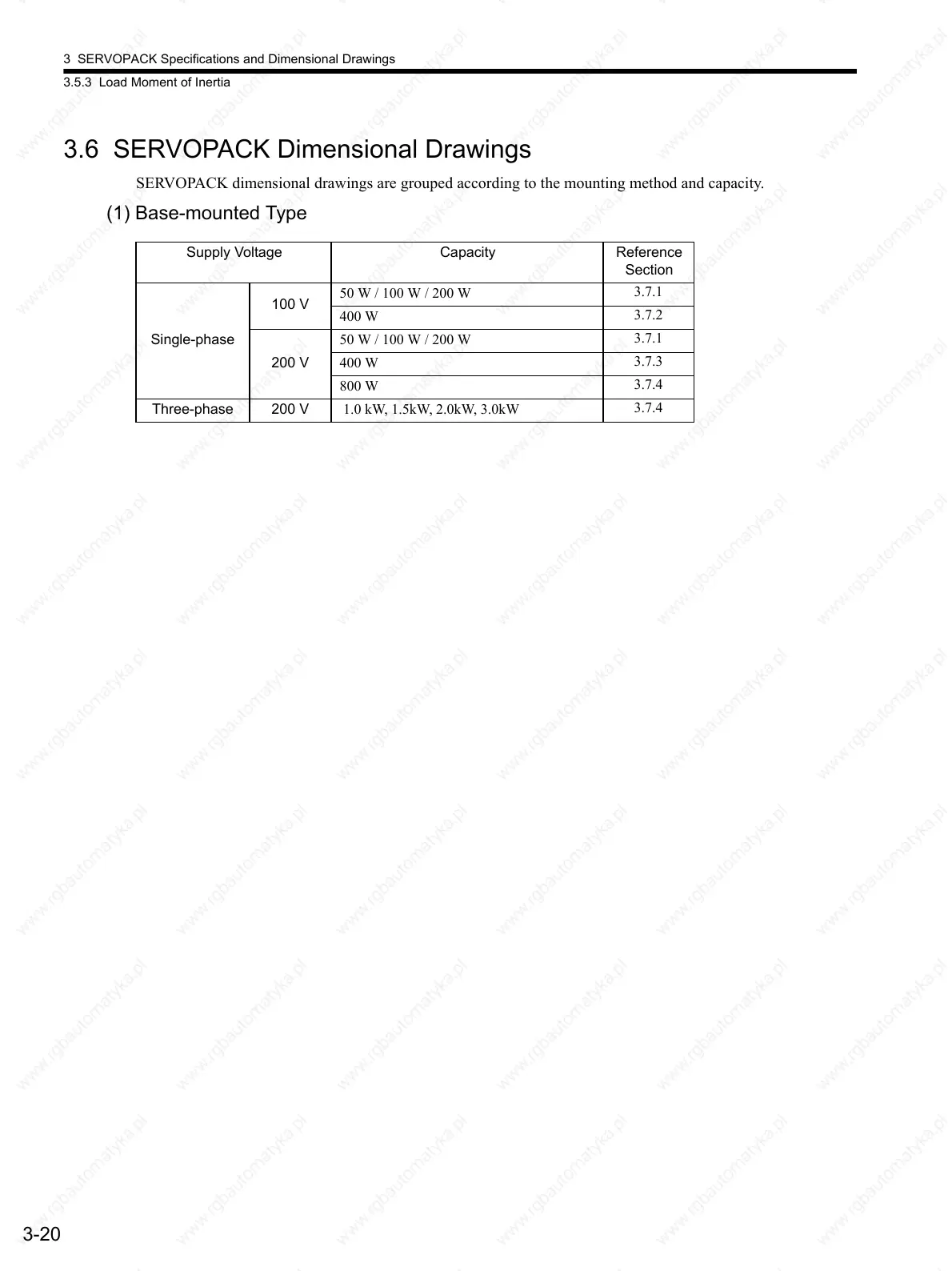

3.6 SERVOPACK Dimensional Drawings
SERVOPACK dimensional drawings are grouped according to the mounting method and capacity.
(1) Base-mounted Type
Supply Voltage Capacity Reference
Section
Single-phase
100 V
50 W / 100 W / 200 W
3.7.1
400 W
3.7.2
200 V
50 W / 100 W / 200 W
3.7.1
400 W
3.7.3
800 W
3.7.4
Three-phase 200 V 1.0 kW, 1.5kW, 2.0kW, 3.0kW
3.7.4
