6 MECHATROLINK II Communications
6.3.10 Disconnection (DISCONNECT: 0FH)
6-16

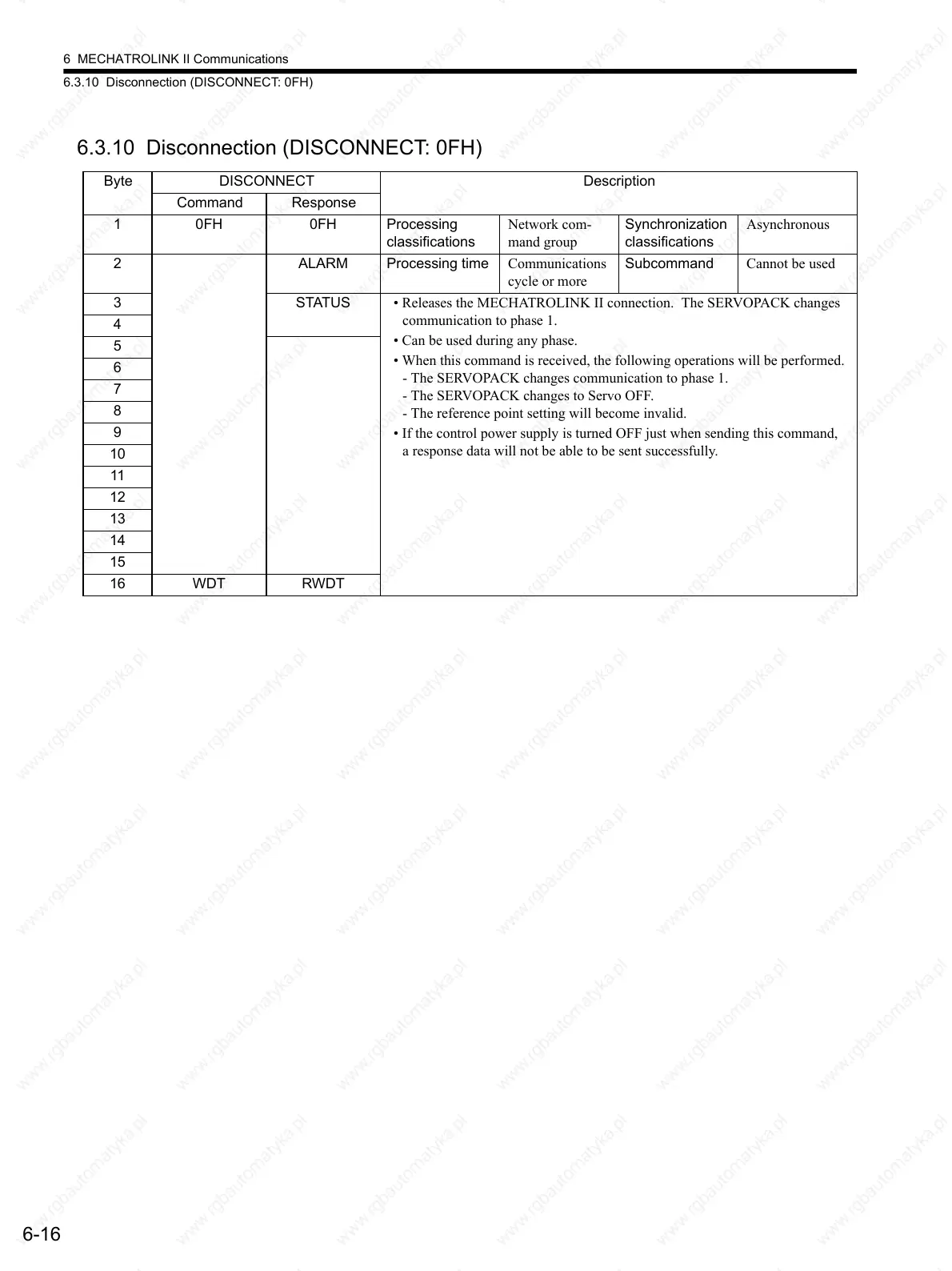

6.3.10 Disconnection (DISCONNECT: 0FH)
Byte DISCONNECT Description
Command Response
1 0FH 0FH Processing
classifications
Network com-
mand group
Synchronization
classifications
Asynchronous
2 ALARM Processing time Communications
cycle or more
Subcommand Cannot be used
3STATUS• Releases the MECHATROLINK II connection. The SERVOPACK changes
communication to phase 1.
• Can be used during any phase.
• When this command is received, the following operations will be performed.
- The SERVOPACK changes communication to phase 1.
- The SERVOPACK changes to Servo OFF.
- The reference point setting will become invalid.
• If the control power supply is turned OFF just when sending this command,
a response data will not be able to be sent successfully.
4
5
6
7
8
9
10
11
12
13
14
15
16 WDT RWDT
