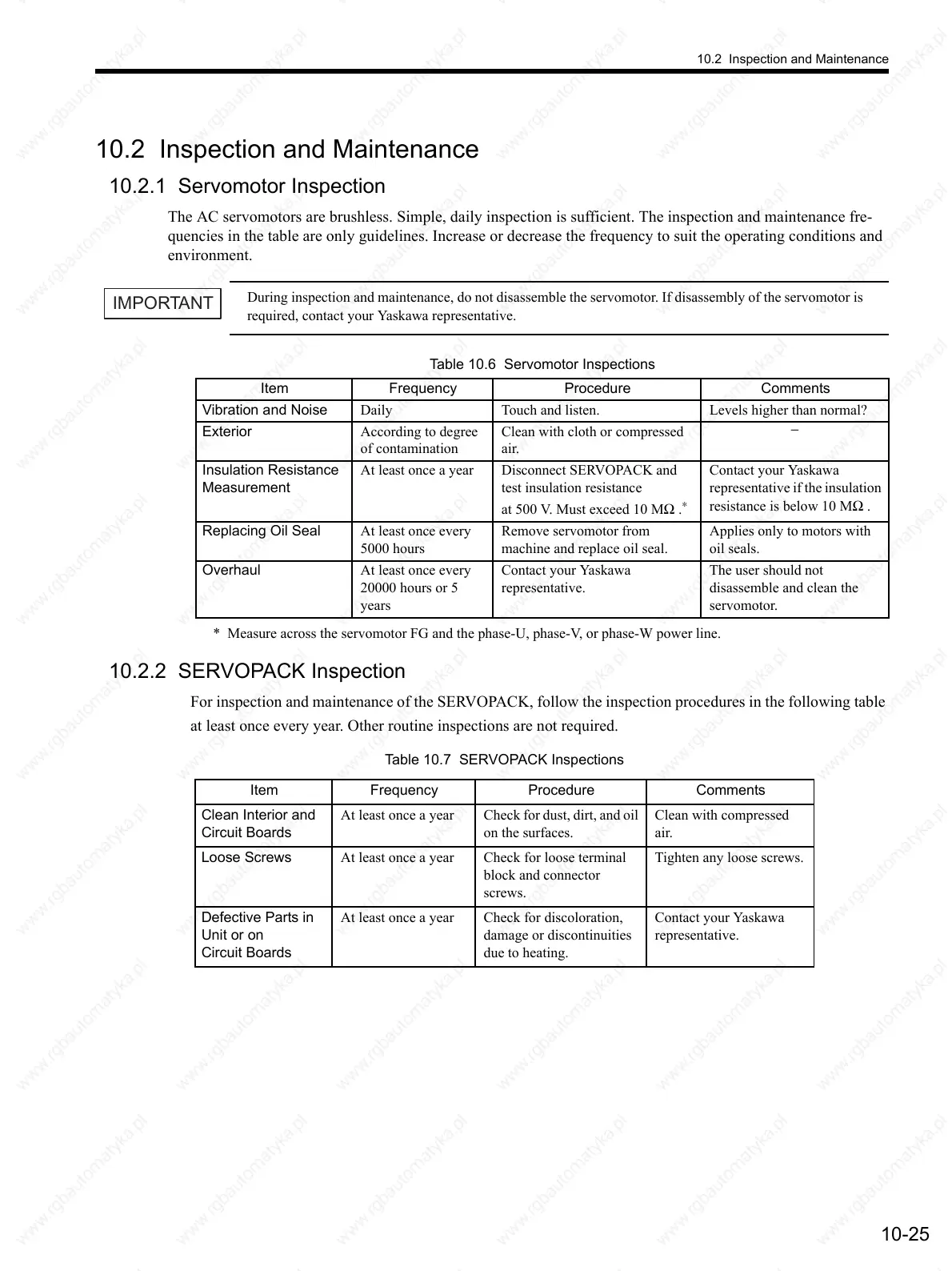

10.2 Inspection and Maintenance
10-25
10.2 Inspection and Maintenance
10.2.1 Servomotor Inspection
The AC servomotors are brushless. Simple, daily inspection is sufficient. The inspection and maintenance fre-
quencies in the table are only guidelines. Increase or decrease the frequency to suit the operating conditions and
environment.
During inspection and maintenance, do not disassemble the servomotor. If disassembly of the servomotor is
required, contact your Yaskawa representative.
* Measure across the servomotor FG and the phase-U, phase-V, or phase-W power line.
10.2.2 SERVOPACK Inspection
For inspection and maintenance of the SERVOPACK, follow the inspection procedures in the following table
at least once every year. Other routine inspections are not required.
Table 10.6 Servomotor Inspections
Item Frequency Procedure Comments
Vibration and Noise Daily Touch and listen. Levels higher than normal?
Exterior According to degree
of contamination
Clean with cloth or compressed
air.
−
Insulation Resistance
Measurement
At least once a year Disconnect SERVOPACK and
test insulation resistance
at 500 V. Must exceed 10 MΩ .
∗
Contact your Yaskawa
representative if the insulation
resistance is below 10 MΩ .
Replacing Oil Seal At least once every
5000 hours
Remove servomotor from
machine and replace oil seal.
Applies only to motors with
oil seals.
Overhaul At least once every
20000 hours or 5
years
Contact your Yaskawa
representative.
The user should not
disassemble and clean the
servomotor.
IMPORTANT
Table 10.7 SERVOPACK Inspections
Item Frequency Procedure Comments
Clean Interior and
Circuit Boards
At least once a year Check for dust, dirt, and oil
on the surfaces.
Clean with compressed
air.
Loose Screws At least once a year Check for loose terminal
block and connector
screws.
Tighten any loose screws.
Defective Parts in
Unit or on
Circuit Boards
At least once a year Check for discoloration,
damage or discontinuities
due to heating.
Contact your Yaskawa
representative.
To Next Page
