4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.4.12 Cable with Connectors at both ends for Fully-closed Control
4-20

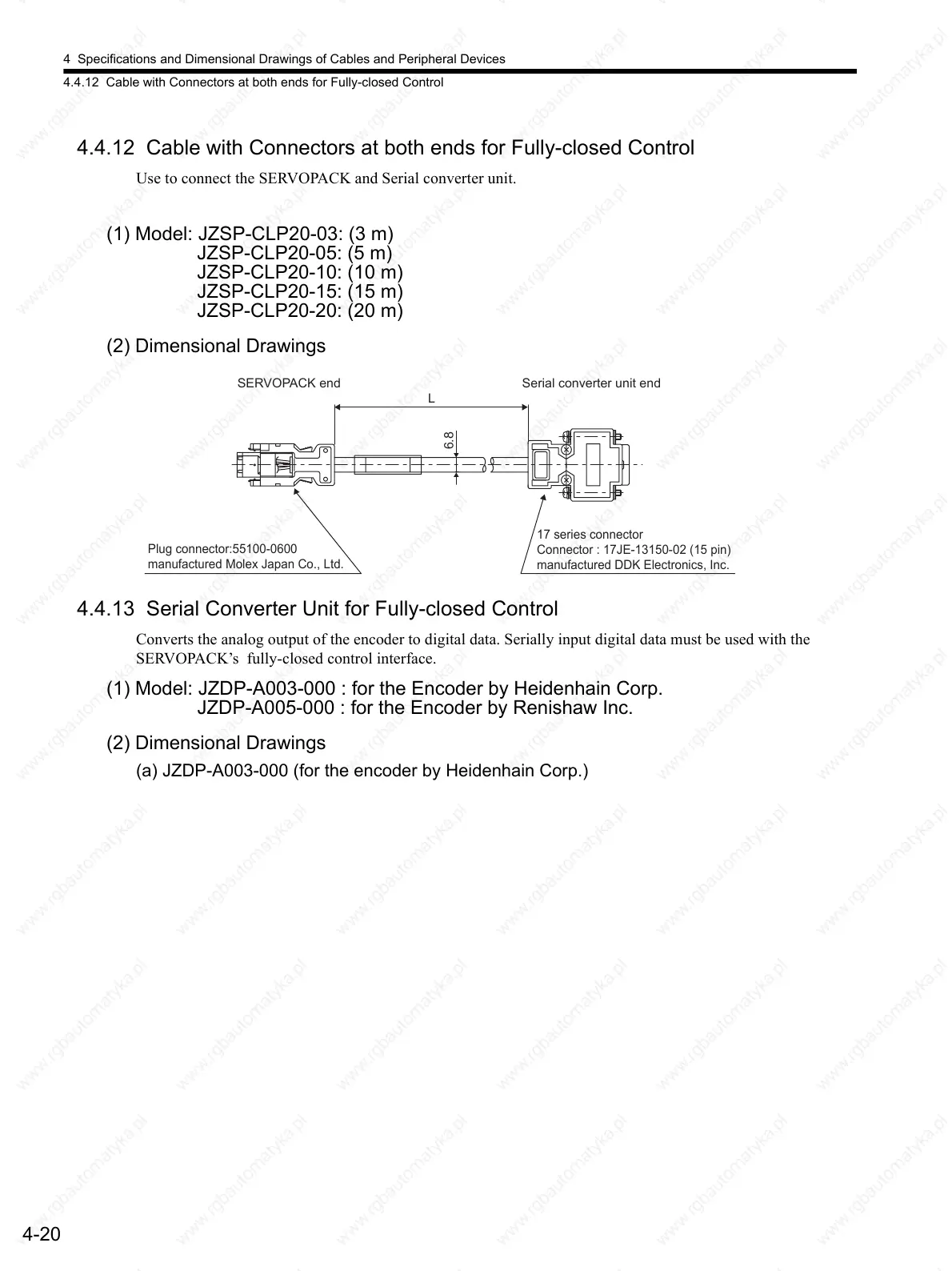

4.4.12 Cable with Connectors at both ends for Fully-closed Control
Use to connect the SERVOPACK and Serial converter unit.
(1) Model: JZSP-CLP20-03: (3 m)
JZSP-CLP20-05: (5 m)
JZSP-CLP20-10: (10 m)
JZSP-CLP20-15: (15 m)
JZSP-CLP20-20: (20 m)
(2) Dimensional Drawings
4.4.13 Serial Converter Unit for Fully-closed Control
Converts the analog output of the encoder to digital data. Serially input digital data must be used with the
SERVOPACK’s fully-closed control interface.
(1) Model: JZDP-A003-000 : for the Encoder by Heidenhain Corp.
JZDP-A005-000 : for the Encoder by Renishaw Inc.
(2) Dimensional Drawings
(a) JZDP-A003-000 (for the encoder by Heidenhain Corp.)
SERVOPACK end Serial converter unit end
L
6.8
Plug connector:55100-0600
manufactured Molex Japan Co., Ltd.
17 series connector
Connector : 17JE-13150-02 (15 pin)
manufactured DDK Electronics, Inc.
To Next Page
