7 Operation

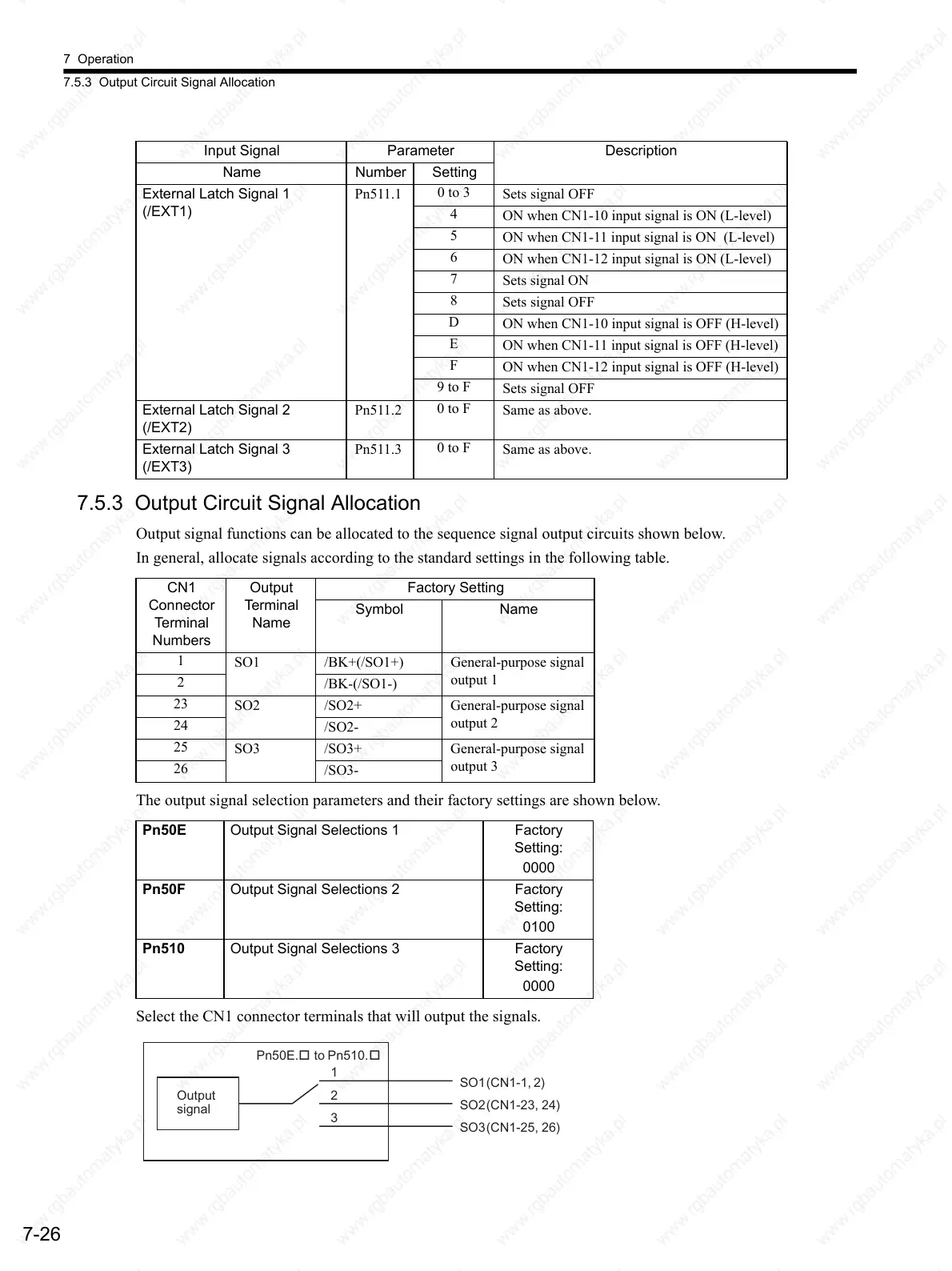

7.5.3 Output Circuit Signal Allocation
7-26
7.5.3 Output Circuit Signal Allocation
Output signal functions can be allocated to the sequence signal output circuits shown below.
In general, allocate signals according to the standard settings in the following table.
The output signal selection parameters and their factory settings are shown below.
Select the CN1 connector terminals that will output the signals.
External Latch Signal 1
(/EXT1)
Pn511.1
0 to 3
Sets signal OFF
4
ON when CN1-10 input signal is ON (L-level)
5
ON when CN1-11 input signal is ON (L-level)
6
ON when CN1-12 input signal is ON (L-level)
7
Sets signal ON
8
Sets signal OFF
D
ON when CN1-10 input signal is OFF (H-level)
E
ON when CN1-11 input signal is OFF (H-level)
F
ON when CN1-12 input signal is OFF (H-level)
9 to F
Sets signal OFF
External Latch Signal 2
(/EXT2)
Pn511.2
0 to F
Same as above.
External Latch Signal 3
(/EXT3)
Pn511.3
0 to F
Same as above.
Input Signal Parameter Description
Name Number Setting
CN1
Connector
Term i n al
Numbers
Output
Terminal
Name
Factory Setting
Symbol Name
1
SO1 /BK+(/SO1+) General-purpose signal
output 1
2
/BK-(/SO1-)
23
SO2 /SO2+ General-purpose signal
output 2
24
/SO2-
25
SO3 /SO3+ General-purpose signal
output 3
26
/SO3-
Pn50E Output Signal Selections 1 Factory
Setting:
0000
Pn50F Output Signal Selections 2 Factory
Setting:
0100
Pn510 Output Signal Selections 3 Factory
Setting:
0000
1
2
3
Output
signal
SO1(CN1-1, 2)
SO2(CN1-23, 24)
SO3(CN1-25, 26)
Pn50E. to Pn510.
