6 MECHATROLINK II Communications

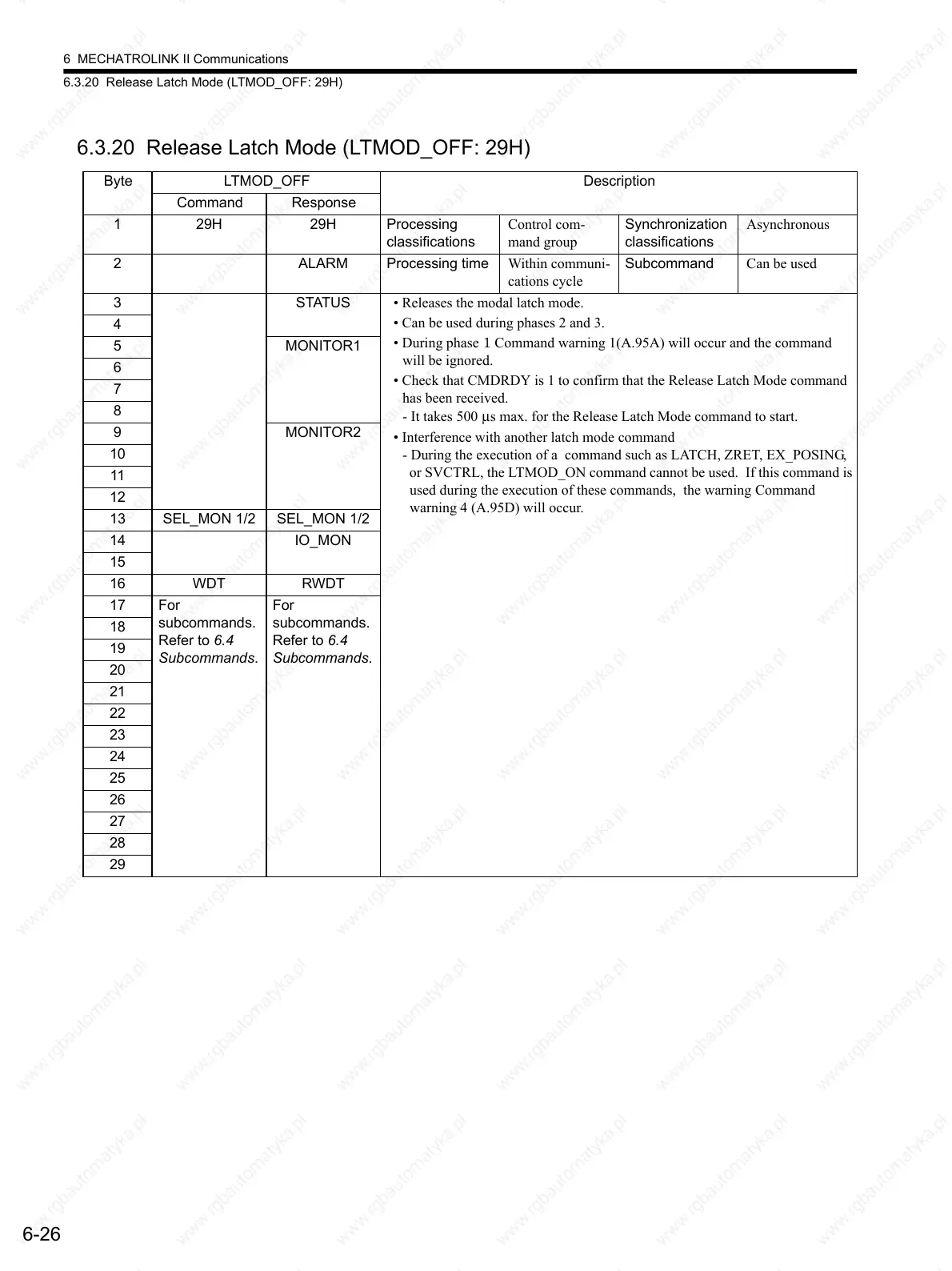

6.3.20 Release Latch Mode (LTMOD_OFF: 29H)
6-26
6.3.20 Release Latch Mode (LTMOD_OFF: 29H)
Byte LTMOD_OFF Description
Command Response
1 29H 29H Processing
classifications
Control com-
mand group
Synchronization
classifications
Asynchronous
2 ALARM Processing time Within communi-
cations cycle
Subcommand Can be used
3STATUS• Releases the modal latch mode.
• Can be used during phases 2 and 3.
• During phase 1 Command warning 1(A.95A) will occur and the command
will be ignored.
• Check that CMDRDY is 1 to confirm that the Release Latch Mode command
has been received.
- It takes 500
µs max. for the Release Latch Mode command to start.
• Interference with another latch mode command
- During the execution of a command such as LATCH, ZRET, EX_POSING,
or SVCTRL, the LTMOD_ON command cannot be used. If this command is
used during the execution of these commands, the warning Command
warning 4 (A.95D) will occur.
4
5 MONITOR1
6
7
8
9 MONITOR2
10
11
12
13 SEL_MON 1/2 SEL_MON 1/2
14 IO_MON
15
16 WDT RWDT
17 For
subcommands.
Refer to 6.4
Subcommands.
For
subcommands.
Refer to 6.4
Subcommands.
18
19
20
21
22
23
24
25
26
27
28
29
To Next Page
