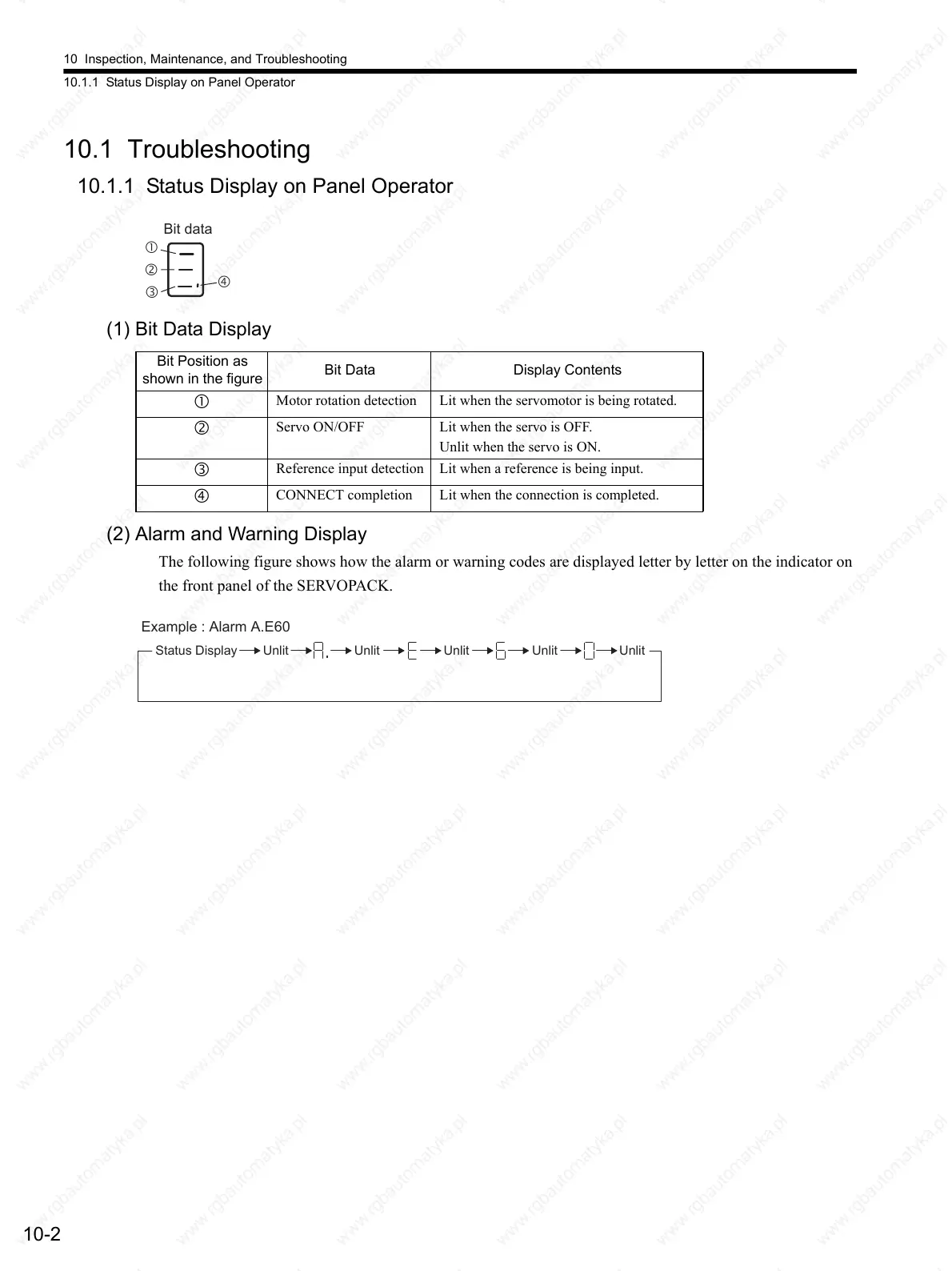

10.1 Troubleshooting
10.1.1 Status Display on Panel Operator
(1) Bit Data Display
(2) Alarm and Warning Display
The following figure shows how the alarm or warning codes are displayed letter by letter on the indicator on
the front panel of the SERVOPACK.
Bit data
Bit Position as
shown in the figure
Bit Data Display Contents
Motor rotation detection Lit when the servomotor is being rotated.
Servo ON/OFF Lit when the servo is OFF.
Unlit when the servo is ON.
Reference input detection Lit when a reference is being input.
CONNECT completion Lit when the connection is completed.
Example : Alarm A.E60
Status Display Unlit Unlit Unlit Unlit Unlit
To Next Page
