7 Operation
7.5.4 Debug Function
7-28

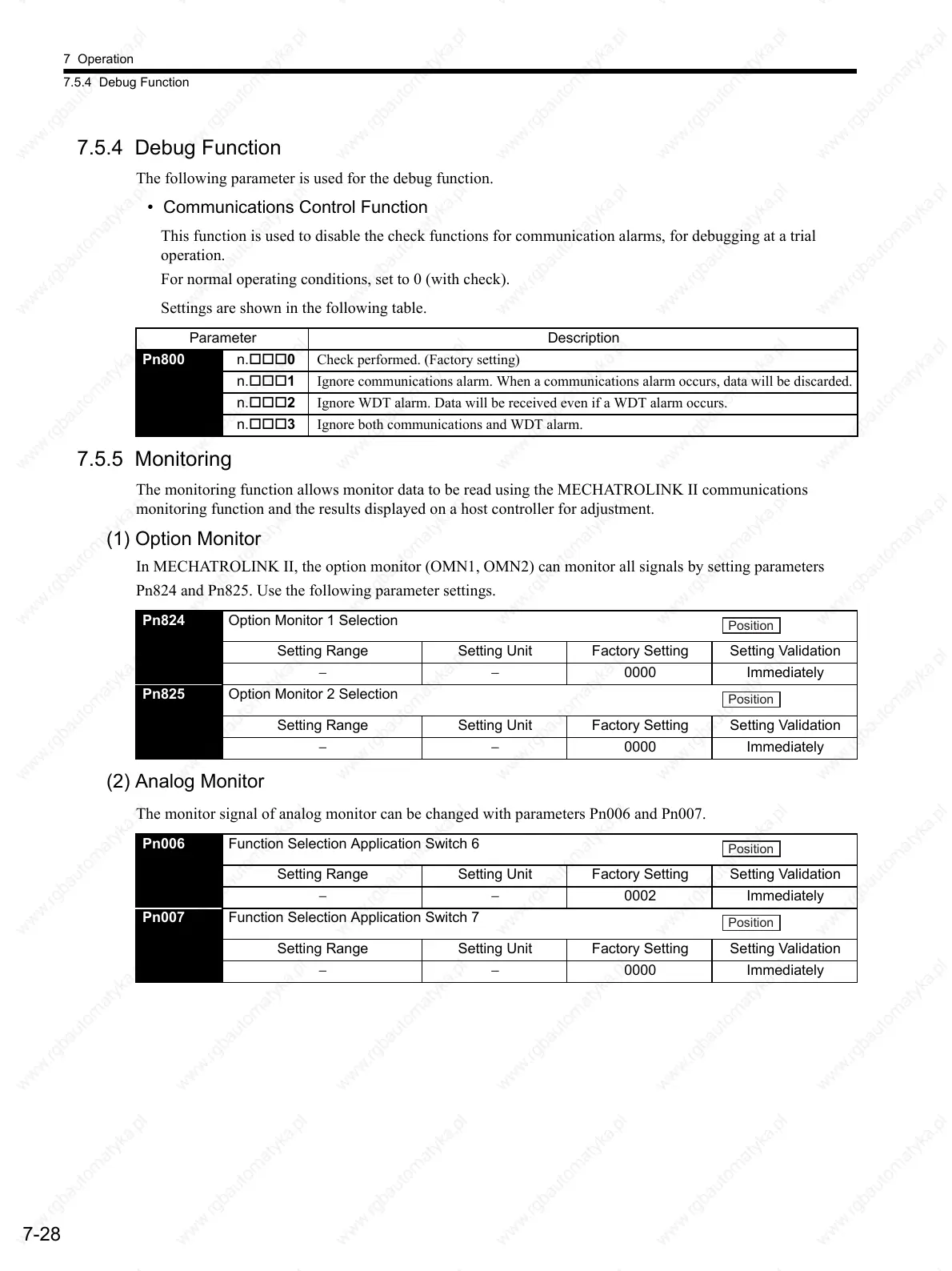

7.5.4 Debug Function
The following parameter is used for the debug function.
• Communications Control Function
This function is used to disable the check functions for communication alarms, for debugging at a trial
operation.
For normal operating conditions, set to 0 (with check).
Settings are shown in the following table.
7.5.5 Monitoring
The monitoring function allows monitor data to be read using the MECHATROLINK II communications
monitoring function and the results displayed on a host controller for adjustment.
(1) Option Monitor
In MECHATROLINK II, the option monitor (OMN1, OMN2) can monitor all signals by setting parameters
Pn824 and Pn825. Use the following parameter settings.
(2) Analog Monitor
The monitor signal of analog monitor can be changed with parameters Pn006 and Pn007.
Parameter Description
Pn800 n.0 Check performed. (Factory setting)
n.1 Ignore communications alarm. When a communications alarm occurs, data will be discarded.
n.2 Ignore WDT alarm. Data will be received even if a WDT alarm occurs.
n.3 Ignore both communications and WDT alarm.
Pn824 Option Monitor 1 Selection
Setting Range Setting Unit Factory Setting Setting Validation
−−0000 Immediately
Pn825 Option Monitor 2 Selection
Setting Range Setting Unit Factory Setting Setting Validation
−−0000 Immediately
Position
Position
Pn006 Function Selection Application Switch 6
Setting Range Setting Unit Factory Setting Setting Validation
−−0002 Immediately
Pn007 Function Selection Application Switch 7
Setting Range Setting Unit Factory Setting Setting Validation
−−0000 Immediately
Position
Position
