5 Wiring

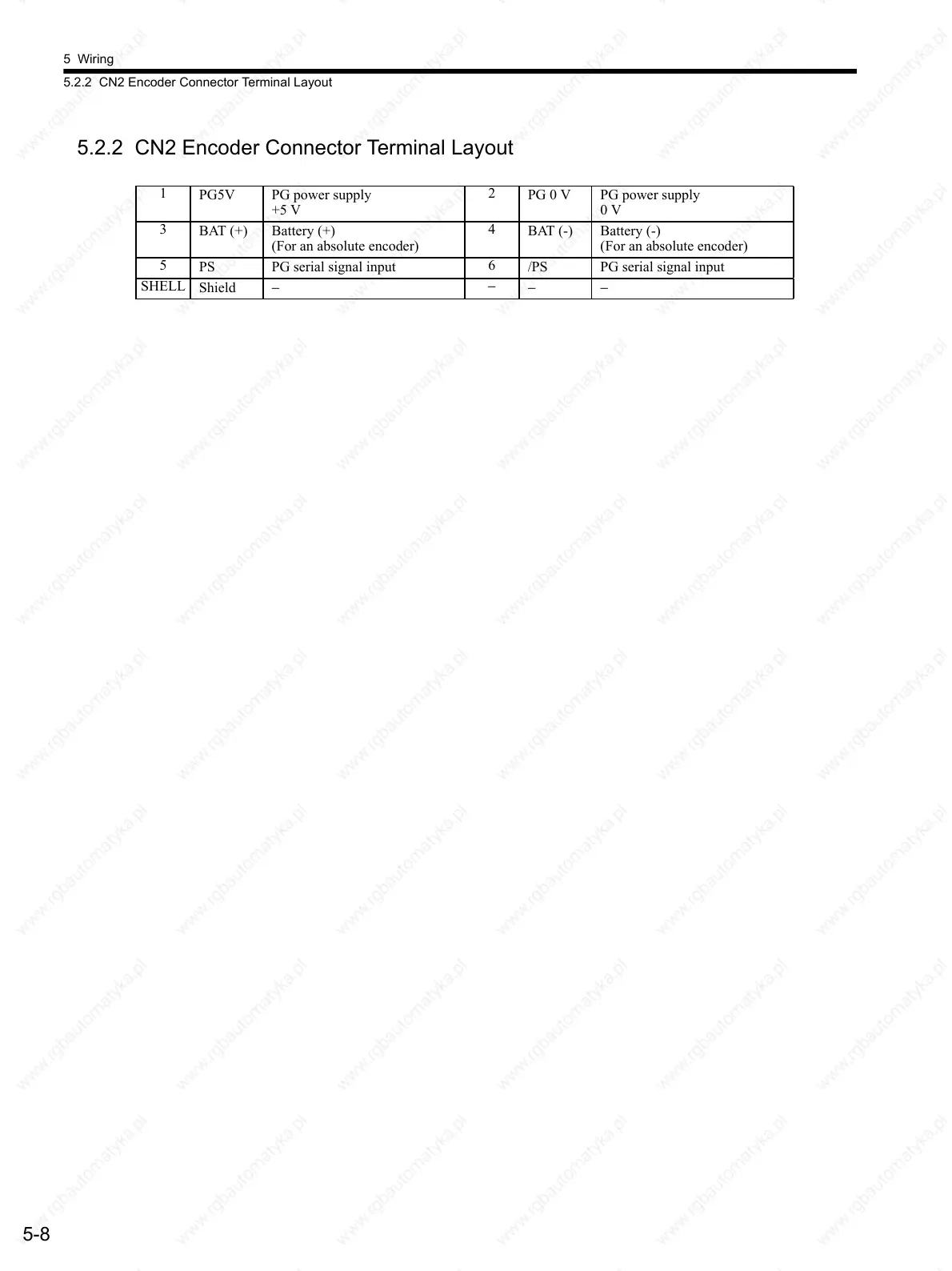

5.2.2 CN2 Encoder Connector Terminal Layout

5-8

5.2.2 CN2 Encoder Connector Terminal Layout

PG5V PG power supply

+5 V

PG 0 V PG power supply

0 V

BAT (+) Battery (+)

(For an absolute encoder)

BAT (-) Battery (-)

(For an absolute encoder)

PS PG serial signal input

/PS PG serial signal input

SHELL

Shield −

−

−−
