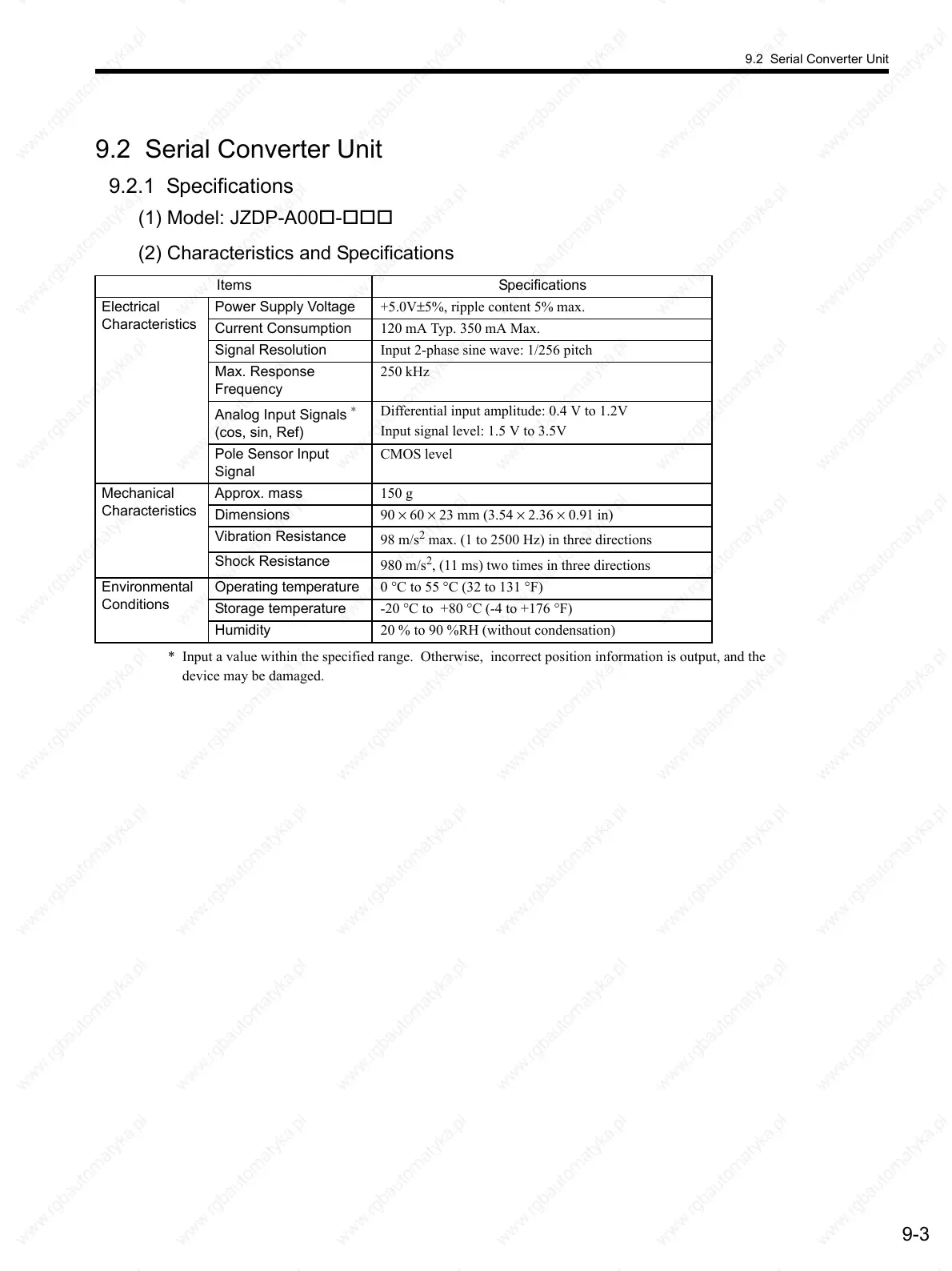

9.2 Serial Converter Unit
9-3
9.2 Serial Converter Unit
9.2.1 Specifications
(1) Model: JZDP-A00-
(2) Characteristics and Specifications
* Input a value within the specified range. Otherwise, incorrect position information is output, and the
device may be damaged.
Items Specifications
Electrical
Characteristics
Power Supply Voltage +5.0V±5%, ripple content 5% max.
Current Consumption 120 mA Typ. 350 mA Max.
Signal Resolution Input 2-phase sine wave: 1/256 pitch
Max. Response
Frequency
250 kHz
Analog Input Signals
∗
(cos, sin, Ref)
Differential input amplitude: 0.4 V to 1.2V
Input signal level: 1.5 V to 3.5V
Pole Sensor Input
Signal
CMOS level
Mechanical
Characteristics
Approx. mass 150 g
Dimensions 90 × 60 × 23 mm (3.54 × 2.36 × 0.91 in)
Vibration Resistance
98 m/s
2
max. (1 to 2500 Hz) in three directions
Shock Resistance
980 m/s
2
, (11 ms) two times in three directions
Environmental
Conditions
Operating temperature 0 °C to 55 °C (32 to 131 °F)
Storage temperature -20 °C to +80 °C (-4 to +176 °F)
Humidity 20 % to 90 %RH (without condensation)
