9.2 Serial Converter Unit
9-7

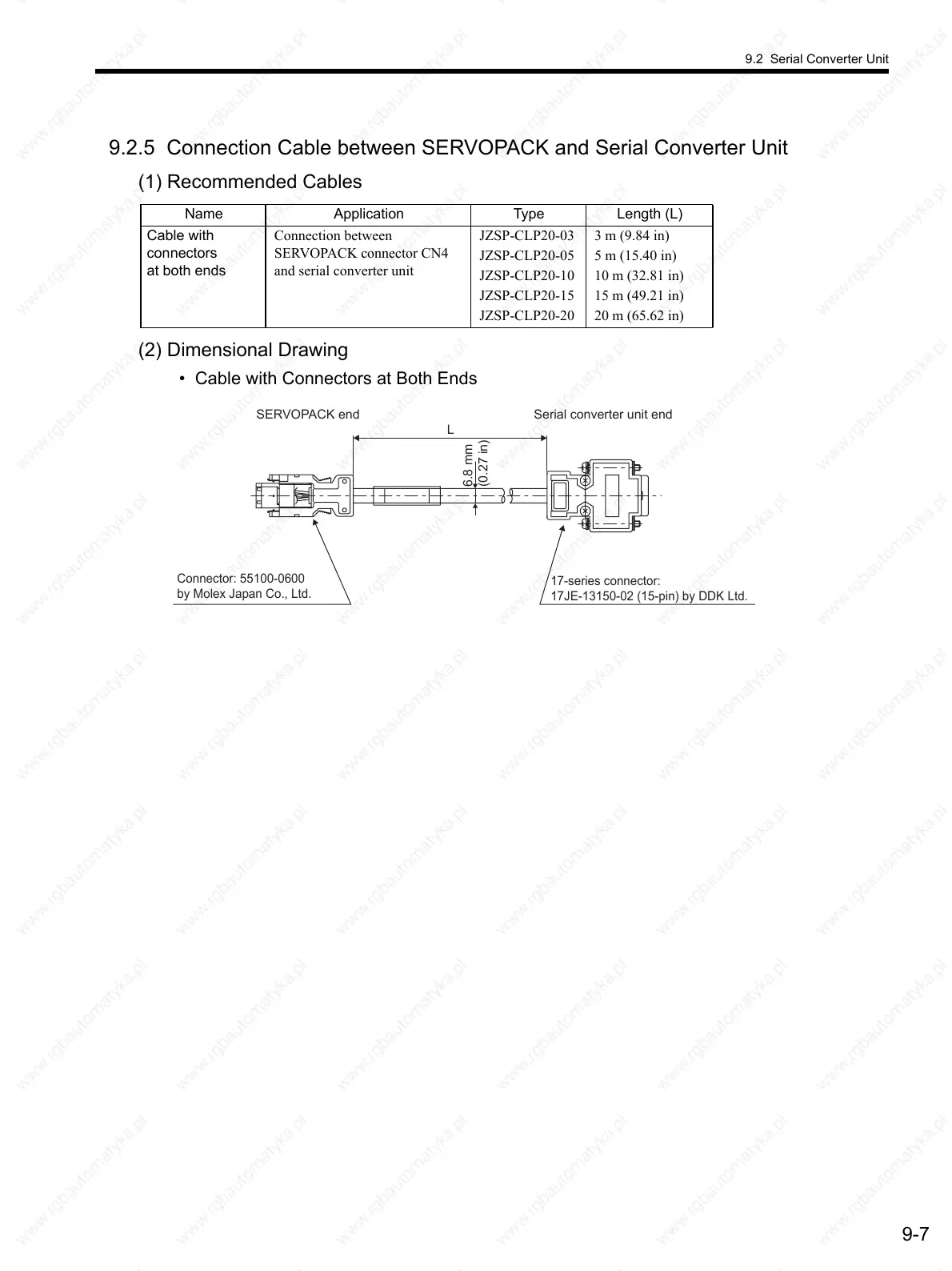

9.2.5 Connection Cable between SERVOPACK and Serial Converter Unit
(1) Recommended Cables
(2) Dimensional Drawing
• Cable with Connectors at Both Ends
Name Application Type Length (L)
Cable with
connectors
at both ends
Connection between
SERVOPACK connector CN4
and serial converter unit
JZSP-CLP20-03
JZSP-CLP20-05
JZSP-CLP20-10
JZSP-CLP20-15
JZSP-CLP20-20
3 m (9.84 in)
5 m (15.40 in)
10 m (32.81 in)
15 m (49.21 in)
20 m (65.62 in)
Serial converter unit end
SERVOPACK end
L
6.8 mm
(0.27 in)
Connector: 55100-0600
by Molex Japan Co., Ltd.
17-series connector:
17JE-13150-02 (15-pin) by DDK Ltd.
To Next Page
