2.5 Selecting Peripheral Devices
2-27

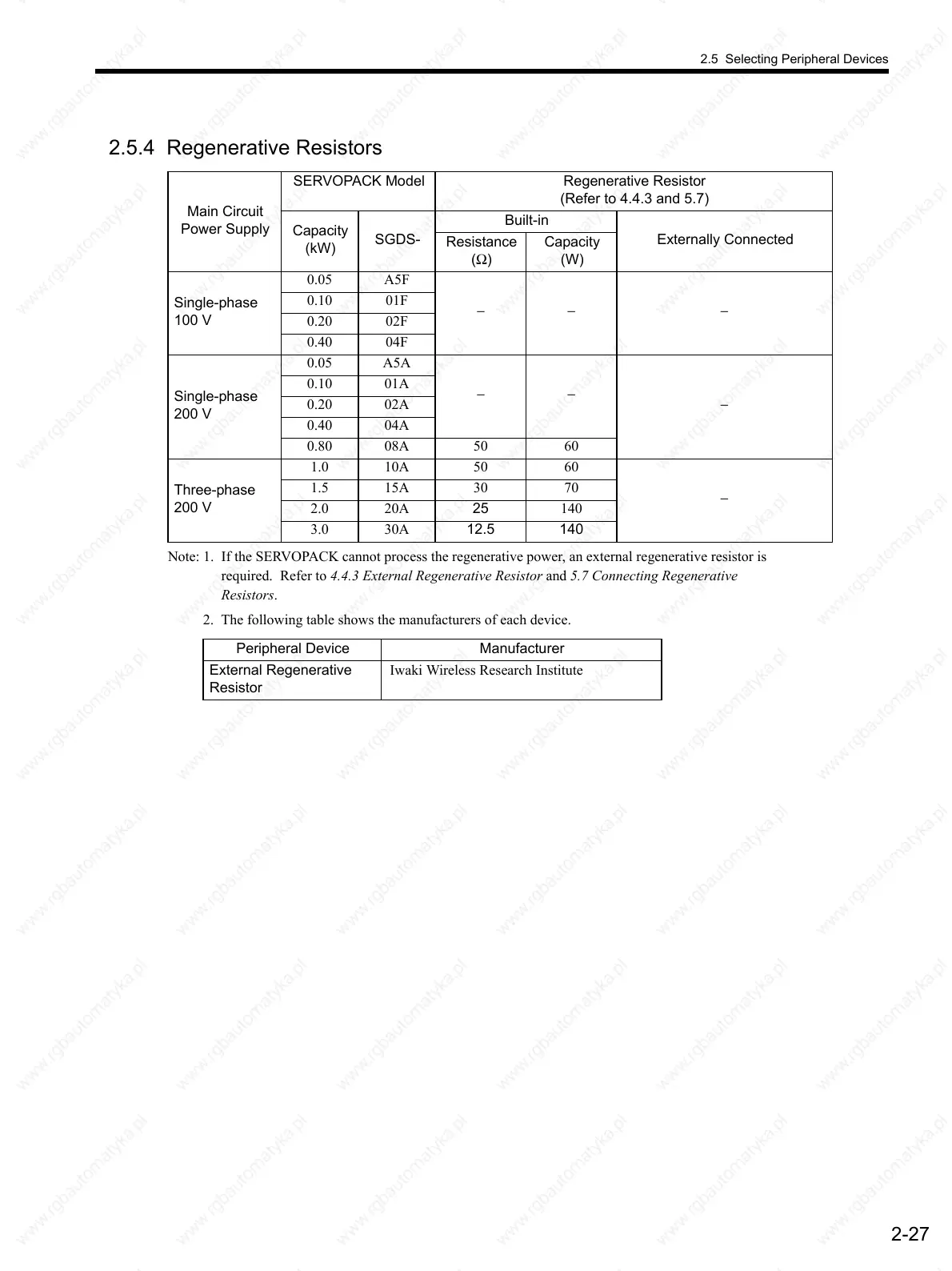

2.5.4 Regenerative Resistors
Note: 1. If the SERVOPACK cannot process the regenerative power, an external regenerative resistor is
required. Refer to 4.4.3 External Regenerative Resistor and 5.7 Connecting Regenerative
Resistors.
2. The following table shows the manufacturers of each device.
Main Circuit
Power Supply
SERVOPACK Model Regenerative Resistor
(Refer to 4.4.3 and 5.7)
Capacity
(kW)
SGDS-
Built-in
Externally Connected
Resistance
(Ω)
Capacity
(W)
Single-phase
100 V
0.05 A5F
−− −
0.10 01F
0.20 02F
0.40 04F
Single-phase
200 V
0.05 A5A
−−
−
0.10 01A
0.20 02A
0.40 04A
0.80 08A 50 60
Three-phase
200 V
1.0 10A 50 60
−
1.5 15A 30 70
2.0 20A 25 140
3.0 30A 12.5 140
Peripheral Device Manufacturer
External Regenerative
Resistor
Iwaki Wireless Research Institute
