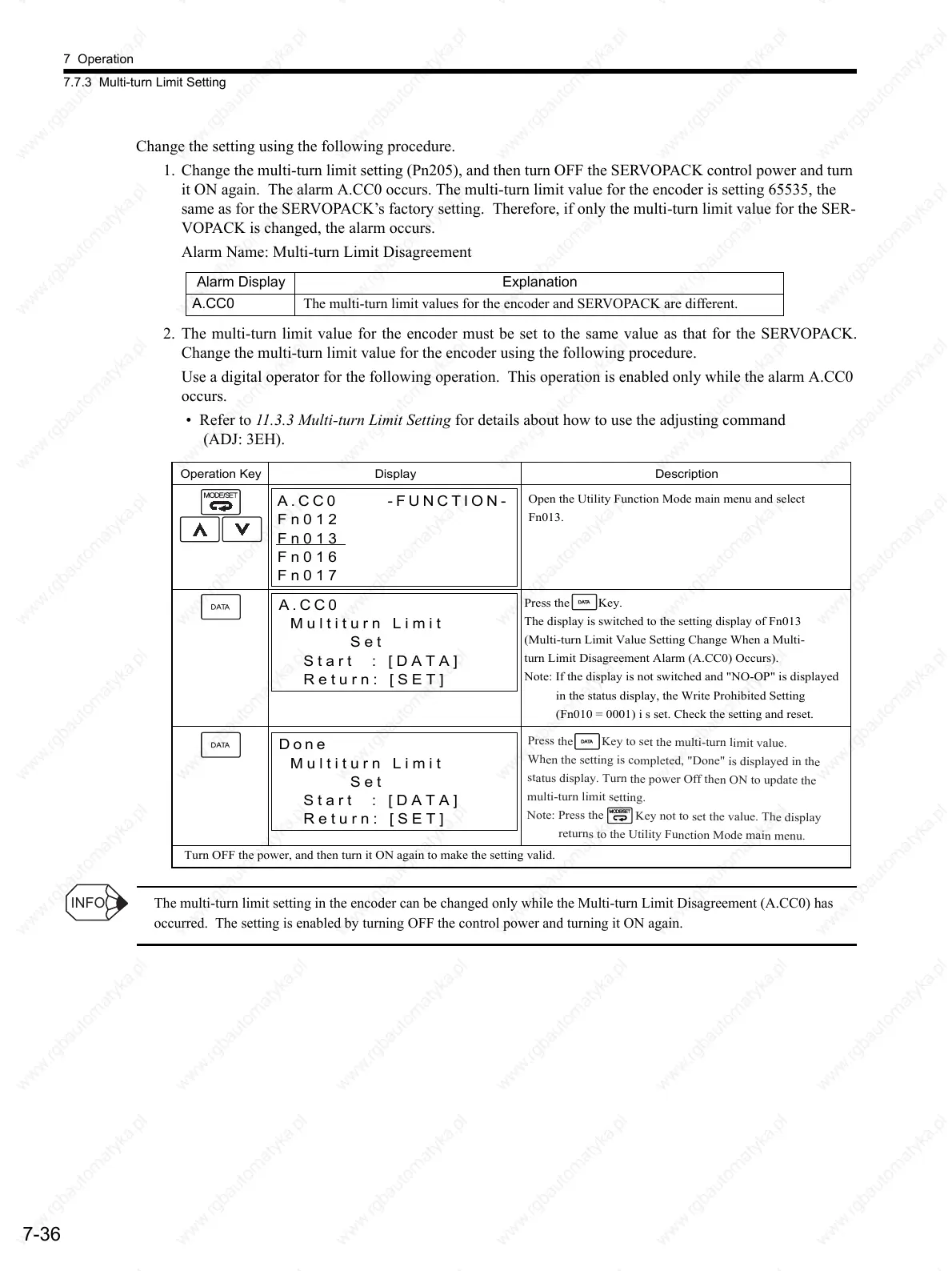

7 Operation
7.7.3 Multi-turn Limit Setting
7-36
Change the setting using the following procedure.
1. Change the multi-turn limit setting (Pn205), and then turn OFF the SERVOPACK control power and turn
it ON again. The alarm A.CC0 occurs. The multi-turn limit value for the encoder is setting 65535, the
same as for the SERVOPACK’s factory setting. Therefore, if only the multi-turn limit value for the SER-
VOPACK is changed, the alarm occurs.
Alarm Name: Multi-turn Limit Disagreement
2. The multi-turn limit value for the encoder must be set to the same value as that for the SERVOPACK.
Change the multi-turn limit value for the encoder using the following procedure.
Use a digital operator for the following operation. This operation is enabled only while the alarm A.CC0
occurs.
• Refer to 11.3.3 Multi-turn Limit Setting for details about how to use the adjusting command
(ADJ: 3EH).
The multi-turn limit setting in the encoder can be changed only while the Multi-turn Limit Disagreement (A.CC0) has
occurred. The setting is enabled by turning OFF the control power and turning it ON again.
Alarm Display Explanation
A.CC0 The multi-turn limit values for the encoder and SERVOPACK are different.
A.CC0
-FUNCTION-
Fn012
Fn013
Fn016
Fn017
A.CC0
Multiturn Limit
Set
Start : [DATA]
Return: [SET]
Done
Multiturn Limit
Set
Start : [DATA]
Return: [SET]
Operation Key DescriptionDisplay
Open the Utility Function Mode main menu and select
Fn013.
Turn OFF the power, and then turn it ON again to make the setting valid.
Press the Key.
The display is switched to the setting display of Fn013
(Multi-turn Limit Value Setting Change When a Multi-
turn Limit Disagreement Alarm (A.CC0) Occurs).
Note: If the display is not switched and "NO-OP" is displayed
in the status display, the Write Prohibited Setting
(Fn010 = 0001) i s set. Check the setting and reset.
Press the Key to set the multi-turn limit value.
When the setting is completed, "Done" is displayed in the
status display. Turn the power Off then ON to update the
multi-turn limit setting.
Note: Press the Key not to set the value. The display
returns to the Utility Function Mode main menu.
INFO
