YASKAWA SGDS-***12A Series User Manual

2.5 Selecting Peripheral Devices
2-23

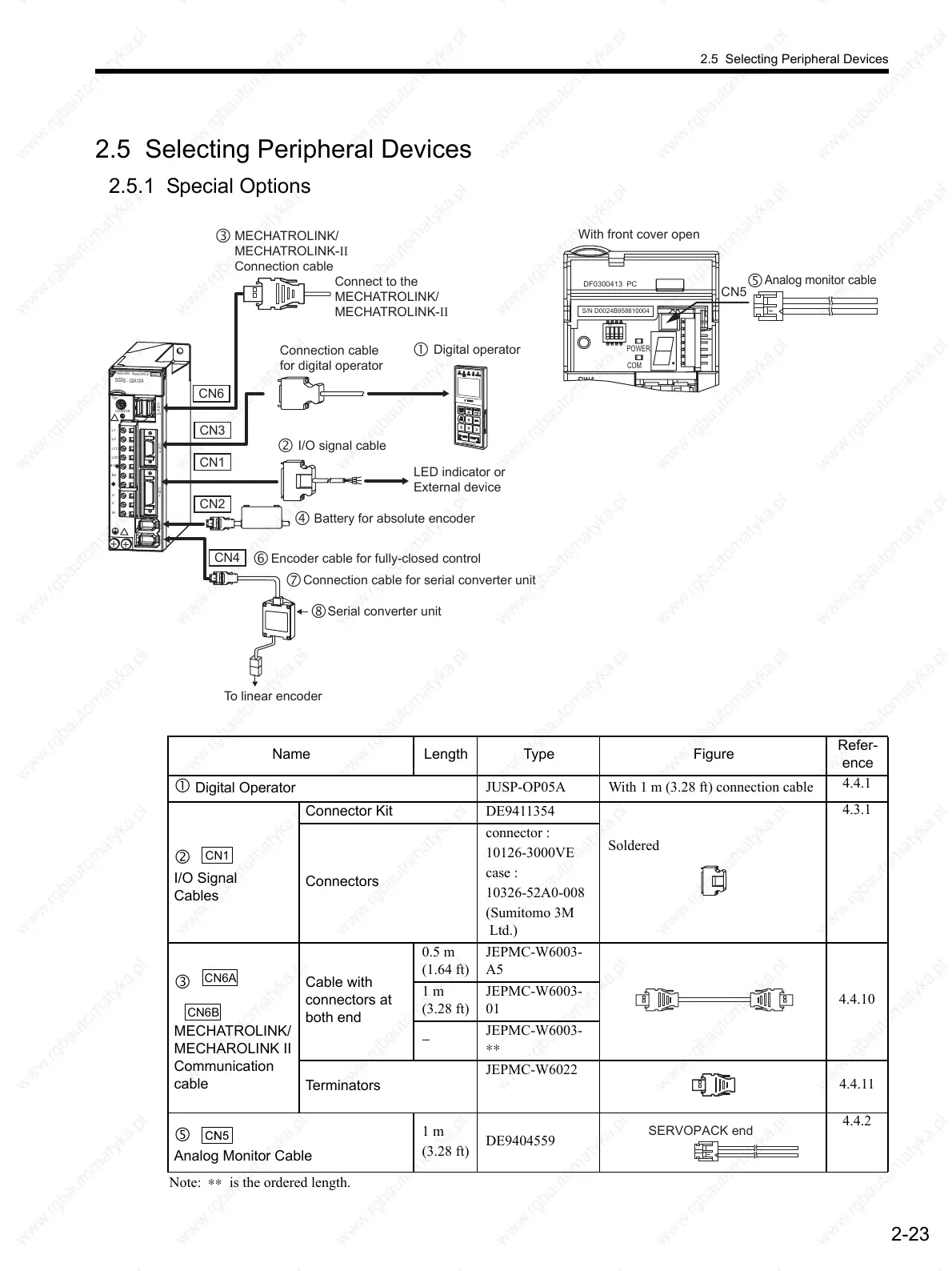

2.5 Selecting Peripheral Devices
2.5.1 Special Options


CN3
CN1
CN2
Connection cable for serial converter unit
Encoder cable for fully-closed control


CN6
Connect to the
MECHATROLINK/
MECHATROLINK-II
MECHATROLINK/
MECHATROLINK-II
Connection cable
CN4
Serial converter unit
To linear encoder
LED indicator or
External device
YASKAWA SERVOPACK
200V
SGDS - 02A12A
C
N
3
C
N
6
C
N
1
A/B
C
N
2
C
N
4
SW1
CHARGE
L1
L1C
L2C
B1/
B2
U
V
W
L2



Connection cable
for digital operator
Digital operator
I/O signal cable
Battery for absolute encoder

CN5
DF0300413 PC
ON
1
POWER
COM
S/N D0024B958810004
With front cover open
Analog monitor cable
Name Length Type Figure
Refer-
ence
 Digital Operator
JUSP-OP05A With 1 m (3.28 ft) connection cable
4.4.1

I/O Signal
Cables
Connector Kit DE9411354
Soldered
4.3.1
Connectors
connector :
10126-3000VE
case :
10326-52A0-008
(Sumitomo 3M
Ltd.)

MECHATROLINK/
MECHAROLINK II
Communication
cable
Cable with
connectors at
both end
0.5 m
(1.64 ft)
JEPMC-W6003-
A5
4.4.10
1 m
(3.28 ft)
JEPMC-W6003-
01
−
JEPMC-W6003-
∗∗
Terminators
JEPMC-W6022
4.4.11

Analog Monitor Cable
1 m
(3.28 ft)
DE9404559
4.4.2
Note: ∗∗ is the ordered length.
CN1
CN6A
CN6B
CN5
SERVOPACK end
