10.1 Troubleshooting
10-3

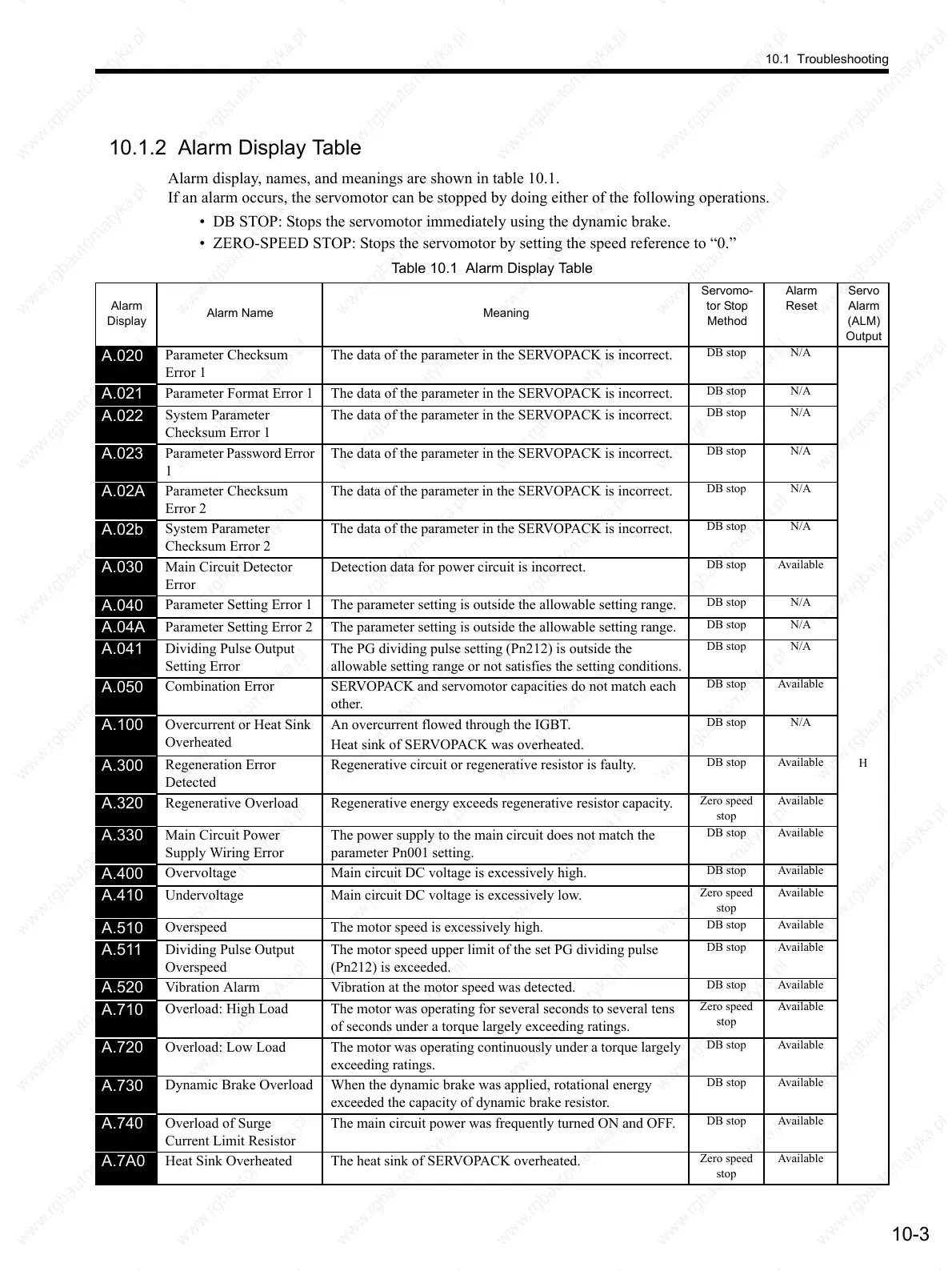

10.1.2 Alarm Display Table
Alarm display, names, and meanings are shown in table 10.1.
If an alarm occurs, the servomotor can be stopped by doing either of the following operations.
• DB STOP: Stops the servomotor immediately using the dynamic brake.
• ZERO-SPEED STOP: Stops the servomotor by setting the speed reference to “0.”
Table 10.1 Alarm Display Table
Alarm
Display
Alarm Name Meaning
Servomo-
tor Stop
Method
Alarm
Reset
Servo
Alarm
(ALM)
Output
A.020
Parameter Checksum
Error 1
The data of the parameter in the SERVOPACK is incorrect.
DB stop N/A
H
A.021
Parameter Format Error 1 The data of the parameter in the SERVOPACK is incorrect.
DB stop N/A
A.022
System Parameter
Checksum Error 1
The data of the parameter in the SERVOPACK is incorrect.
DB stop N/A
A.023
Parameter Password Error
1
The data of the parameter in the SERVOPACK is incorrect.
DB stop N/A
A.02A
Parameter Checksum
Error 2
The data of the parameter in the SERVOPACK is incorrect.
DB stop N/A
A.02b
System Parameter
Checksum Error 2
The data of the parameter in the SERVOPACK is incorrect.
DB stop N/A
A.030
Main Circuit Detector
Error
Detection data for power circuit is incorrect.
DB stop Available
A.040
Parameter Setting Error 1 The parameter setting is outside the allowable setting range.
DB stop N/A
A.04A
Parameter Setting Error 2 The parameter setting is outside the allowable setting range.
DB stop N/A
A.041
Dividing Pulse Output
Setting Error
The PG dividing pulse setting (Pn212) is outside the
allowable setting range or not satisfies the setting conditions.
DB stop N/A
A.050
Combination Error SERVOPACK and servomotor capacities do not match each
other.
DB stop Available
A.100
Overcurrent or Heat Sink
Overheated
An overcurrent flowed through the IGBT.
Heat sink of SERVOPACK was overheated.
DB stop N/A
A.300
Regeneration Error
Detected
Regenerative circuit or regenerative resistor is faulty.
DB stop Available
A.320
Regenerative Overload Regenerative energy exceeds regenerative resistor capacity.
Zero speed
stop
Available
A.330
Main Circuit Power
Supply Wiring Error
The power supply to the main circuit does not match the
parameter Pn001 setting.
DB stop Available
A.400
Overvoltage Main circuit DC voltage is excessively high.
DB stop Available
A.410
Undervoltage Main circuit DC voltage is excessively low.
Zero speed
stop
Available
A.510
Overspeed The motor speed is excessively high.
DB stop Available
A.511
Dividing Pulse Output
Overspeed
The motor speed upper limit of the set PG dividing pulse
(Pn212) is exceeded.
DB stop Available
A.520
Vibration Alarm Vibration at the motor speed was detected.
DB stop Available
A.710
Overload: High Load The motor was operating for several seconds to several tens
of seconds under a torque largely exceeding ratings.
Zero speed
stop
Available
A.720
Overload: Low Load The motor was operating continuously under a torque largely
exceeding ratings.
DB stop Available
A.730
Dynamic Brake Overload When the dynamic brake was applied, rotational energy
exceeded the capacity of dynamic brake resistor.
DB stop Available
A.740
Overload of Surge
Current Limit Resistor
The main circuit power was frequently turned ON and OFF.
DB stop Available
A.7A0
Heat Sink Overheated The heat sink of SERVOPACK overheated.
Zero speed
stop
Available
