YASKAWA SGDS-***12A Series User Manual

2 System Selection
2.5.3 Noise Filters, Magnetic Contactors, Surge Protectors and AC/DC Reactors
2-26

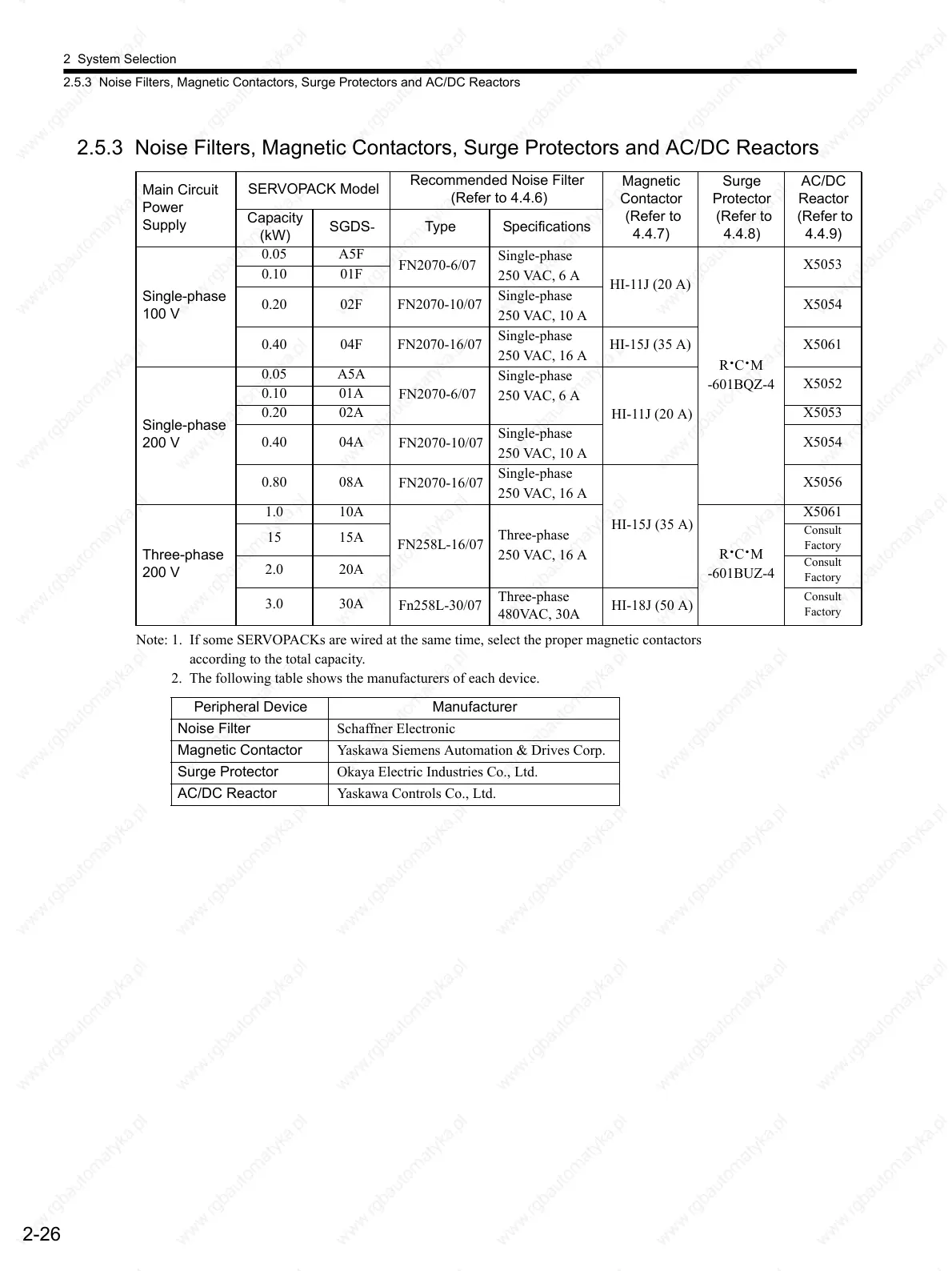

2.5.3 Noise Filters, Magnetic Contactors, Surge Protectors and AC/DC Reactors
Note: 1. If some SERVOPACKs are wired at the same time, select the proper magnetic contactors
according to the total capacity.
2. The following table shows the manufacturers of each device.
Main Circuit
Power
Supply
SERVOPACK Model
Recommended Noise Filter
(Refer to 4.4.6)
Magnetic
Contactor
(Refer to
4.4.7)
Surge
Protector
(Refer to
4.4.8)
AC/DC
Reactor
(Refer to
4.4.9)
Capacity
(kW)
SGDS
-
Type Specifications
Single-phase
100 V
0.05 A5F
FN2070-6/07
Single-phase
250 VAC, 6 A
HI-11J (20 A)
R
CM
-601BQZ-4
X5053
0.10 01F
0.20 02F FN2070-10/07
Single-phase
250 VAC, 10 A
X5054
0.40 04F FN2070-16/07
Single-phase
250 VAC, 16 A
HI-15J (35 A) X5061
Single-phase
200 V
0.05 A5A
FN2070-6/07
Single-phase
250 VAC, 6 A
HI-11J (20 A)
X5052
0.10 01A
0.20 02A X5053
0.40 04A
FN2070-10/07
Single-phase
250 VAC, 10 A
X5054
0.80 08A
FN2070-16/07
Single-phase
250 VAC, 16 A
HI-15J (35 A)
X5056
Three-phase
200 V
1.0 10A
FN258L-16/07
Three-phase
250 VAC, 16 A
R
CM
-601BUZ-4
X5061
15 15A
Consult
Factory
2.0 20A
Consult
Factory
3.0 30A
Fn258L-30/07
Three-phase
480VAC, 30A
HI-18J (50 A)
Consult
Factory
Peripheral Device Manufacturer
Noise Filter Schaffner Electronic
Magnetic Contactor Yaskawa Siemens Automation & Drives Corp.
Surge Protector Okaya Electric Industries Co., Ltd.
AC/DC Reactor Yaskawa Controls Co., Ltd.
