4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.2.1 Spring Type (Standard)
4-4

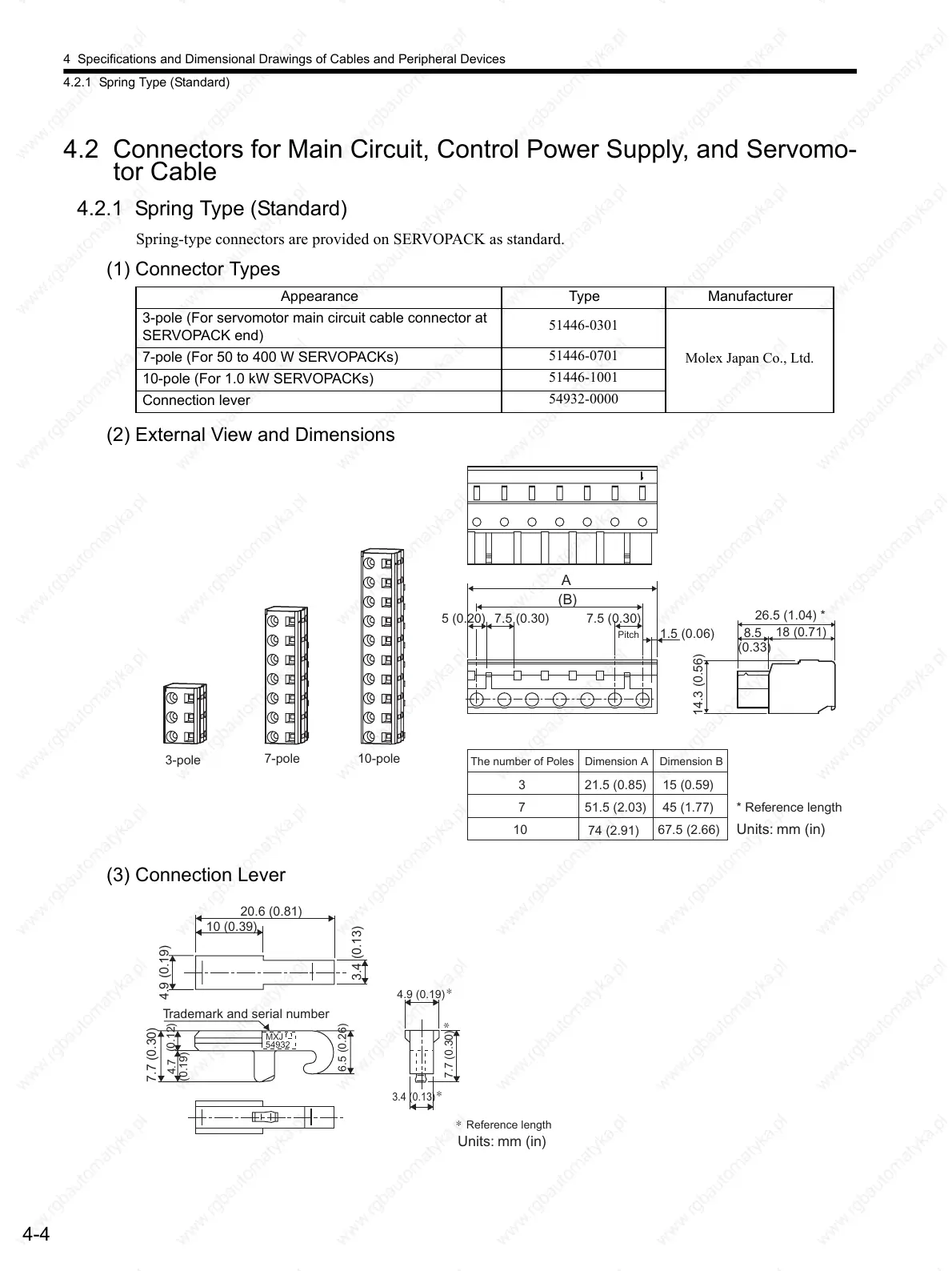

4.2 Connectors for Main Circuit, Control Power Supply, and Servomo-
tor Cable
4.2.1 Spring Type (Standard)
Spring-type connectors are provided on SERVOPACK as standard.
(1) Connector Types
(2) External View and Dimensions
(3) Connection Lever
Appearance Type Manufacturer
3-pole (For servomotor main circuit cable connector at
SERVOPACK end)
51446-0301
Molex Japan Co., Ltd.
7-pole (For 50 to 400 W SERVOPACKs)
51446-0701
10-pole (For 1.0 kW SERVOPACKs)
51446-1001
Connection lever
54932-0000
3-pole
7-pole
10-pole
The number of Poles
Dimension A
3 21.5 (0.85)
Dimension B
15 (0.59)
7 51.5 (2.03) 45 (1.77)
10
74 (2.91)
67.5 (2.66)
5 (0.20)
(B)
Units: mm (in)
* Reference length
A
7.5 (0.30)
7.5 (0.30)
14.3 (0.56)
1.5 (0.06)
26.5 (1.04) *
8.5
(0.33)
18 (0.71)
Pitch
3.4 (0.13)
4.9 (0.19)
7.7 (0.30)
4.7
(0.19)
6.5 (0.26)
(0.12)
20.6 (0.81)
10 (0.39)
MXJ
54932
Trademark and serial number
3.4 (0.13)
7.7 (0.30)
4.9 (0.19)
Units: mm (in)
∗
Reference length
∗
∗
∗
