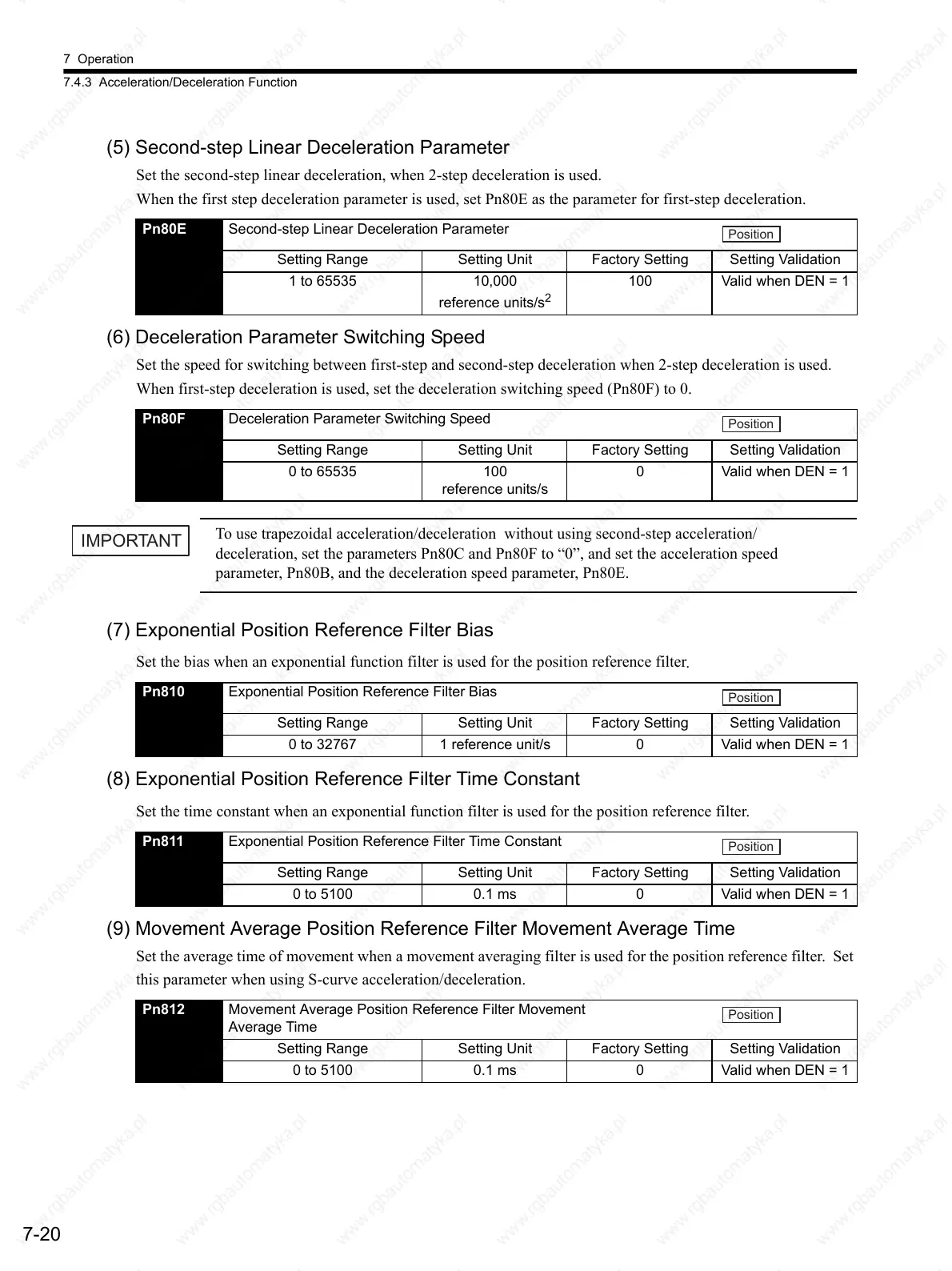

7 Operation
7.4.3 Acceleration/Deceleration Function
7-20
(5) Second-step Linear Deceleration Parameter
Set the second-step linear deceleration, when 2-step deceleration is used.
When the first step deceleration parameter is used, set Pn80E as the parameter for first-step deceleration.
(6) Deceleration Parameter Switching Speed
Set the speed for switching between first-step and second-step deceleration when 2-step deceleration is used.
When first-step deceleration is used, set the deceleration switching speed (Pn80F) to 0.
To use trapezoidal acceleration/deceleration without using second-step acceleration/
deceleration, set the parameters Pn80C and Pn80F to “0”, and set the acceleration speed
parameter, Pn80B, and the deceleration speed parameter, Pn80E.
(7) Exponential Position Reference Filter Bias
Set the bias when an exponential function filter is used for the position reference filter
.
(8) Exponential Position Reference Filter Time Constant
Set the time constant when an exponential function filter is used for the position reference filter
.
(9) Movement Average Position Reference Filter Movement Average Time
Set the average time of movement when a movement averaging filter is used for the position reference filter. Set
this parameter when using S-curve acceleration/deceleration.
Pn80E Second-step Linear Deceleration Parameter
Setting Range Setting Unit Factory Setting Setting Validation
1 to 65535 10,000
reference units/s
2
100 Valid when DEN = 1
Position
Pn80F Deceleration Parameter Switching Speed
Setting Range Setting Unit Factory Setting Setting Validation
0 to 65535 100
reference units/s
0 Valid when DEN = 1
Position
IMPORTANT
Pn810 Exponential Position Reference Filter Bias
Setting Range Setting Unit Factory Setting Setting Validation
0 to 32767 1 reference unit/s 0 Valid when DEN = 1
Position
Pn811 Exponential Position Reference Filter Time Constant
Setting Range Setting Unit Factory Setting Setting Validation
0 to 5100 0.1 ms 0 Valid when DEN = 1
Position
Pn812 Movement Average Position Reference Filter Movement
Average Time
Setting Range Setting Unit Factory Setting Setting Validation
0 to 5100 0.1 ms 0 Valid when DEN = 1
Position
