7 Operation

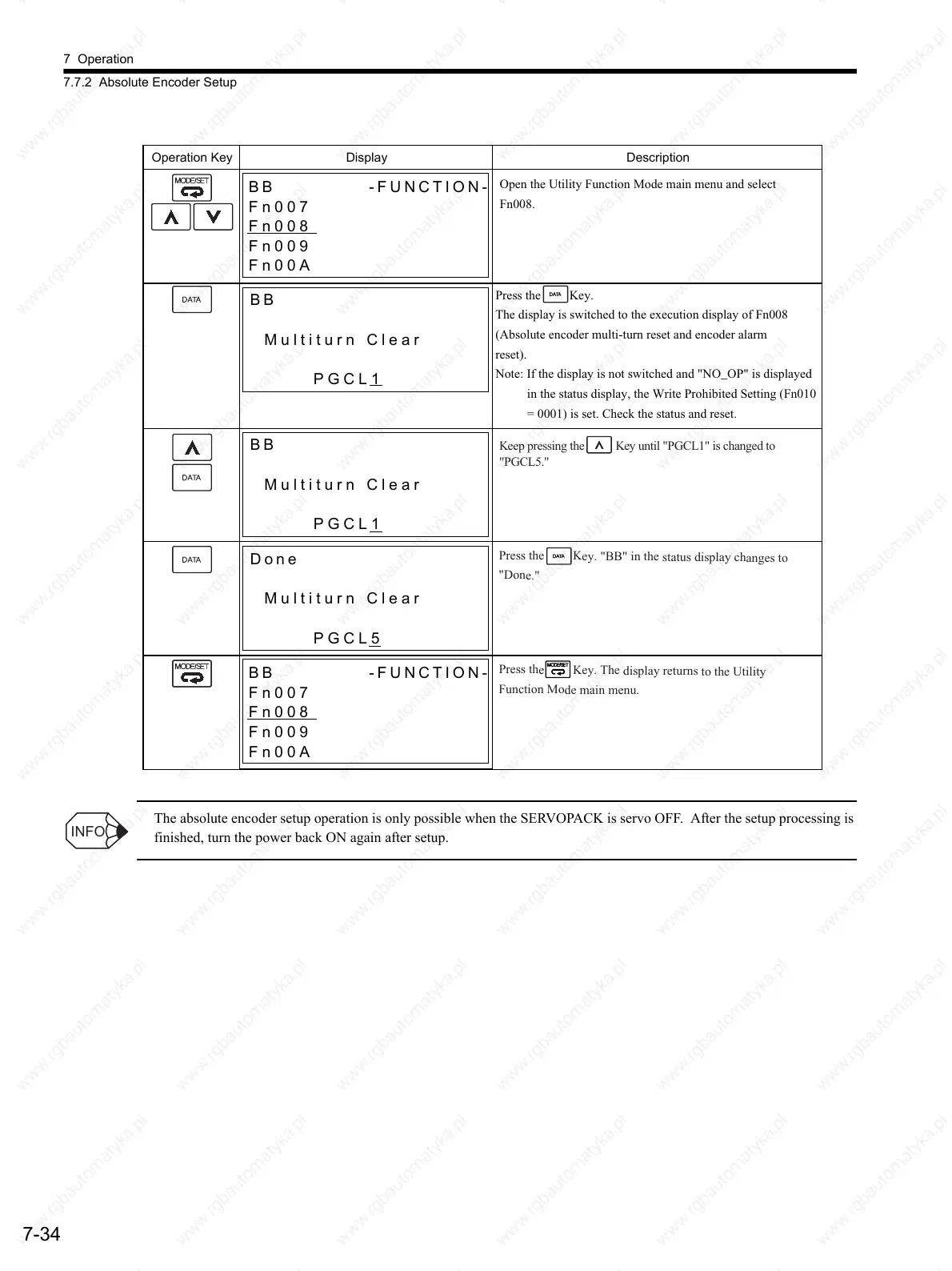

7.7.2 Absolute Encoder Setup
7-34
The absolute encoder setup operation is only possible when the SERVOPACK is servo OFF. After the setup processing is
finished, turn the power back ON again after setup.
BB -FUNCTION-
Fn007
Fn008
Fn009
Fn00A
BB
Multiturn Clear
PGCL1
BB
Multiturn Clear
PGCL1
Done
Multiturn Clear
PGCL5
Operation Key DescriptionDisplay
Open the Utility Function Mode main menu and select
Fn008.
BB -FUNCTION-
Fn007
Fn008
Fn009
Fn00A
Press the Key.
The display is switched to the execution display of Fn008
(Absolute encoder multi-turn reset and encoder alarm
reset).
Note: If the display is not switched and "NO_OP" is displayed
in the status display, the Write Prohibited Setting (Fn010
= 0001) is set. Check the status and reset.
Keep pressing the Key until "PGCL1" is changed to
"PGCL5."
Press the Key. "BB" in the status display changes to
"Done."
Press the Key. The display returns to the Utility
Function Mode main menu.
INFO
